B&K Precision BCS6402 | Battery Simulator, Bidirectional DC Source/Load, 1 Channel, 150 W, BCS Series

Manufacturer number: BCS6402

BCS6402
BCS6402
BCS6402
BCS6402
BCS6402
BCS6402
BCS6402
BCS6402
BCS6402
BCS6402
Delivery time upon request

€4,250.00

plus VAT. €5,057.50 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision BCS6402 | Battery simulator, bidirectional DC source/load, 1 channel, 150 W, BCS series.

Technical Data

Documents & Downloads

Datasheet
pdf | 2.03 MB
Datasheet
pdf | 2.03 MB

Description

BCS6402 | Battery Simulator, Bidirectional DC Source/Load, 1 Channel, 150 W, BCS Series

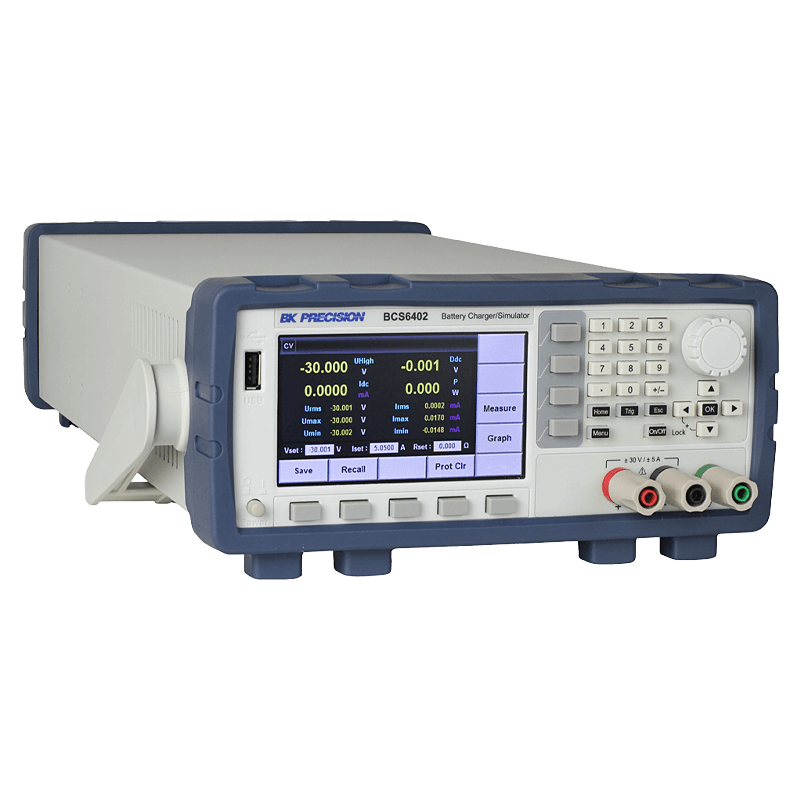

The B&K Precision BCS6402 is a powerful battery simulator, DC power supply and battery charger/discharger specifically designed for test applications with batteries and battery-powered devices. Thanks to its bidirectional capabilities, it can act as a current source or sink and enables comprehensive charging, discharging and simulation processes.

The Variant BCS6402 presented here has a maximum output of 150 W and can supply or absorb up to 5 A of current. It is suitable for applications with higher power requirements. The Variant BCS6401 offers two independent channels, allowing simultaneous charging and discharging. However, it only has 90 W.

Product features:

  • Channels: 1
  • Max. Voltage: 0 to 15 V
  • Max. Current: 5 A
  • Max. Power: 150 W
  • Variable output impedance: 0 Ω to 1 Ω
  • Measurement resolution: Current: up to 100 nA, voltage: 1 mV
  • Display: 4.3-inch color TFT
  • Communication: USB (USBTMC), LAN (SCPI compatible)
  • Protection mechanisms: overvoltage, overcurrent and overtemperature protection

Application areas:

  • Testing and development of smartphones, tablets and wearables
  • Testing and simulation of chargers and charging electronics
  • Evaluation of DC-DC converters
  • Simulation of different charging states and internal resistances for research purposes
  • Characterization of battery and energy storage solutions

Alternate products

Alternate products

BCS6401
Series
Series
B&K Precision
BCS6401
Battery Simulator, Bidirectional DC Source/Load, 2 Channel, 90 W, BCS Series
Delivery time upon request
€4,100.00
