B&K Precision 9115B | Programmable DC Power Supply Unit, Multi-Range, 80 V, 60 A, 1200 W, USB, RS-232, LAN, 9115 Series

Manufacturer number: BK9115B

9115B
9115B
9115B
9115B
9115B
9115B
Delivery time upon request

€2,260.00

plus VAT. €2,689.40 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

B&K Precision 9115B | Programmable DC power supply unit, multi-range, 80 V, 60 A, 1200 W, USB, RS-232, LAN, 9115 series.

Produktmerkmale:

  • Maximale Ausgangsspannung: 80 V
  • Maximaler Ausgangsstrom: 60 A
  • Maximale Ausgangsleistung: 1200 W
  • Betriebsmodi: Multi-Range mit flexibler Spannungs-/Stromkombination
  • Spannungsregelung: ≤ 0,01% + 5 mV (Last), ≤ 0,02% + 1 mV (Netz)
  • Stromregelung: ≤ 0,1% + 10 mA (Last), ≤ 0,02% + 1 mA (Netz)
  • Wellen und Rauschen: ≤ 60 mVpp (Spannung), ≤ 100 mArms (Strom)
  • Anzeige: Digitales VFD-Display für Spannung, Strom und Leistung
  • Speicher: Speicherung von bis zu 100 Geräteeinstellungen
  • Programmierbare Schutzfunktionen: OVP (Überspannungsschutz), OCP (Überstromschutz), OTP (Übertemperaturschutz)
  • Schnittstellen: USB, RS232, RS485
  • Paralleler Betrieb: Master/Slave-Modus für höhere Ströme oder Spannungen
  • Abmessungen (BxHxT): 414,5 x 44,5 x 483,2 mm (1U-Rackmount)
  • Gewicht: 8,5 kg
  • AC-Eingang: 115/230 VAC ± 10 %, 47 Hz bis 63 Hz

Technical Data

Documents & Downloads

Datasheet
pdf | 2.15 MB

Description

9115B | Programmable DC Power Supply Unit, Multi-Range, 80 V, 60 A, 1200 W, USB, RS-232, LAN, 9115 Series

The 9115B series from B&K Precision comprises high-performance, programmable multi-range DC power supplies that enable flexible voltage and current adjustment. This series is characterized by its multi-range technology, which allows maximum power to be dynamically distributed across different voltage and current combinations. This means that a single device can replace several conventional power supplies and save valuable space at the workstation or in the test system.

The series is particularly suitable for professional test and development laboratories that require programmable voltage rise and fall times, sequence programming and high measurement resolution. It also offers numerous interfaces for remote control and data acquisition.

Typical areas of application:

  • Electronics development and research
  • Production and quality assurance tests
  • Automotive electronics tests (model-dependent)
  • Simulation of grid and load conditions
  • Industrial test and measurement applications

The model 9115B is an advanced multi-range DC power supply with a maximum output voltage of 80 V and a maximum current of 60 A. The maximum power is 1200 W. The multi-range function allows the device to provide different voltage and current values without exceeding the maximum power.

Differences to other variants of the 9115 series:

  • The model 9115B offers 80 V / 60 A with a maximum power of 1200 W.
  • The model 9115B-AT is optimized for automotive test applications and supports special test sequences according to DIN 40839 and ISO 16750-2.
  • The 9116B model offers a higher maximum voltage of 150 V at a maximum of 30 A.
  • In contrast to the 9115 model, the 9115B variant does not have a GPIB interface.

The 9115B model offers a powerful, compact and versatile solution for laboratories, research facilities and industrial testing. Its multi-range technology, programmable protection mechanisms and comprehensive remote control make it ideal for a wide range of test and development applications.

Alternate products

Alternate products

9115
Series
Series
B&K Precision
9115
Programmable DC Power Supply Unit, Multi-Range, 80 V, 60 A, 1200 W, USB, RS-232, LAN, GPIB, 9115 Series
1 in stock. Ready to ship in 1 business day
€2,460.00
9115-at
Series
Series
B&K Precision
9115-at

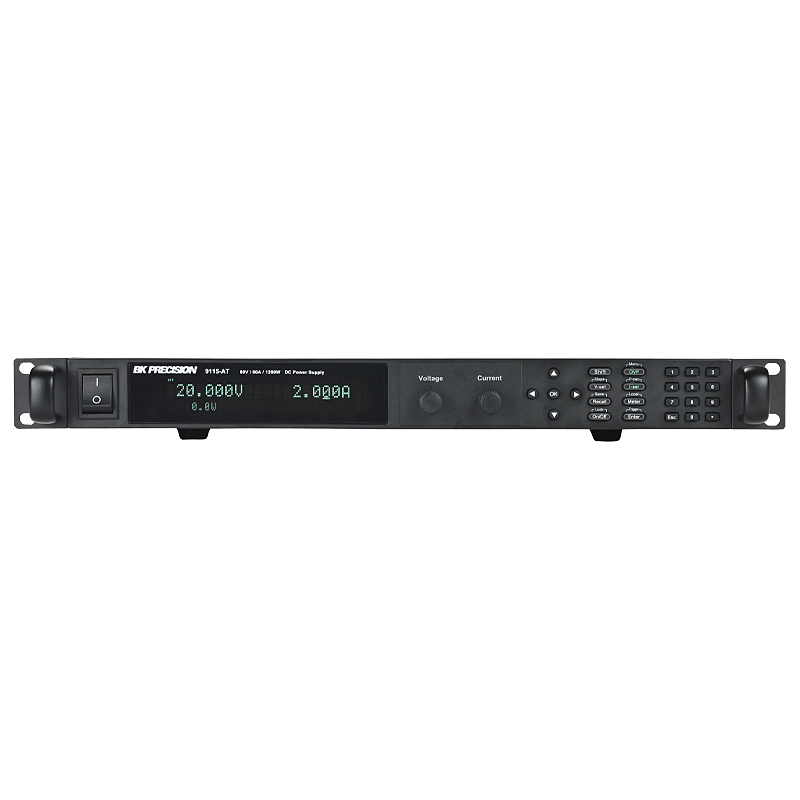

Programmable DC Power Supply Unit, Multi-Range, Automotive Test, 80 V, 60 A, 1200 W, USB, RS-232, LAN, GPIB, 9115 Series
Delivery time upon request
€3,125.00
9116
Series
Series
B&K Precision
9116

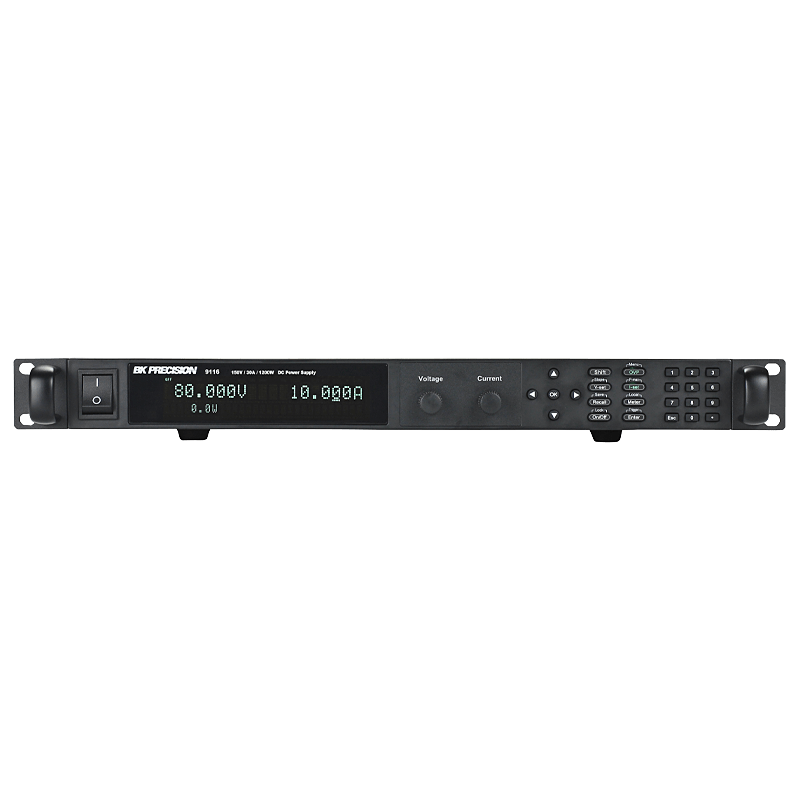

Programmable DC Power Supply Unit, Multi-Range, 150 V, 30 A, 1200 W, USB, RS-232, LAN, GPIB, 9115 Series
