SEFRAM DAS60 | Data logger / recorder, 6-channel + 2x Pt100 / Pt1000, 1 μs, 64 GB, touchscreen

Name: DAS60 | Data logger / recorder, 6-channel + 2x Pt100 / Pt1000, 1 μs, 64 GB, touchscreen
Brand: SEFRAM
SKU: DAS60
Price: 6800.0 EUR
Availability: InStock

Manufacturer number: DAS60

5 in stock. Ready to ship in 1 business day

€6,800.00

plus VAT. €8,092.00 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.

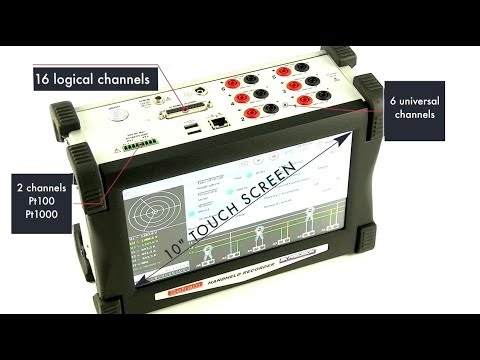

Sefram DAS60 | 6-channel data logger with touch screen for data logging and performance analysis up to 400 Hz with an adjustable sampling rate / sample rate from 1µs to 10 minutes depending on the application.

6 isolated analog channels
Double insulation between ground and measuring channel:> 100 MΩ to 500 V DC.
Universal inputs: 1mV to max. 1000 V (-500 V to +500 V)
DC, DC + AC RMS voltage measurement
Integrated frequency measurement and counter
2 channels for thermocouples and Pt100 / Pt1000 temperature sensors (2-, 3- and 4-wire)
16 digital input channels
Resolution: 14 bits
Sampling rate: 1 MS / s
Bandwidth: 100 kHz
Scanning: Fastest scanning 1 μs to max. 10 min . Sampling period
Power analysis function up to 400 Hz / XY and FFT display
64 Gb internal memory for measurements / results
USB interface for ext. Storage
LAN interface for transferring the measured values to the PC
Interfaces: 2 x USB, Ethernet
LCD touch screen with 24.5 cm (10 inch) screen diagonal, 1024 x 600 dots
Language adjustable via menu: German, French, Spanish, English, Italian, Swedish
Lithium ion battery
Battery life: up to 9.5 hours
Security: IEC 1010 - CAT III 600V
Thermal printer 110 mm width available (optional)
Dimensions: Width: 295 x Height: 210 x Depth: 105 mm
Weight: 2.5 kg
Warranty: 2 years

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy temperature:	Referenzkaltstellenkompensation ±1,25°C
Accuracy voltage measurement:	± 0,1% of range ; ± 10µV / ± 0,1% offset
Alarm outputs:	2
Article number:	DAS60
Connection types:	digitale Eingangskanäle
Dimensions (L x W x H) (mm):	105 x 295 x 210
Display:	10" TFT Touchdisplay
Interfaces:	Ethernet, USB
Max. battery life:	9,5h
Measured value memory:	64GB
Model:	DAS60
Number of channels:	6
Resolution (bit):	14
Special features:	20 automatische Messungen optional: Thermischer Drucker 110mm-Breite
Temperature sensors Types:	Thermoelement, Pt100/Pt1000
Voltage measuring range:	1 mV to 1000 V
Warranty (years):	2
Weight (kg):	2.5

Detaildescription

DAS60 | Data logger / recorder, 6-channel + 2x Pt100 / Pt1000, 1 μs, 64 GB, touchscreen

The robust portable multi-function data logger DAS60 is suitable for all data recordings occurring in the industrial environment . The measurement data can be checked / displayed on the integrated display both in the form of a curve and as a number. The data is continuously written to the internal memory or to a USB memory stick during data acquisition. The data can be transferred to a computer using the Sefram software. The device fulfills the safety requirements according to: IEC61010, CAT.III 600V.

The large LCD touch screen display enables a simple and clear display of the measurement menus as well as a razor-sharp display of the recorded data / curve profiles. It can also be used to transfer data.

Areas of application for this data logger include: error diagnosis / recording during maintenance, measurement of voltage, current, temperature in / on electrical systems, performance analysis for 1- and 3-phase systems up to 400 Hz.

Lieferumfang

operation manual
Help CD with software and notes
Mains charger
25-pin plug inserts
Housing shell for plugs
Set with red and black cables + alligator clips + banana plugs
Transport case
