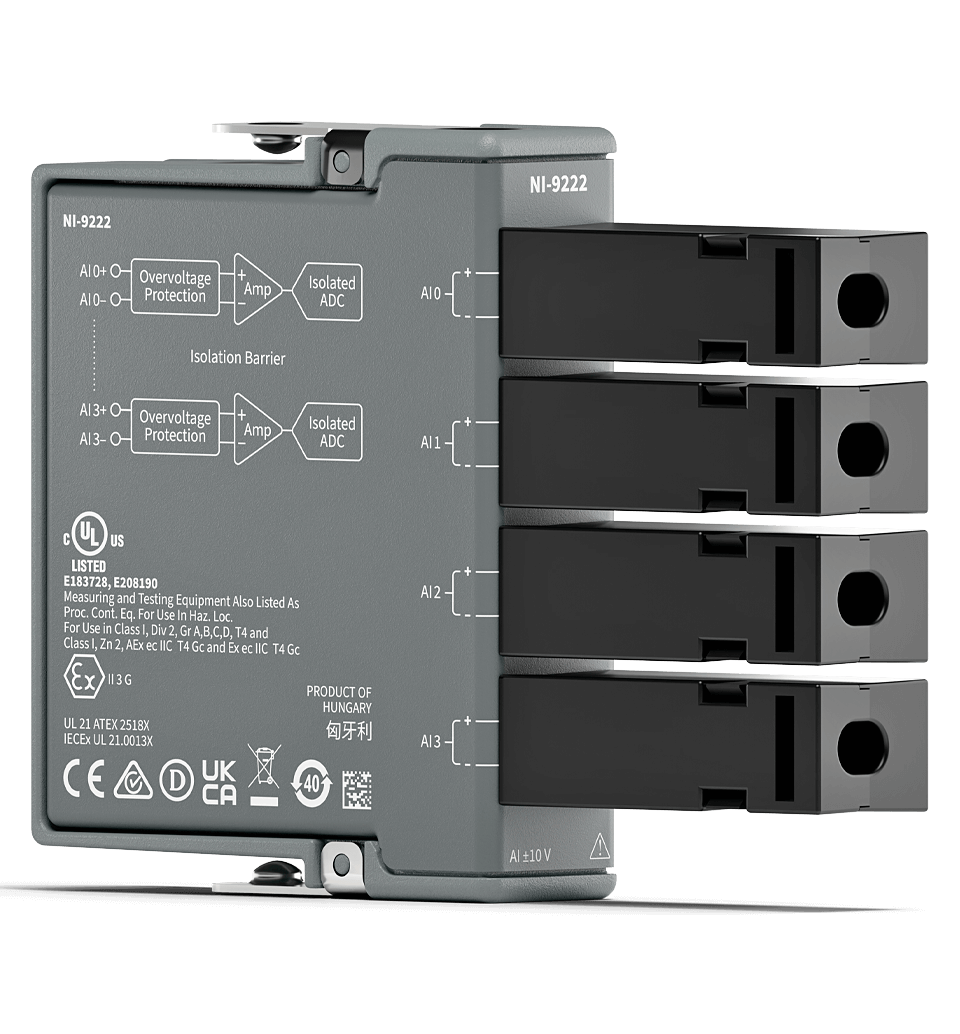

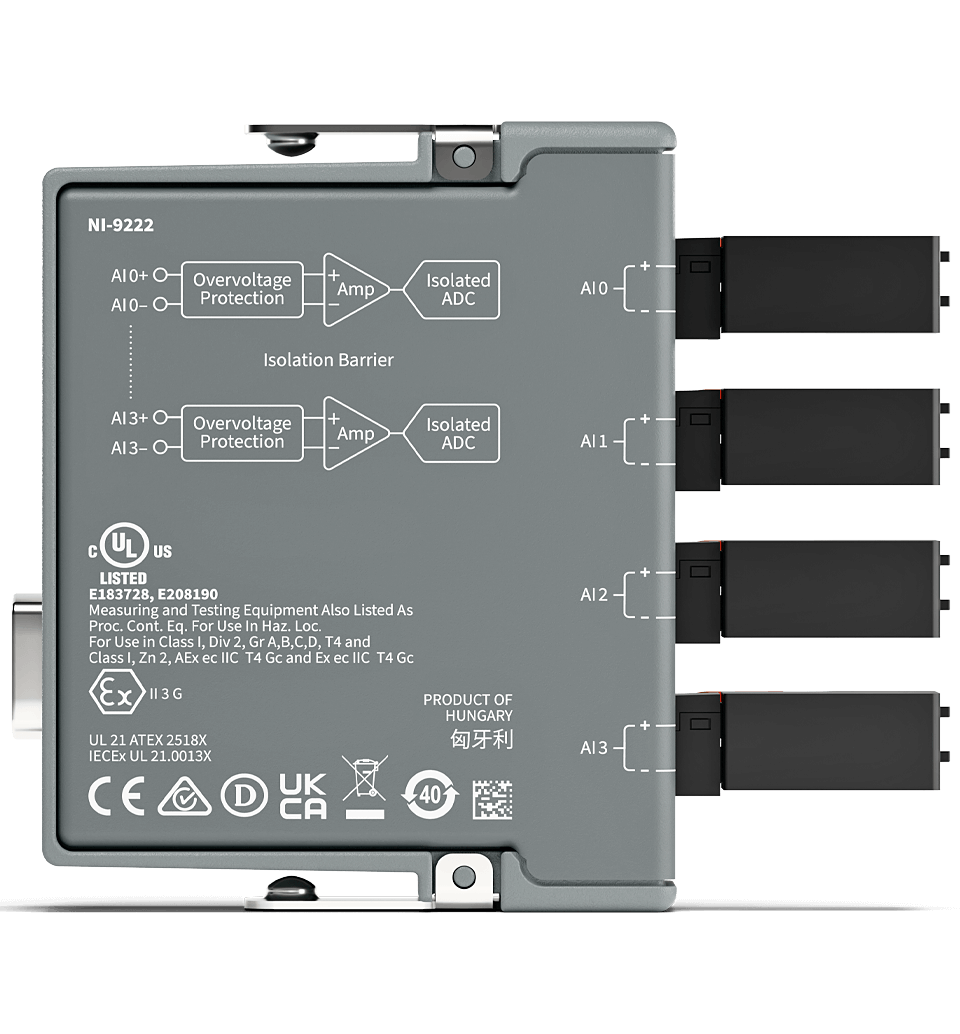

NI 789124-01 | NI 9222 Snap-In, C-Series analog input module for simultaneous sampling, 4 channels, 500 kS/s, 16 bit, +/-10 V

Manufacturer number: 789124-01

789124-01
789124-01
789124-01
789124-01
789124-01
789124-01
789124-01
789124-01
Delivery time upon request

€1,410.00

plus VAT. €1,677.90 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Share
Highlights Documents / Downloads Description Related Articles

NI 789124-01 | NI 9222 Snap-In, analog input module of the C series for simultaneous sampling, 4 channels, 500 kS/s, 16 bit, +/-10 V.

Product features:

  • Maximum number of differential analog input channels: 4
  • Protective coating: No
  • Voltage measurement range of the analog input: -10 V to 10 V
  • With housing: Yes
  • Resolution of the analog input: 16 bit
  • Maximum sampling rate: 500 kS/s per channel
  • Insulation of the analog input: 60 VDC channel to channel isolation
  • Maximum number of ground referenced analog input channels: 0
  • Simultaneous sampling: yes
  • Supported hardware platform: C series

Documents & Downloads

Brochure
pdf | 1.24 MB
Overview
pdf | 0.25 MB
Datasheet
pdf | 0.15 MB

Description

789124-01 | NI 9222 Snap-In, C-Series analog input module for simultaneous sampling, 4 channels, 500 kS/s, 16 bit, +/-10 V

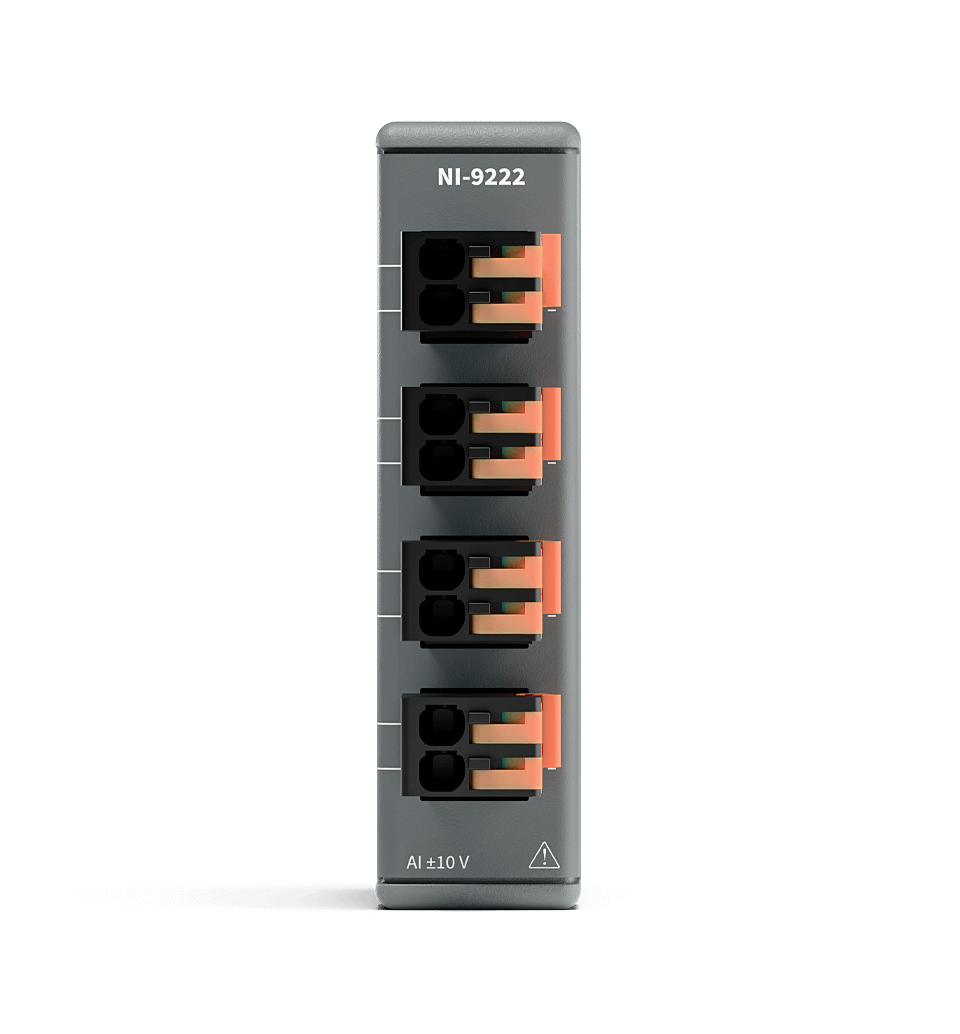

The NI-9222 is used for differential analog acquisition. The module is suitable for applications such as ballistics, impact and pressure wave tests. The NI-9222 can sample at the maximum sample rate per channel, while the neighboring module in the chassis samples at a significantly lower rate. The module is therefore ideal for test systems with mixed measurements. The NI-9222 offers three connector options: a 10-pin screw connector, a 25-pin D-SUB connector or a 2-pin BNC connector.
