NI 785813-01 | PCIe-6346, multifunction I / O card: 8 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO

Name: 785813-01 | PCIe-6346, multifunction I / O card: 8 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO
Brand: NI
SKU: 785813-01
Price: 2690.0 EUR
Availability: InStock

Manufacturer number: 785813-01

2 in stock. Ready to ship in 1 business day

€2,690.00

plus VAT. €3,201.10 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.

NI 785813-01 | PCIe-6346, multifunction I / O card: 8 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO.

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Absolute accuracy of the AI (microV):	3225
Bustype:	PCI Express
Connection type front:	68-Pin, Weiblich VHDCI
Max. Number of differential analogue input channels:	8
Max. Number of ground-related analogue input channels:	0
Max. Update rate (MS/s):	0.9
Measured electrical signal:	Voltage
Measurements per second/sampling rate (MS/s):	0.5
Number of analogue output channels:	2
Number of bidirectional digital channels:	24
Number of counters/timers:	4
Protectively coated:	Nein
Resolution of the analogue input:	16 bit
Samplerate:	500 kS/s pro Kanal
Simultaneous scanning:	Ja
Voltage measuring range of the analogue input (V):	-5 V bis 5 V, -2 V bis 2 V, -10 V bis 10 V, -1 V bis 1 V
With case:	Ja

Documents & Downloads

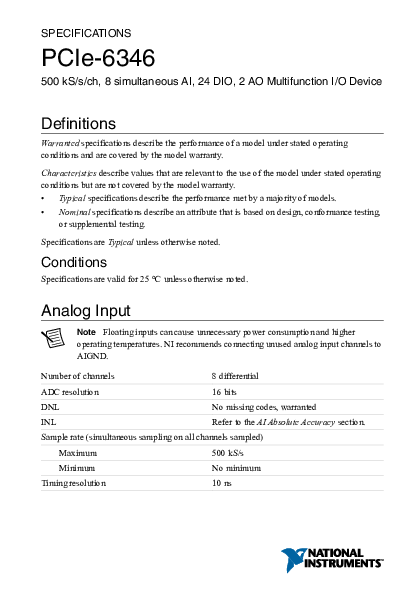

Datasheet

pdf | 0.34 MB

Detaildescription

785813-01 | PCIe-6346, multifunction I / O card: 8 AI with simultaneous sampling (500 kS / s per channel, 16 bit), 2 AO, 24 DIO

The PCIe-6346 has analog I / O, digital I / O and four counters / timers with 32 bit resolution for pulse width modulation, encoder and frequency measurements, event counting, etc. The module offers powerful functions with the high-throughput PCI Express bus and a Driver and application software optimized for multi-core execution. The multi-ADU architecture of the device enables simultaneous sampling. The integrated NI-STC3 technology for time control and synchronization offers extended timing functions, such as independent engines for analog and digital timing as well as retriggerable measurement tasks. The PCIe-6346 is suitable for a wide variety of applications, from basic data logging to open-loop and closed-loop control and test automation. The NI-DAQmx driver with configuration program included in the scope of delivery simplifies the configuration and the execution of measurements.

Product features:

With housing: yes
Bus type: PCI Express
Maximum number of ground-related analog input channels: 0
Maximum number of differential analog input channels: 8
Simultaneous sampling: Yes
Maximum sampling rate: 500 kS / s per channel
Resolution of the analog input: 16 bit
Absolute accuracy of the analog input: 3225 μV
Number of analog output channels: 2
Maximum update rate: 900 kS / s
Number of bidirectional digital channels: 24
Number of counters / timers: 4
Connection type front: VHDCI
Supported input power: -
Isolation of the analog input: -
Analog input FIFO buffer size: 4095 samples

Accessoires (4 products )

NI 960462-01

Traceable Calibration Certificate for PCIe-6346 (785813-01-CAL)

Delivery time upon request

€275.00

NI 960462-04

ISO 17025 Calibration Certificate for PCIe-6346 (785813-01-ISO)

Delivery time upon request

€545.00

NI 960680-101

Standard Service Program (SSP) for PCIe-6346 with Traceable Calibration, 3 Years (785813-01-SC3)

Delivery time upon request

€556.15

NI 960462-03

ANSI Compliant Calibration Certificate for PCIe-6346 (785813-01-ANSI)

Delivery time upon request

€425.00
