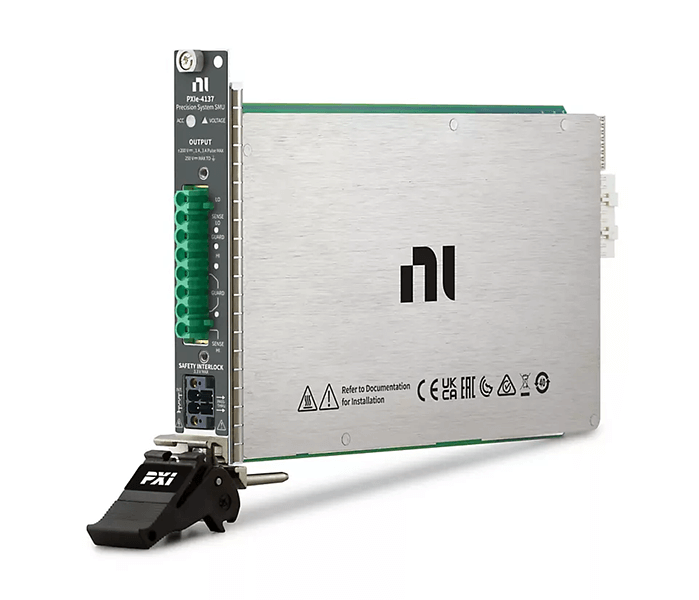

NI 783761-01 | NI PXIe-4137, System SMU, 200 V, with NI SourceAdapt

Manufacturer number: 783761-01

783761-01
783761-01
783761-01
Delivery time upon request

€9,950.00

plus VAT. €11,840.50 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

783761-01 | NI PXIe-4137, System SMU, 200 V, with NI SourceAdapt.

Technical Data

Documents & Downloads

Catalog
pdf | 2.54 MB
Brochure
pdf | 1.86 MB
Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

783761-01 | NI PXIe-4137, System SMU, 200 V, with NI SourceAdapt

The PXIe-4137 is a high-precision system SMU (Source Measure Unit). It has four-quadrant operation, delivers a DC power of max. 20 W and a pulse power of up to 500 W. The analog-to-digital converters and integrated triaxial connectors enable high-precision measurements with a current resolution of 100 fA and fast data acquisition with up to 1.8 MS / s. The module also ensures maximum stability and measurement accuracy using SourceAdapt technology, which enables the transient behavior to be individually adapted to the properties of any load. The PXIe-4137 is suitable for a wide range of applications including manufacturing testing, board-level testing, and laboratory characterization using devices such as ICs, PMICs, and RFICs, as well as discrete components such as LEDs and optical transceivers.

Product features:

  • Number of SMU channels: 1
  • Maximum DC source power: 20 W.
  • Maximum DC sink power: 12 W.
  • Voltage measuring range: -200 V to 200 V
  • Current sensitivity: 100 fA
  • SourceAdapt: Yes
  • With auxiliary power supply: -
  • DC current range: -1 A to 1 A.
  • Pulsed current range: -3 A to 3 A.

Accessoires

Accessoires

960453-04
NI
960453-04
ISO 17025 Calibration Certificate for PXIe-4137 (783761-01-ISO)
Delivery time upon request
€780.00
960453-01
NI
960453-01
Traceable Calibration Certificate for PXIe-4137 (783761-01-CAL)
Delivery time upon request
€365.00
960453-03
NI
960453-03
ANSI Compliant Calibration Certificate for PXIe-4137 (783761-01-ANSI)
Delivery time upon request
€595.00
960680-101
NI
960680-101
Standard Service Program (SSP) for PXIe-4137 with Traceable Calibration, 3 Years (783761-01-SC3)
Delivery time upon request
€1,891.00
