Langer EMV E2 Set | Development system for interference immunity analysis of electronic assemblies and systems with TS 23 pulse generator.

Technical Data

Weight (kg):	0

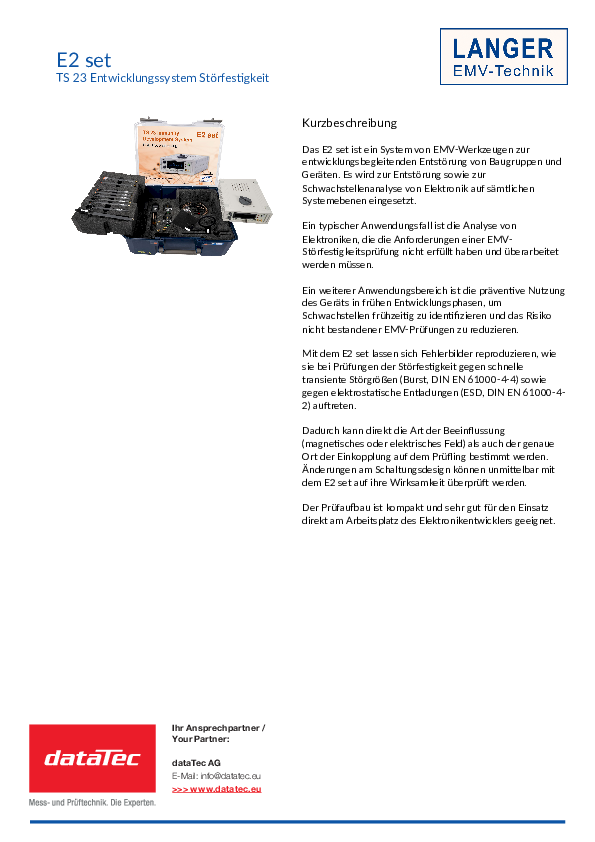

Description

E2 Set | Development system for interference immunity analysis with TS 23 pulse generator

The E2 Set from Langer EMV-Technik is a comprehensive development system for the immunity analysis of electronic assemblies and systems. Specifically designed for pre-compliance immunity testing, it helps developers identify and resolve electromagnetic interference early on. Through the reproducible simulation of ESD-induced failure patterns under controlled conditions, the E2 Set enables efficient troubleshooting and precise vulnerability analysis at all integration levels – from individual assemblies to the complete system.

Typical applications of the E2 Set from Langer EMV-Technik include the development and optimization of electronic systems with regard to their electromagnetic compatibility (EMC). The system is particularly suitable for analyzing ESD immunity according to IEC 61000-4-2 and for targeted troubleshooting of interference sources in complex circuits.

It supports developers in investigating interference current paths, the coupling of electric and magnetic fields, and the simulation of realistic interference loads in various application scenarios. At the heart of the E2 Set is the powerful TS 23 pulse generator, which produces ESD-like interference pulses with a very fast rise time of 1.5 ns. This high slope enables particularly effective coupling of the interference pulses into the device under test. The system is complemented by a comprehensive set of adapters, field sources, probes, and accessories that allow for precise and flexible coupling of the interference signals. The E2 Set from Langer EMV-Technik offers various operating modes such as continuous operation, pulse groups, ramp function, and external triggering, thus ensuring high reproducibility and adaptability during troubleshooting. Of particular note is the ability to specifically analyze individual faults and to simulate realistic fault scenarios.

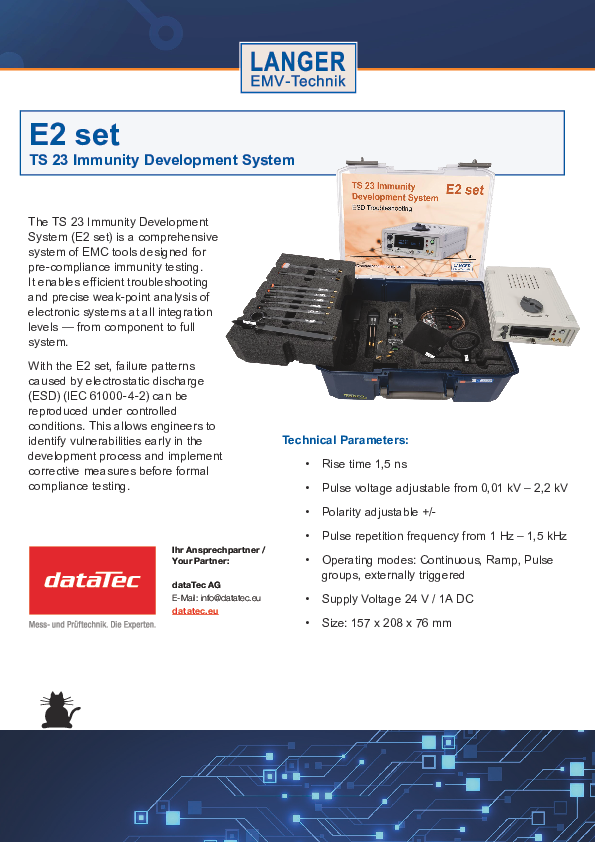

Product features:

Rise time: 1.5 ns
Pulse voltage adjustable from 0.01 kV to 2.2 kV
Adjustable polarity: positive / negative
Pulse repetition rate: 1 Hz to 1.5 kHz
Operating modes: continuous, ramp, pulse groups, externally triggered
Supply voltage: 24 V / 1 A DC
Dimensions: 157 x 208 x 76 mm
Includes TS 23 pulse generator as core element
Extensive scope of delivery with adapters, Field sources, probes and accessories

About the Manufacturer

LANGER

Langer EMV Technik was founded in 1998. The company is one of the top specialists in the field of electromagnetic compatibility (EMC).
