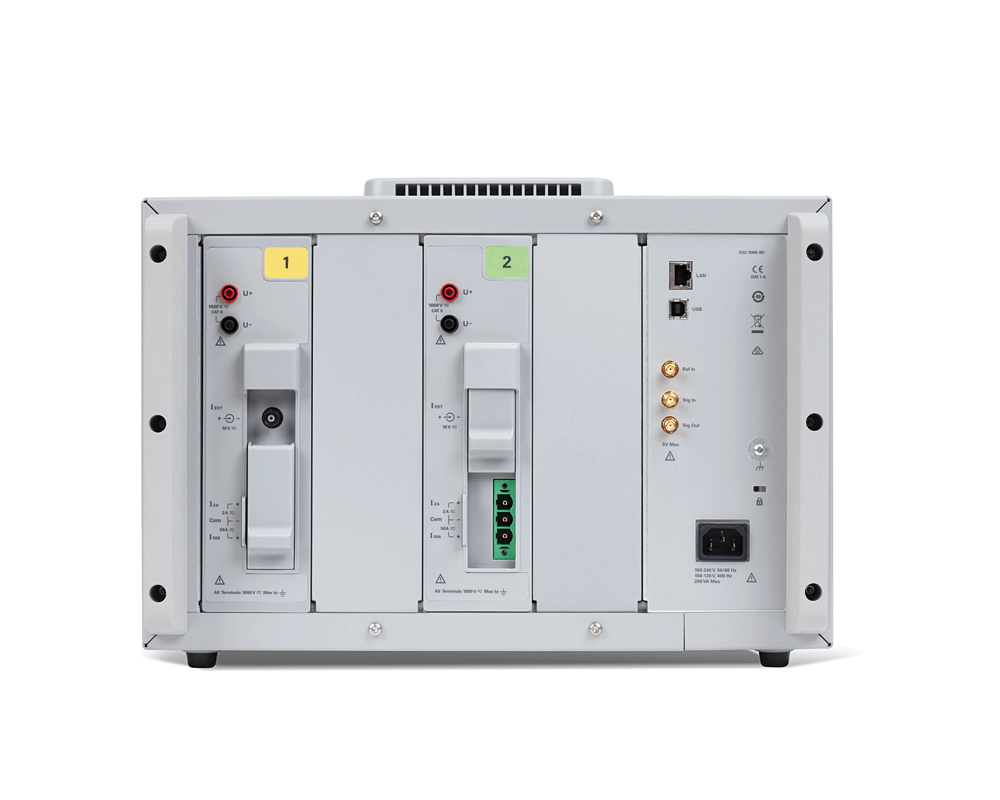

Keysight PA2201A | IntegraVision Power Analyzer, 2 channel, 1 phase

Manufacturer number: PA2201A

Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A
Keysight PA2201A

Delivery time upon request

On Request

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Highlights Documents & Downloads Description Related Articles

Keysight PA2201A | IntegraVision Power Analyzer / power analyzer, 2 channels, 1 phase.

  • Use like an oscilloscope
  • 1-phase system
  • 2 channel version
  • Measures AC and DC voltages
  • 16 bit resolution
  • 0.05% basic accuracy
  • 2MHz bandwidth
  • Direct current measurement up to 30 A
  • 1000V isolation voltage
  • Suitable for measuring power from mW to 100 kW
  • Measurement of the performance parameters of a supply unit
  • Measurement of voltage, current
  • Measurement of frequency, phase and harmonics
  • Dimensions: W 426 x H 259 x D 254 mm

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.40 MB
Userguide
pdf | 4.46 MB

Detaildescription

PA2201A | IntegraVision Power Analyzer, 2 channel, 1 phase

The Keysight PA2201A IntegraVision Power Analyzer is a 2-channel power analyzer for single-phase alternating current. It measures power parameters and displays voltage, current and power curves in real time. With a basic accuracy of 0.05% and a power accuracy of 0.1%, it is ideal for R&D engineers who need to quickly and interactively calculate AC and DC power consumption, power conversion efficiency, operational response to stimuli, and common AC power parameters such as frequency , phase and harmonics.

Visualize transients, inrush currents and state changes with a high-speed digitizer with the PA2201A. It enables the analysis of voltage, current and power in the time and frequency domain. The PA2201A features a 12.1-inch touchscreen and offers the flexibility of long-range, isolated inputs to handle multiple test scenarios.

Product features:

  • Basic accuracy (50/60 Hz): 0.05%
  • Best Power Accuracy: 0.1%
  • Channels: 2
  • Maximum current direct input: 2A / 6A peak
  • Phase: AC 1
