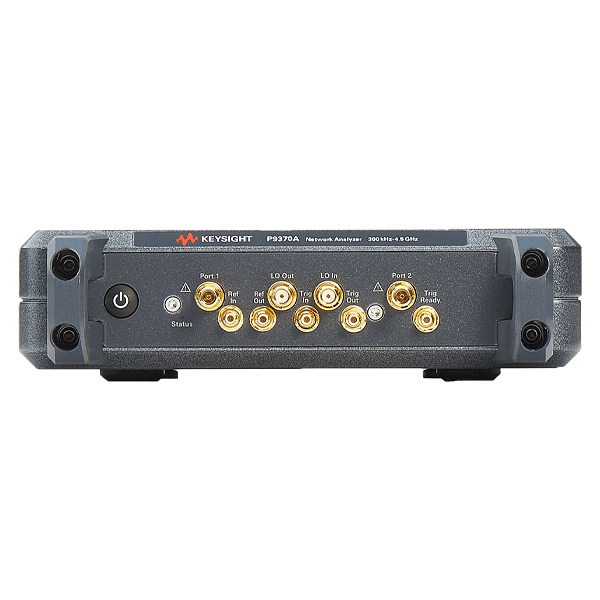

Keysight P9370A | USB vector network analyzer P9000 series for PC, 2- / 4-port, 300 kHz to 4.5 GHz

Name: P9370A | USB vector network analyzer P9000 series for PC, 2- / 4-port, 300 kHz to 4.5 GHz
Brand: Keysight
SKU: P9370A
Availability: InStock

Manufacturer number: P9370A

Delivery time upon request

On Request

or choose one of the following options:

Request a quote Product inquiries Request education-price

Keysight Streamline P9370A | USB vector network analyzer, 2/4-port, 300 kHz to 4.5 GHz.

2-port USB vector network analyzer
Frequency range: 300 kHz to 4.5 GHz
Compact USB design with high-speed USB 3.0 connection
Six available bandwidth options for optimal adaptation to your measurement applications
Possibility to expand to 4 ports (2x P937xA)
Frequency and software upgrades possible at any time
Familiar graphical user interface and measurement functionalities as with other Keysight VNA
Compatible with ECal for quick and easy calibration
High measuring speed of 24 msec (201 measuring points with calibrated 2-port measurement and an intermediate frequency bandwidth of 100 kHz)
Accuracy: ± 1 ppm
Dynamic range:> 114 dB at 9 GHz,> 110 dB at 20 GHz (10 Hz ZW bandwidth)
Trace noise: <0.003 dBrms (1 kHz IF bandwidth)
Temperature stability: 0.005 dB / ° C
Weight: 1.9 kg
Dimensions: 176 x 48 x 333 mm (W x H x D)
Compatible operating systems: Windows 7 or Windows 10 (64 bit)

Technical Data

Article number:	P9370A
Crosstalk:	Yes
Dimensions (L x W x H) (mm):	333 x 176 x 48
Display:	1024 x 768 minimum, external
IF-BW:	1 Hz - 1.2 MHz
Input impedance:	50 Ω
Interfaces:	USB, SMB
Measuring speed for 201 points:	0,024 s
Min. output power:	-5 dBm
Model:	P9370A
Number of ports:	2
Special features:	Vector network analyzer, Control via external PC
Warranty (years):	3
Weight (kg):	1.9
max. frequency (GHz):	4.5
min. frequency (kHz):	300

Description

P9370A | USB vector network analyzer P9000 series for PC, 2- / 4-port, 300 kHz to 4.5 GHz

Exceptional performance in a compact design: The new 2-port ( possibility to expand to 4 ports ) USB network analyzers (VNA) of the Streamline series P937xA from Keysight offer high performance and user-friendliness in a space-saving USB design. It is controlled via an external PC, which enables particularly powerful data processing and extensive application functions.

Examples of use:

Manual inspection of passive components (e.g. antennas, filters, cables, connectors, adapters)
Manufacturing-related tests for wireless components as well as in the aerospace industry
Standard-compliant design validation

The compact 2-port USB vector network analyzer P9370A with a bandwidth of 300 kHz to 4.5 GHz fulfills demanding measurement requirements e.g. B. in terms of dynamic range, measuring speed, trace noise or temperature stability. The firmware used is based on the same intuitive user interface as other Keysight network analyzers, which reduces the cost of changing devices.
