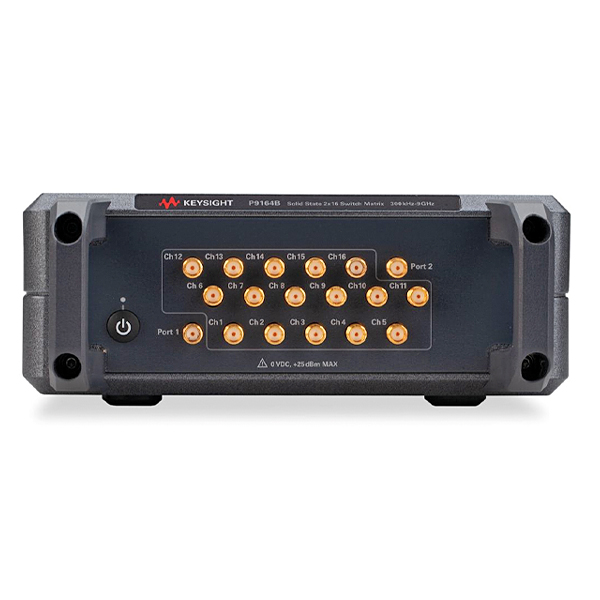

Keysight P9164B | USB Solid State Switch Matrix 2x16, 300 kHz - 9 GHz

Manufacturer number: P9164B

Keysight P9164B
Keysight P9164B
Keysight P9164B
Keysight P9164B
Keysight P9164B
Keysight P9164B
Keysight P9164B
Keysight P9164B

Delivery time upon request

On Request

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Request educational price
Highlights Documents & Downloads Description Related Articles

Keysight P9164B | 2x16 USB Solid State Switch Matrix, 300 kHz… 9 GHz.

  • Frequency range: 300 kHz - 9 GHz
  • Configuration: 2 x 16 full crossbar
  • Isolation (dB): 300 kHz - 2 GHz: 87 || 2 - 9 GHz: 85
  • Maximum input power: 25 dBm
  • Typical switching speed (10% trigger - 90% output): 50 us
  • HF connection: SMA (f)
  • Dimensions (H x W x D): 68.2 mm x 176 mm x 332.8 mm
  • Weight: 2.65 kg

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 0.78 MB

Detaildescription

P9164B | USB Solid State Switch Matrix 2x16, 300 kHz - 9 GHz

Despite its compact design, the Keysight P9164B 2x16 USB Solid State Switch Matrix, 300 kHz to 9 GHz is a full crossbar switching matrix that enables you to perform multi-DUT or multi-port measurements, such as 5G solid MIMO antenna measurements.

The Keysight P916xA / B / C series semiconductor switches are compact and portable. Thanks to the exceptional RF performance of solid state switches, you can trust your measurements. You get reliable and repeatable results while reducing the overall cost of the test.

Product features:

  • The Keysight Solid State Switches of the P916x A / B / C series cover a frequency range from 300 kHz to 18 GHz (depending on the variant)
  • Expand the number of test ports for multi-DUT or multiport measurements
  • Portable and compact - perfect for use in multiple locations
