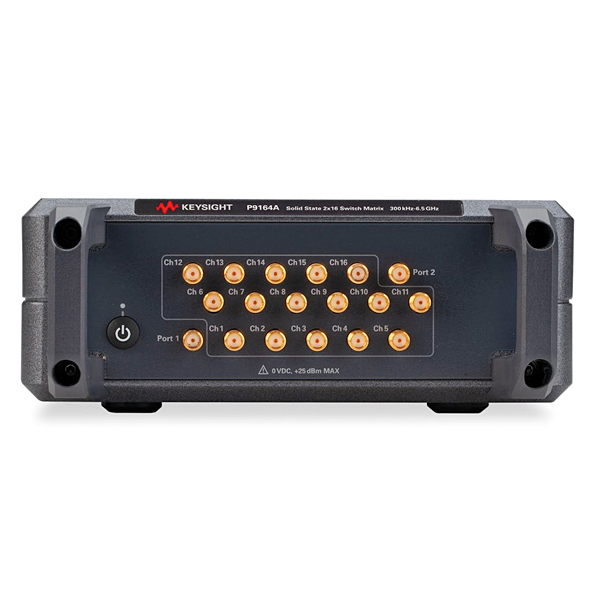

Keysight P9164A | USB Solid State Switch Matrix 2x16, 300 kHz - 6.5 GHz

Manufacturer number: P9164A

P9164A
P9164A
P9164A
P9164A
P9164A
P9164A
P9164A
P9164A
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Keysight P9164A | 2x16 USB Solid State Switch Matrix, 300 kHz… 6.5 GHz.

  • Frequency range: 300 kHz - 6.5 GHz
  • Configuration: 2 x 16 full crossbar
  • Isolation (dB): 300 kHz - 2 GHz: 87 || 2 - 6.5 GHz: 85
  • Maximum input power: 25 dBm
  • Typical switching speed (10% trigger - 90% output): 50 us
  • HF connection: SMA (f)
  • Dimensions (H x W x D): 68.2 mm x 176 mm x 332.8 mm
  • Weight: 2.65 kg

Documents & Downloads

Datasheet
pdf | 0.78 MB

Description

P9164A | USB Solid State Switch Matrix 2x16, 300 kHz - 6.5 GHz

Despite its compact design, the Keysight P9164A 2x16 USB Solid State Switch Matrix, 300 kHz to 6.5 GHz is a full crossbar switching matrix that enables you to perform multi-DUT or multi-port measurements, such as 5G solid MIMO antenna measurements.

The Keysight P916xA / B / C series semiconductor switches are compact and portable. Thanks to the exceptional RF performance of solid state switches, you can trust your measurements. You get reliable and repeatable results while reducing the overall cost of the test.

Product features:

  • The Keysight Solid State Switches of the P916x A / B / C series cover a frequency range from 300 kHz to 18 GHz (depending on the variant)
  • Expand the number of test ports for multi-DUT or multiport measurements
  • Portable and compact - perfect for use in multiple locations
