Keysight N9000B CXA | Signal/spectrum analyzer, 9 kHz to 3/7.5/13.6/26.5 GHz, multi-touch

Name: N9000B CXA | Signal/spectrum analyzer, 9 kHz to 3/7.5/13.6/26.5 GHz, multi-touch
Brand: Keysight
SKU: N9000B
Availability: InStock

Manufacturer number: N9000B

Delivery time upon request

On Request

or choose one of the following options:

Request a quote Product inquiries Request education-price

Keysight N9000B | Entry-level CXA signal analyzer, frequency range 9 kHz to 3 / 7.5 / 13.6 or 26.5 GHz, analysis bandwidth up to 25 MHz.

Frequency range: 9 kHz to 3.0 / 7.5 / 13.6 or 26.5 GHz
Analysis bandwidth: 10 MHz, optionally 25 MHz
DANL (Displayed Average Noise Level) at 10 GHz: -142 dBm/Hz (without preamp)
Amplitude accuracy: ±0.5dB
Phase noise at 1 GHz: -110 dBc/Hz (10 kHz offset)
Dynamic range: 73 dB (with noise correction)
Analysis software 89600 VSA with over 75 signal standards and demodulation types
IQ analysis functions
Fast power measurement integrated as standard
Trigger functions: level, HF burst, line, external, periodic
Interfaces: GPIB, LAN, USB 2.0
Dimensions: W 426 x H 177 x D 368 mm, weight: approx. 15.4 kg

Technical Data

Analysis bandwidth (MHz):	10
Article number:	N9000B
DANL Displayed Average Noise:	approx. -163 dBm
Demodulations:	AM, FM
Detectors:	Normal, Peak, Sample, Neg Peak, Log Avg, RMS Avg, Voltage Avg
Dimensions (L x W x H) (mm):	368 x 426 x 177
Dynamics:	162 dB (typ.)
Filter bandwidths:	RBW 1 Hz - 8 MHz (VBW)
Frequency stability:	±0.50 dB
Interfaces:	USB, LAN
Measurement functions:	Basic spectrum, trace search, distortion, power, EMI measurement with SW apps
Model:	N9000B
Resolution bandwidth:	1 Hz to 8 MHz
SSB phase noise:	1 GHz (10 kHz carrier offset) -110 dBc/Hz
Screen size:	26.9 cm
Screen type:	WXGA Multitouch
Sweep:	linear, logarithmic
Tracking-Generator:	external optional
Weight (kg):	10
min. Frequency range (KHz):	9

Description

N9000B CXA | Signal/spectrum analyzer, 9 kHz to 3/7.5/13.6/26.5 GHz, multi-touch

The spectrum analyzer N9000B CXA (Spectrum Analyzer, Signal Analyzer) has essential test functions for a wide variety of communication standards. It thus forms the basis for particularly cost-efficient signal characterization for IoT applications, training purposes and universal measurement tasks in research and development.

With the 89600 VSA analysis software, the signal analyzer is optimally adapted to your measurement requirements. More than 75 signal standards and demodulation functions are available in order to be able to test new developments very quickly and without tediously setting up new signal standards. Appropriate upgrades and extensions ensure that your signal analyzer stays up to date and can handle your current and future measurement tasks.

Application examples:

Frequency and power testing of HF transmitters
Measurement of distortion and spurious emissions in wireless communication
Determination of noise signals
Test of transmission links (over the air)
Digital video applications
Analog demodulation
EMC measurements
Teaching applications in high-frequency technology

Like all X-Series instruments, the N9000B Spectrum Analyzer is very easy to use, streamlining your test procedures and reducing errors. Most applications can be called up in just two steps on the touch display. To ensure that the devices in the X-series are interchangeable, they are equipped with the same programming code, so that once the test software has been designed, it can be used from development through production to the test field and service. This enables savings throughout the design development process.

Accessoires

Keysight
BV9001B

BenchVue full version, PC measurement and evaluation software

Ready to ship in 5 to 10 business days

On Request

Exclusive

Keysight
N9000B-T03

Tracking generator, 9 kHz to 3 GHz

Delivery time upon request

On Request

Exclusive

Keysight
N9000B-B25

Analysis bandwidth, 25 MHz

Delivery time upon request

On Request

Exclusive

Keysight
N9000B-FSA

Fine resolution step attenuator

Delivery time upon request

On Request

Exclusive

Keysight
N9000B-P03

Preamplifier, 3 GHz

Delivery time upon request

On Request

Exclusive

Keysight
N9000B-T06

Tracking generator, 9 kHz to 6 GHz

Delivery time upon request

On Request

Exclusive

Keysight
N9000B-P07

Preamplifier, 7.5 GHz

Delivery time upon request

On Request

Exclusive

Keysight
N9000B-P13

Preamplifier, 13.6 GHz

Delivery time upon request

On Request

Exclusive

Keysight
N9000B-P26

Preamplifier, 26.5 GHz

Delivery time upon request

On Request

Keysight

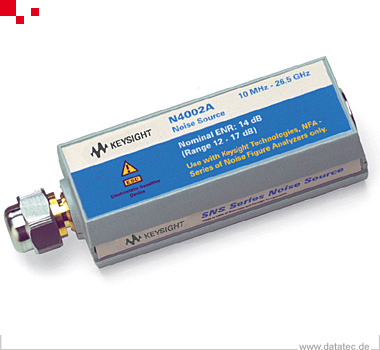

N4002A

Noise source, 10 MHz to 26.5 GHz, 3.5 mm (m), SNS noise source, nominal ENR 15 dB

Delivery time upon request

On Request

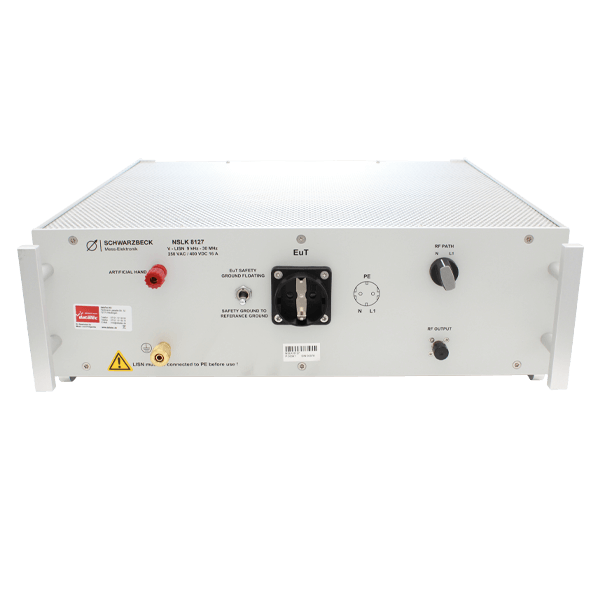

Schwarzbeck
NSLK8127

V-network simulation, LISN, CISPR 16-1-2, 9 kHz - 30 MHz 2x16 A Schuko socket outlet, single-phase

Delivery time upon request

On Request

Alternate products

Keysight
N9322C

Signal / Spectrum Analyzer (BSA), 9 kHz to 7 GHz

Delivery time upon request

€14,782.00

Bundle

Rohde&Schwarz
FPC-P3

FPC1000 spectrum analyzer package, 5 kHz to 3 GHz, USB / LAN

Delivery time upon request

€3,830.00

Bundle

Rohde&Schwarz
FPC-P2TG

FPC1500 spectrum analyzer package, 5 kHz to 2 GHz (optionally up to 3 GHz), USB / LAN

Delivery time upon request

€3,900.00

Bundle

Rohde&Schwarz
FPC-COM2

Promotional package spectrum analyzer FPC1500, 3 GHz, incl.hardware and software options (1328.6660P99)

2 in stock. Ready to ship in 1 business day

-15 % €6,970.00 €8,210.00

Bundle

Rohde&Schwarz
FPC-P3TG

FPC1500 spectrum analyzer package, 5 kHz to 3 GHz, USB / LAN

Delivery time upon request

€4,900.00

Bundle

Rohde&Schwarz
FPC-P2

FPC1000 spectrum analyzer package, 5 kHz to 2 GHz (optionally up to 3 GHz), USB / LAN

Delivery time upon request

€2,830.00

Rohde&Schwarz
FPC1000

Spectrum analyzer, 5 kHz to 1/2 or 3 GHz (1328.6660.02)

Delivery time upon request

€1,830.00

Rohde&Schwarz
FPC1500

Spectrum analyzer, 5 kHz to 1/2 or 3 GHz, integr. Track gen., Opt. Network analysis (1328.6660.03)

Delivery time upon request

€2,900.00

Rohde&Schwarz
FPC-P1

Spectrum analyzer FPC1000, 5 kHz to 1 GHz (optionally up to 2/3 GHz), USB / LAN

Delivery time upon request

€1,830.00

Rohde&Schwarz
FPC-P1TG

Spectrum analyzer FPC1500, 5 kHz to 1 GHz (optionally up to 2/3 GHz), USB / LAN

Delivery time upon request

€2,900.00

Sale

Keysight
N9000B

Stock sale - CXA X-Series Signal Analyzer, Multitouch, 9 kHz to 3 GHz, Preamplifier (DT2161_2207_L)

1 in stock. Ready to ship in 1 business day

-10 % €17,497.80 €19,442.00

Recommendations

Series

Keysight
34465A

Multimeter, TRMS, 6 ½ digits, Truevolt (344xxA)

7 in stock. Ready to ship in 1 business day

€1,739.00

Keysight
N5767A

Power supply unit, DC, 1 channel 60V / 25A, 1500W, analog

Delivery time upon request

€4,090.00

Keysight
N6705C

Modular 4-channel power supply & DC power analyzer, 600 W, mainframe

1 in stock. Ready to ship in 1 business day

€9,840.00

Keysight
U1253B

Multimeter, TRMS, 4½, OLED, ACV / DCV, integr. Rectangle generator

Delivery time upon request

€921.00

Keysight
U3851A

RF and Microwave Teaching Solution with and 5G-enhanced, Concepts Fundamental

Delivery time upon request

On Request

Exclusive

Sonoma
317

Broadband amplifier, 10 kHz - 2.5 GHz, 38 dB gain

Delivery time upon request

On Request

Exclusive

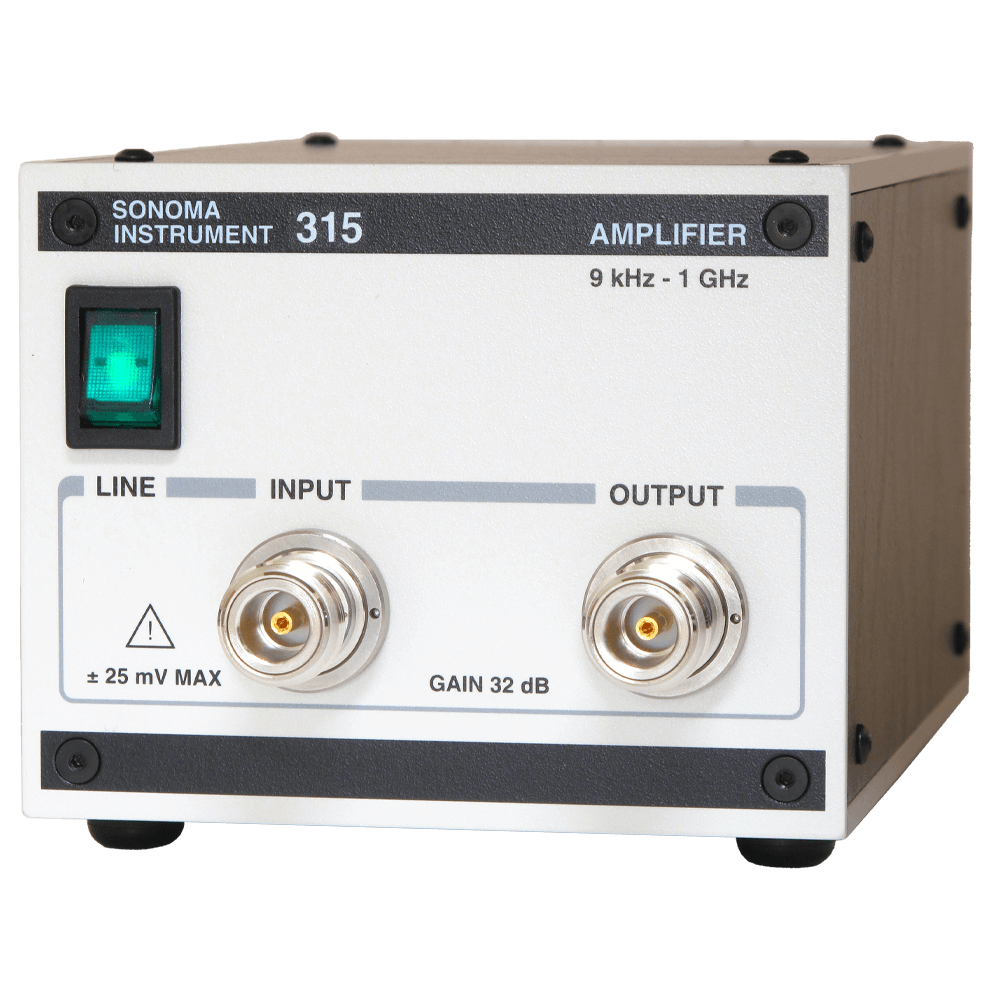

Sonoma
315

Broadband amplifier, 10 kHz - 1 GHz, 51 dB gain

Delivery time upon request

On Request

Exclusive

Sonoma
352

Broadband amplifier, 10 kHz - 5 GHz, 26 dB gain

Delivery time upon request

On Request

Exclusive

Sonoma
354

Broadband amplifier, 10 kHz - 3 GHz, 19 dB gain

Delivery time upon request

On Request

Keysight
U7227A

USB preamplifier, 10 MHz - 4 GHz, gain:> 16 dB

Delivery time upon request

On Request

Options

Bundle

Keysight
N9000B-026 CXA

Best Value Bundle signal / spectrum analyzer, 9 kHz - 26.5 GHz at a special price

Delivery time upon request

On Request

Bundle

Keysight
N9000B-030 CXA

Good Value Bundle signal / spectrum analyzer, 9 kHz - 3 GHz at a special price

Delivery time upon request

On Request

Bundle

Keysight
N9000B-070 CXA

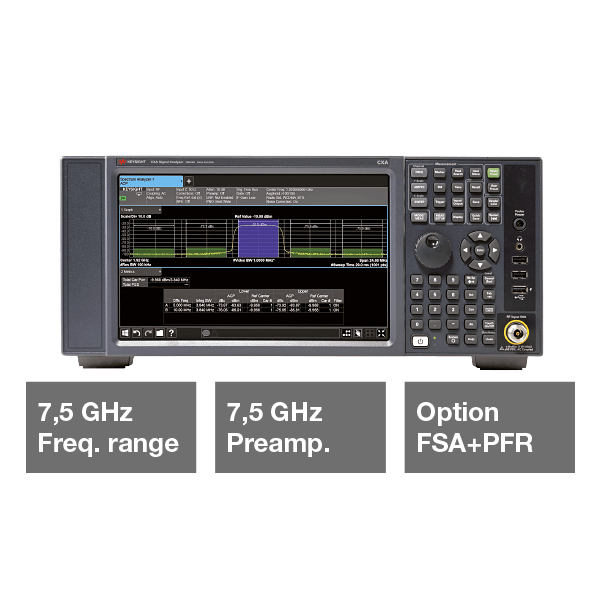

Better Value Bundle signal / spectrum analyzer, 9 kHz - 7.5 GHz at a special price
