Keysight DM34460A | Multimeter, table, 6.5 digits

Name: DM34460A | Multimeter, table, 6.5 digits
Brand: Keysight
SKU: DM34460A
Price: 1288.0 EUR
Availability: InStock

Manufacturer number: DM34460A

Reordered - in stock. Delivery time on request

€1,288.00

plus VAT. €1,532.72 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Share

Keysight DM34460A | Multimeter, table, 6.5 digits

Product features:

Resolution: 6½ digits
Basic accuracy (DCV): ±40 ppm
Maximum measuring rate: 1,000 measurements/s
Internal memory: 50.000 measured values
Display: 7" color TFT, graphical (bar graph, histogram, trend)
Measuring ranges:
- DC voltage: 100 mV to 1.000 V
- AC voltage (RMS): 100 mV to 750 V
- DC current: 100 µA to 3 A
- AC current: 100 µA to 3 A
- Resistance: 100 Ω to 100 MΩ (2- and 4-wire)
- Frequency: 3 Hz to 300 kHz
- Capacitance: 1 nF to 100 µF
- Temperature: PT100, thermistor
- Continuity test, diode test: Yes (5 V)
USB and LAN/LXI interfaces
Software support: PathWave BenchVue DMM software
Safety features: NISPOM-compliant data erasure
Dimensions: 313.6 mm × 164.7 mm × 121.1 mm
Weight: 3.35 kg
Operating temperature: 0 °C to 55 °C
Power supply: 100-240 V AC, 50/60/400 Hz

Technical Data

2-/4-wire:	2-/4
Accuracy voltage measurement DC:	0,004 %
Article number:	DM34460A
Capacity measuring range:	1 nF - 100 μF
Current measuring range AC:	100 µA - 3 A
Current measuring range DC:	100 µA - 3 A
Dimensions (L x W x H) (mm):	121,1 x 313,6 x 164,7
Diode test / continuity test:	Yes / Yes
Display:	7" / TFT WQVGA (Farbe)
Frequency measuring range:	3 Hz - 300 kHz
Interfaces:	USB, LAN
Measurements per second:	1
Model:	DM34460A
Number of positions:	6.5
Resistance measuring range:	100 Ω - 100 MΩ
Special features:	Truevolt Technologie
Temperature measurement:	Yes
Voltage measuring range AC:	750 V
Weight (kg):	3.35
max. Measuring range DC (V):	1
min. Measuring range DC (mV):	100

Documents & Downloads

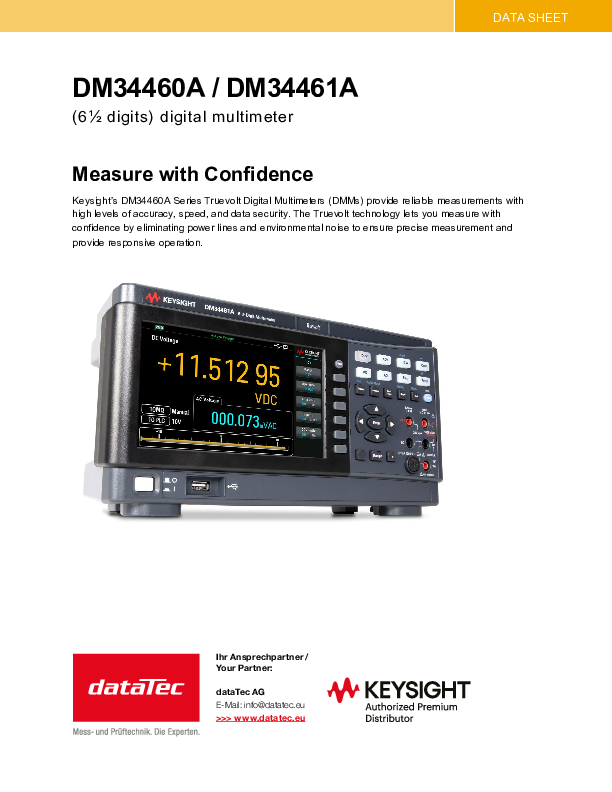

Datasheet

pdf | 1.25 MB

Description

DM34460A | Multimeter, table, 6.5 digits

The Keysight Smart Bench Essentials Plus Truevolt digital multimeters of the DM34460A series offer precise, fast and safe measurements in laboratory and industrial environments. Equipped with the proven Truevolt technology, these devices are characterized by high accuracy and effective suppression of mains and environmental interference. Thanks to the patented metrological architecture and the continuously integrating A/D converter, precise and stable measurements are guaranteed even under difficult conditions.

Typical areas of application include precise voltage, current, resistance, frequency and temperature measurements in research, development, quality control and production. The models feature a large 7" colour display for convenient data visualization and analysis as well as a wide range of graphical display modes such as trend charts and histograms. In addition, the integrated BenchVue software enables simple PC connection for automated data acquisition and analysis.

The DM34460A is the basic model in the series and offers 6½-digit resolution, a high basic accuracy of 40 ppm and extensive measurement functions such as True RMS AC/DC voltage and current, resistance, frequency, temperature and capacitance. Compared to the DM34461A variant, however, the DM34460A does not have the integrated digitization function and has a smaller internal memory (50,000 instead of 2 million measured values).

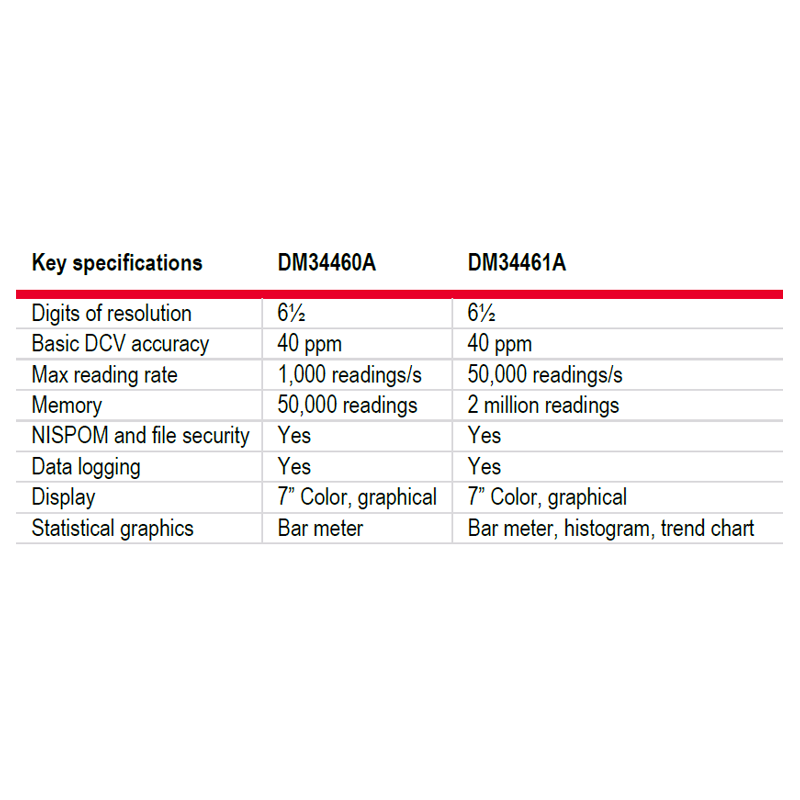

Main differences to the DM34461A:

DM34460A: Up to 1,000 readings/s, 50,000 memory locations
DM34461A: Up to 50,000 readings/s, 2 million memory locations, including digitizer function

About the Manufacturer

Keysight

dataTec and Keysight Technologies have had a strong partnership since 1999. No other company offers such a wide range of measurement technology, testing solutions, and solutions for our connected world. With Keysight's measuring instruments, you are also well-equipped for today's and tomorrow's tasks.
