Keysight CX3322A | Device Current Waveform Analyzer, 1 GSa/s, 14-16 bit, 2 channels

Manufacturer number: CX3322A

CX3322A
CX3322A
CX3322A
CX3322A
Delivery time upon request

€33,860.00

plus VAT. €40,293.40 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight CX3322A | Device Current Waveform Analyzer, 1 GSa/s, 14-16 bit, 2 channels.

Technical Data

Documents & Downloads

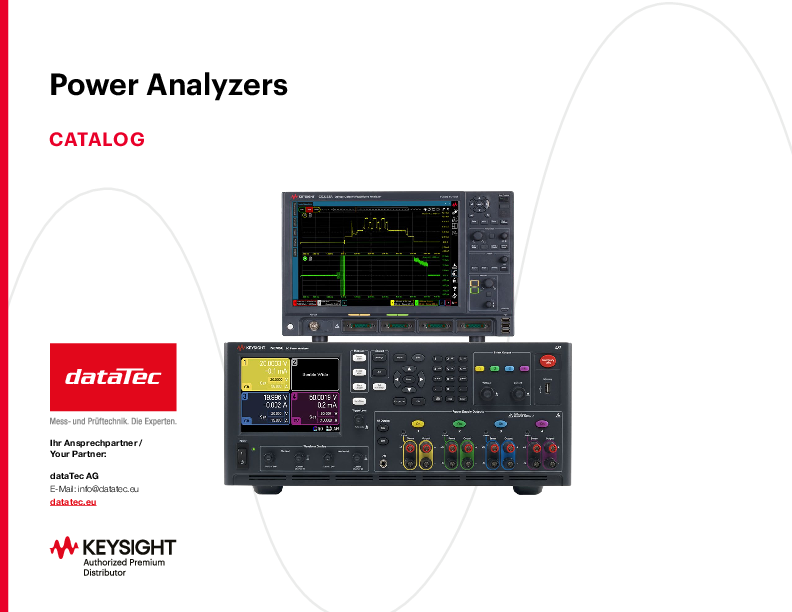

Catalog
Power-Analyzer
pdf | 1.00 MB

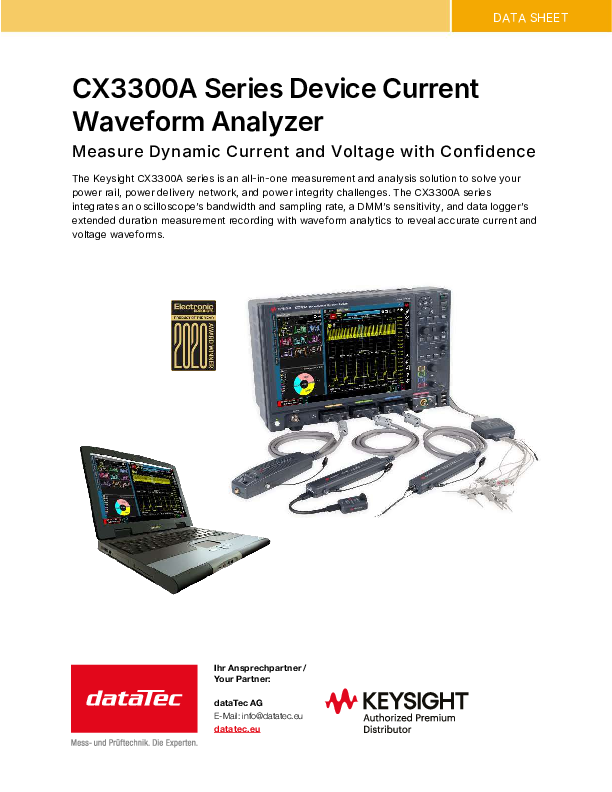

Datasheet
CX3300A-Serie
pdf | 2.55 MB

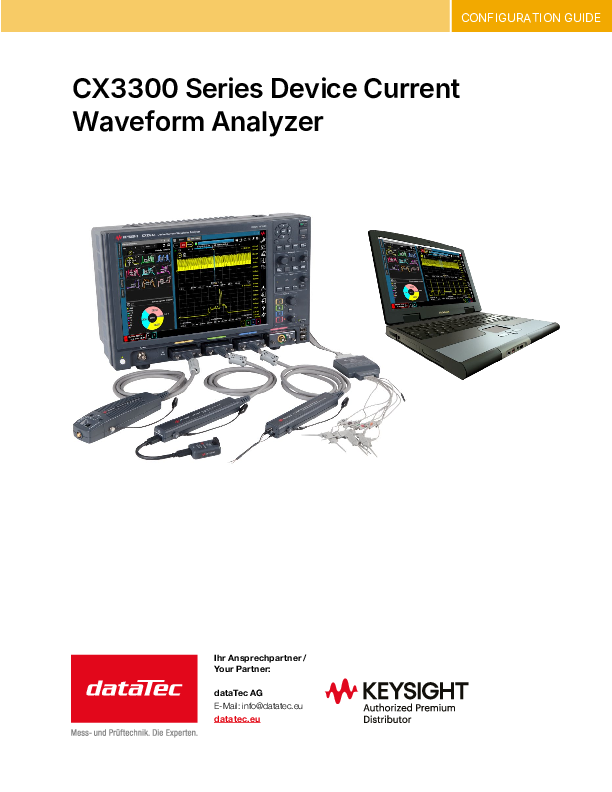

Configuration guide
CX3300A-Serie
pdf | 1.08 MB

Description

CX3322A | Device Current Waveform Analyzer, 1 GSa/s, 14-16 bit, 2 channels

The Keysight CX3300A series is an all-in-one solution for the precise analysis of dynamic current and voltage waveforms. It combines the high bandwidth and sampling rate of an oscilloscope with the sensitivity of a DMM and the long-term recording capabilities of a data logger.

The series is particularly well-suited for power rail characterization, power integrity analysis, design validation, and debugging of IoT, mobile, wearable, automotive, medical, and semiconductor applications. Typical measurement tasks include capturing inrush currents, sleep/wake-up behavior, small current changes, supply voltage dips, and long-term trends.

Differences to the CX3324A variant

The CX3322A is the 2-channel variant of the CX3300A series and is suitable for precise current and voltage measurements on up to two analog channels.

Compared to the CX3324A, it offers fewer channels: The CX3324A has four analog channels and additionally supports eight digital channels with the CX1152A interface. The CX3322A has no digital channels.

Product Features:

  • Analog Input Channels: 2
  • Digital Channels: Not Available
  • Maximum Analog Bandwidth: 50 MHz, 100 MHz, or 200 MHz, depending on the configuration
  • Maximum Memory Depth: 4 Mpts, 16 Mpts, 64 Mpts, or 256 Mpts
  • Measurement Modes: Scope mode default, Data Logger mode optional
  • ADC Resolution: 14 bits at high speed, 16 bits at high resolution
  • Maximum Sampling Rate in Scope Mode: 1 GSa/s at 14 bits, 75 MSa/s at 16 bits per channel
  • Maximum Sampling Rate in Data Logger Mode: 10 MSa/s at 1 channel, 5 MSa/s with 2 channels
  • Maximum recording time in data logger mode: up to 100 hours
  • Input coupling: DC
  • Input impedance: 50 Ω
  • Input range: ±0.65 V nominal, ±2 V peak
  • Time base range: 1 ns/div to 10 ks/div
  • Time resolution: 1 ns
  • Time base accuracy: 10 ppm
  • Trigger sources: Channel 1, Channel 2, Aux and Line
  • Display: 14.1-inch capacitive multi-touchscreen, 1280 × 800 pixels
  • Operating system: Windows 10 IoT
  • Memory: at least 250 GB removable SSD
  • Interfaces: USB 2.0, USB 3.0, LAN, LXI LAN, VGA and DisplayPort
  • Operating temperature: 0 °C to 40 °C
  • Dimensions: 425.6 × 266.1 × 196.7 mm
  • Weight: 11 kg
