Keysight B1500A | Semiconductor Device Analyzer Mainframe

Manufacturer number: B1500A

B1500A
B1500A
B1500A
B1500A
B1500A
B1500A
B1500A
B1500A
B1500A
B1500A
B1500A
B1500A
Delivery time upon request

€42,381.00

plus VAT. €50,433.39 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries
Highlights Documents / Downloads Description

Keysight B1500A | Semiconductor Device Analyzer Mainframe.

Product features:

  • Measurement functions: IV, CV, Pulse-IV, Transient-IV, Arbitrary Waveform
  • Current measurement range: 0.1 fA to 1 A
  • Voltage measurement range: 0.5 µV to 200 V
  • Capacitance measurement frequency: 1 kHz to 5 MHz
  • Minimum pulse width: 50 µs (MCSMU), 500 µs (other SMUs)
  • Arbitrary waveform resolution: 10 ns
  • High-speed IV measurement: 200 MSa/s, 5 ns sampling rate (WGFMU)
  • Touchscreen: 15 inch with intuitive GUI (Windows 10)
  • Measurement modules: Up to 10 modules simultaneously (MPSMU, HRSMU, HPSMU, MCSMU, etc.)
  • Resolution (current): up to 100 aA (with ASU module)
  • Automated IV/CV switching with SCUU + GSWU or ASU
  • Communication: GPIB, USB, LAN, VGA
  • Software: EasyEXPERT group+ including database, analysis functions and test library
  • Maximum power per SMU configuration: 84 W total consumption
  • GNDU (Ground Unit): ±4.2 A current reduction at 0 V output

Documents & Downloads

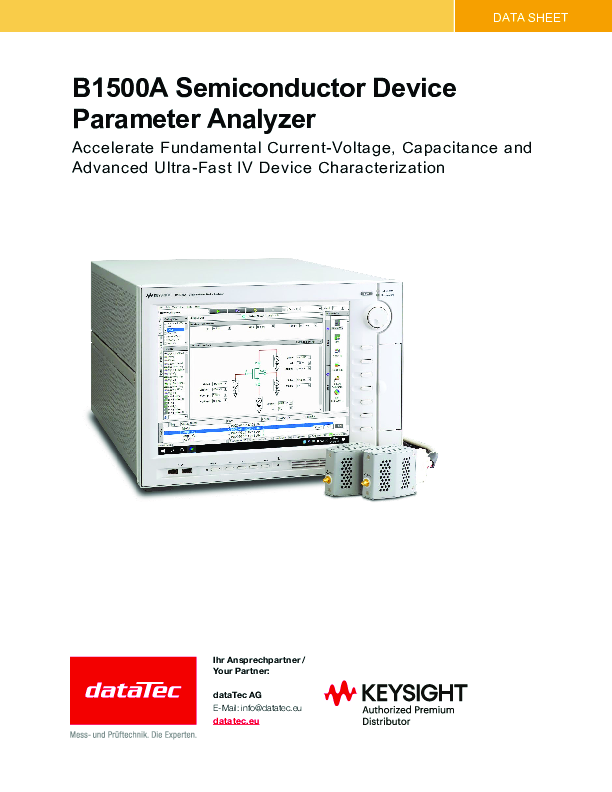

Datasheet
pdf | 1.27 MB

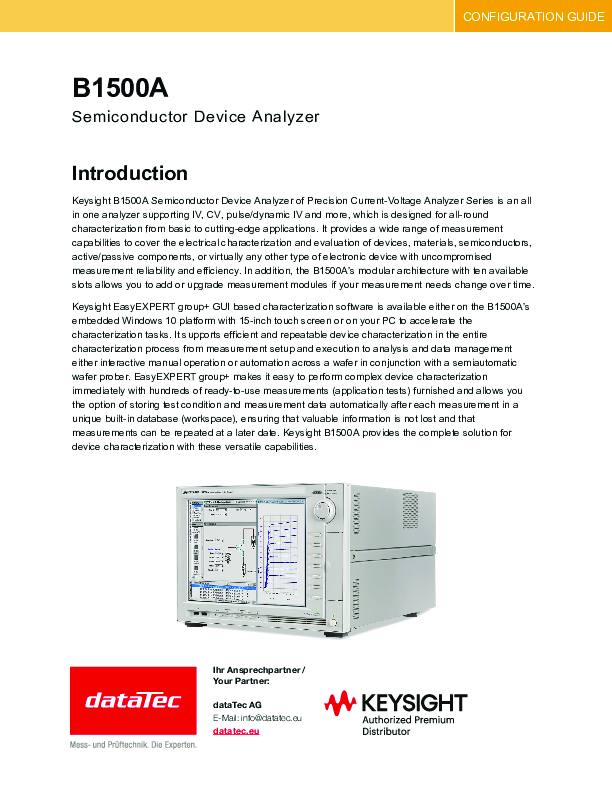

Configuration guide
pdf | 5.36 MB

Description

B1500A | Semiconductor Device Analyzer Mainframe

The Keysight B1500A Semiconductor Device Parameter Analyzer is a high-precision, modular measurement system for complete electrical characterization of semiconductor devices. The system supports current-voltage (IV), capacitance (CV), pulse and transient measurements in a single device and is suitable for both basic and advanced applications in research, development and production.

The modular architecture with up to 10 slots allows the device to be flexibly configured and upgraded as required. The user-friendly, touchscreen-based software platform EasyEXPERT group+ enables automated, repeatable tests with hundreds of ready-made application measurements. This streamlines the entire measurement process from setup and execution to analysis and data management.

With its outstanding resolution down to the attoampere range, fast pulse capabilities, high voltage stability and comprehensive software integration, the B1500A is the complete solution for precise characterization of semiconductors, materials, passive/active devices and more.
