Keysight 34903A | 20-channel universal relay module for data logger 34970A / 34972A

Manufacturer number: 34903A

34903A
34903A
34903A
34903A
Delivery time upon request

€759.00

plus VAT. €903.21 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Share
Highlights Documents / Downloads Description Scope Related Articles

Keysight 34903A | 20-channel universal relay plug-in module for data logger 34970A / 34972A.

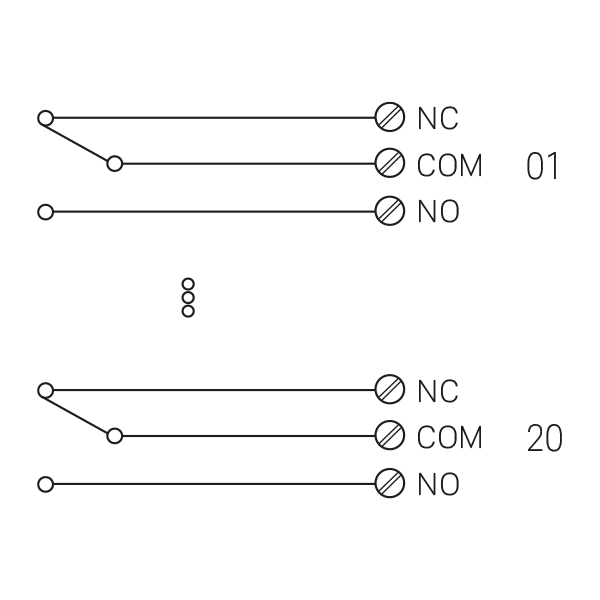

  • 20-channel universal relay changeover switch
  • Scan rate of 120 channels per second
  • SPDT latching relay (form C)
  • Max. 300 V switching voltage
  • Max. 1 A switching current
  • Max. 50 W switching power
  • Max. 10 MHz bandwidth
  • Connection via screw terminals
  • Hole grid area for own circuits
  • Warranty 3 years

Documents & Downloads

Datasheet
pdf | 3.90 MB
Userguide
pdf | 4.88 MB

Description

34903A | 20-channel universal relay module for data logger 34970A / 34972A

The Keysight 34903A module is a universal switching module for the 34970A / 34972A measurement data acquisition / switching system. It has 20 independent single-pole changeover relays (SPDT) and supplies z. B. test objects, control displays and status lights with electricity. It is also used to actuate external power relays, solenoids, ... In combination with the matrix and multiplexer modules, it can be used to build customer-specific switching and test systems. Its changeover contacts (300 V, 1 A) can handle up to 50 W, which are also sufficient for numerous power line switching tasks. A connection to the internal DMM of the 34970A / 34972A is not possible. On the 34903A module there is a perforated grid area for building small circuit expansions.

Lieferumfang

  • Plug-in card 34903A
  • Calibration certificate
