Keysight 34901A | 20-channel multiplexer module (2/4-wire) for data logger 34970A / 34972A

Manufacturer number: 34901A

34901A
34901A
34901A
34901A
Delivery time upon request

€881.00

plus VAT. €1,048.39 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price Share
Highlights Documents / Downloads Description Scope Related Articles

Keysight 34901A | 20-channel multiplexer plug-in module (2/4 wire) for data logger 34970A / 34972A.

  • 20-channel differential multiplexer (armature relay)
  • integrated thermocouple reference junction
  • Scan rate of 60 channels per second
  • Two and four wire measurements possible
  • Max. 300 V switching voltage
  • Max. 1 A current for current measuring channels (secured)
  • Connection via screw terminals
  • floating connection to the internal DMM of the 34970A / 72A
  • Warranty 3 years

Documents & Downloads

Datasheet
pdf | 3.90 MB
Userguide
pdf | 4.88 MB

Description

34901A | 20-channel multiplexer module (2/4-wire) for data logger 34970A / 34972A

The Keysight 34901A plug-in module for the HP / Agilent / Keysight data acquisition / switching system 34970A / 34972A is the most versatile multiplexer for general scanning tasks such as B. Measurements of voltages, currents, resistances, temperatures, ... in the laboratory or in production. It combines dense multi-function switching with scan rates of 60 channels / second and thus covers a wide range of data acquisition tasks.
Two and four wire measurements can be mixed on one module.

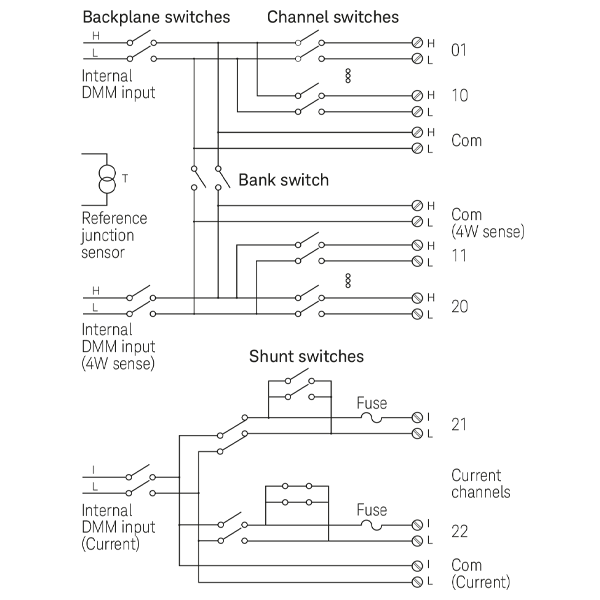

In four-wire measurements, the channels of the banks are combined into pairs. Two additional protected inputs (22 channels in total on the 34901A) conduct up to 1A current to the internal DMM of the 34970A / 34972A and thus enable AC and DC measurements without external bleeder resistors (shunts).

Lieferumfang

  • Plug-in card 34901A
  • Calibration certificate
