Keysight 34461A | Multimeter, TRMS, 6 ½ digits, Truevolt (344xxA)

Name: 34461A | Multimeter, TRMS, 6 ½ digits, Truevolt (344xxA)
Brand: Keysight
SKU: 34461A
Price: 1426.0 EUR
Availability: InStock

Manufacturer number: 34461A

22 in stock. Ready to ship in 1 business day

€1,426.00

plus VAT. €1,696.94 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

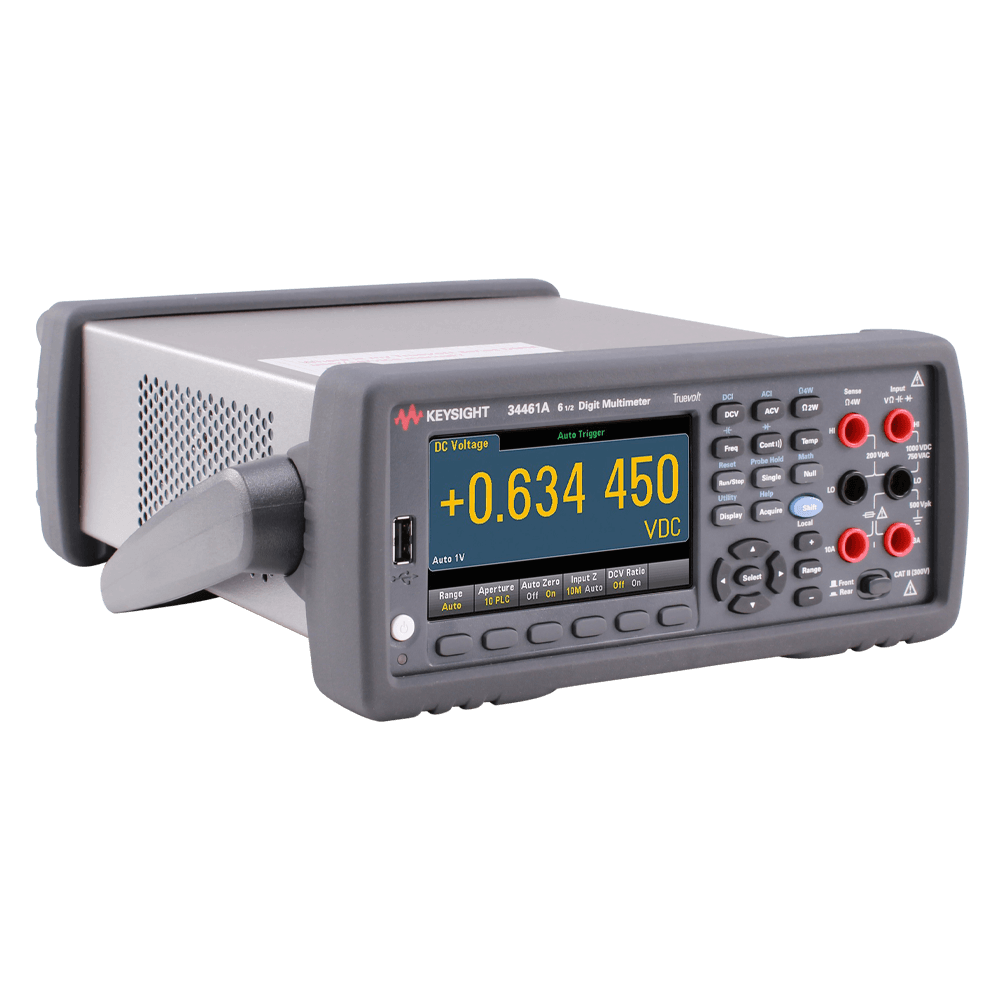

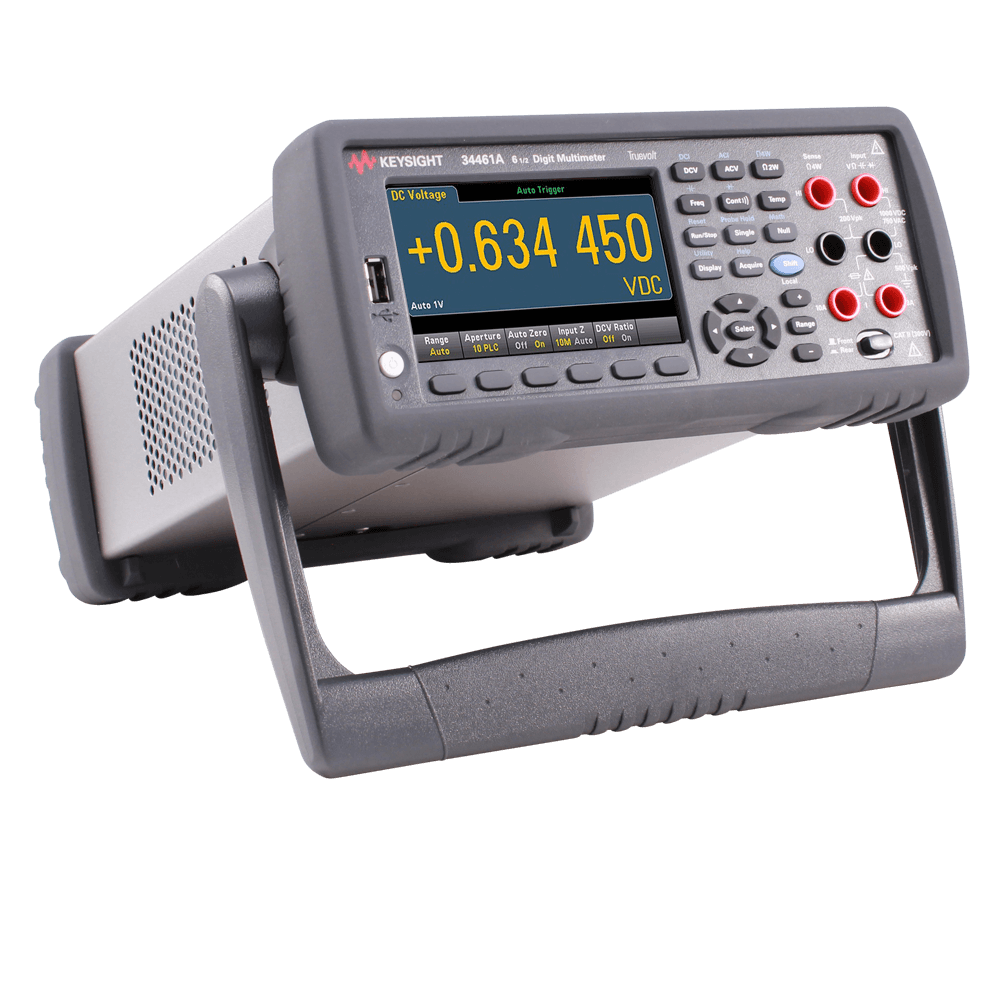

Keysight 34461A | 6½-digit Truevolt table multimeter with graphical color display for displaying measurement curves, histograms, bar graphs, statistics and mathematical functions.

Resolution: 6½ digits
Measurement accuracy: DCV 0.0035%, ACV 0.06%
Accuracy over a year (max. Drift): 75 ppm
Measuring rate: 1,000 measurements per second
Memory for 10,000 measurements
A total of 11 measurement functions:
- DC voltage measuring range: 100 mV - 1,000 V / resolution from 1 μV
- AC voltage measuring range: 100 mV - 750 V / resolution from 1 μV
- Current measurement range DC / AC: 100 μA - 10 A / resolution from 1 nA
- 2- and 4-wire resistance 100 Ω - 100 MΩ / resolution from 1 mΩ
- Constant measuring output voltage of 5 V for measuring (LED) diodes and arrays
- Frequency / period 3 Hz - 300 kHz
- Temperature measurements via optional RTD / PT100 and thermistor
- capacitance measurement 1 nF to 100 μF
Bright, easy-to-read, high-resolution, graphic color display with a diagonal of 109 mm (4.3 inch) for displaying measurement curves, histograms, bar diagrams, statistics and mathematical functions
I / O interface: Standard: USB, LAN with external trigger, (optional: GPIB)
Front USB interface for external storage medium
100% compatibility with SCPI program commands like the 34401A etc.
Saving and displaying the measurement data on a PC or mobile device (e.g. smartphone)
Drag-and-drop data transfer via USB - no additional software is required
Easy operation and setting thanks to intuitive, menu-based interface
Reduction of noise and measurement errors through Truevolt technology
All specifications meet the requirements of ISO / IEC 17025
Dimensions: (W x H x D): 261.2 mm x 103.8 mm x 303.2 mm
Weight: 3.76 kg

Technical Data

2-/4-wire:	2-/4
Accuracy voltage measurement AC:	0,06 %
Accuracy voltage measurement DC:	0,0050 %
Article number:	34461A
Capacity measuring range:	1 nF - 100 µF
Current measuring range AC:	100 µA - 10 A
Current measuring range DC:	100 µA - 10 A
Dimensions (L x W x H) (mm):	303.2 x 261.1 x 103.8
Diode test / continuity test:	Yes / Yes
Display:	4.3 inch, dual-line, graphic
Frequency measuring range:	3 Hz - 300 kHz
Interfaces:	USB, LAN, optional: GPIB
Measurements per second:	1000
Model:	34461A
Number of positions:	6.5
Resistance measuring range:	100 Ω - 100 MΩ
Temperature measurement:	Yes
Voltage measuring range AC:	100 mV - 750 V
Weight (kg):	3.76
max. Measuring range DC (V):	1000
min. Measuring range DC (mV):	100

Description

34461A | Multimeter, TRMS, 6 ½ digits, Truevolt (344xxA)

The 6½-digit 34461A digital multimeter with " Truevolt " technology from Keysight offers a multitude of measurement options and measured value displays that are unique for a DMM (Digital Multi Meter). "Truevolt" is an innovative, patented A / D converter technology with which external factors such as noise and the load on the measuring point are eliminated by the measurement. The measurement accuracy of 0.0035% thus achieved is unmatched for DMM in this price range .

The 34461A is a 100% replacement for the quasi-industry standard multimeter 34401A. In 34401A mode, the 34461A is 100% software compatible with the 34401A multimeter. In addition to the higher accuracy due to Truevolt, the 34461A offers a current measuring range up to 10A and temperature measurements for RTD / PT100 and thermistor sensors.

Note:

When you purchase this new device, you will now receive a "Node-Locked" license for the Keysight measurement and analysis app BenchVue for digital multimeter BV0001B free of charge . This is limited to the specific device. The license is not limited in time.

On the Keysight website you will find further information on downloading, registering and activating your BenchVue license: To the Keysight website.

Keysight defines "DMM" for these Truevolt devices in: Display, Measure, Move :

The display , with a diagonal of 109 mm, offers the measured values in a pure number, combination of numbers and bars, histogram, statistics and in a trend display.
Measure : With the patented A / D converter technology, external influences on the measured values are eliminated, e.g. B. noise introduced by the power supply and environmental, injected noise or injected current. When digitally measuring alternating variables using direct sampling technology and A / D conversion, a much faster and more accurate RMS measurement is carried out.
Move : measurement curves - save, display, take away. Easy export of measurement data from one or time-correlated from several devices to an external USB stick, PC or to mobile devices such as a tablet PC or smartphone. Data or display curves can easily be exported to Microsoft Excel, Word or to MATLAB. With freely available software from the Apple App Store, the DMM Mobile Utility software can be downloaded, which can be used to control the devices connected via LAN and to transfer measured values and curves. For long-term examinations, warnings can also be triggered, which inform the user in the event of unforeseen problems.

Lieferumfang

34461A
Power cord
Documentation CD, IO Libraries CD
34138A Test Lead Set (measuring cables and accessories)
USB cable
Calibration certificate
