Keysight 1146B | Current clamp, BNC, 100 A DC - 100 kHz

Manufacturer number: 1146B

1146B
1146B
1146B
1146B
1146B
1146B
1146B
1146B
1146B
1146B
1146B
1146B
Delivery time upon request

€1,089.00

plus VAT. €1,295.91 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Keysight 1146B current clamp (formerly Agilent's electronic measurement technology) with BNC to 100A in the frequency range from DC - 100kHz.

  • Long, narrow shape for better measurement of individual cables in cable harnesses.
  • Small phase shift for exact results in performance measurements
  • Voltage output in the mV range
  • Bandwidth: DC - 100kHz
  • Peak pulses: 100A
  • Sensitivity: 50mA / div
  • A / Div display: 50mA - 100A
  • Maximum voltage 600V Cat III
  • Max. Diameter: 11.8mm

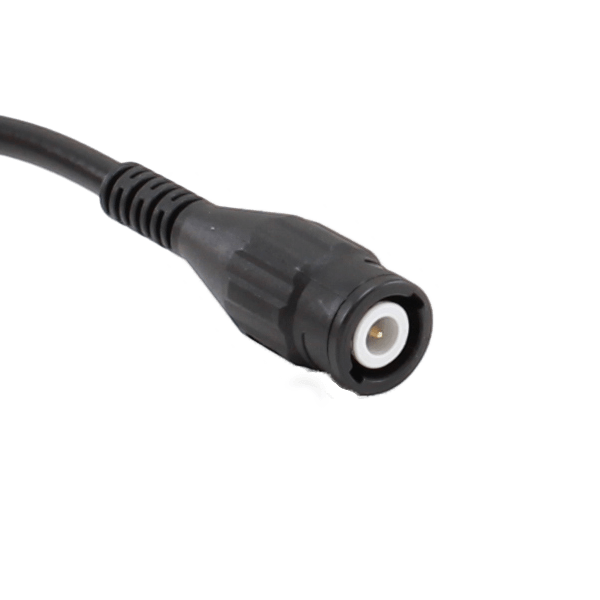

  • Connection of coaxial cable with 2 m length to insulated BNC connector
  • BNC connector (1 MΩ / 100 pF)
  • Measurement of AC + DC signals for True RMS measurements
  • Battery operation 9V (approx. 55 hours running time per battery)

Technical Data

Documents & Downloads

Overview
pdf | 5.13 MB

Description

1146B | Current clamp, BNC, 100 A DC - 100 kHz

The 1146B measures AC and DC currents with the innovative Hall effect - from a few mA to more than 100A. The 1146B current probe is compatible with every Keysight (formerly Agilent's electronic measurement technology) oscilloscope as well as with any other oscilloscope with 0.2 to 0.5V / division setting option with 1MOhm input resistance using a BNC socket.

Lieferumfang

  • Clamp 1146B
  • 9V battery
  • documentation
