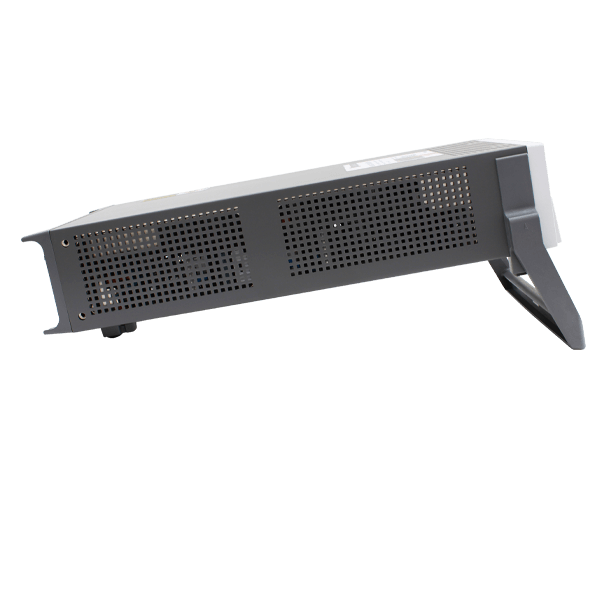

Keithley 2635B | SourceMeter SMU, Source Measure Unit, 1-channel, 200 mV to 200 V, 100 pA to 10 A, up to 30.3 W, integrated 6½-digit digital multimeter, current / voltage source and sink, arbitrary signal generator, TSP link .

Manufacturer number: 2635B

Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B
Keithley 2635B

Delivery time upon request

€16,100.00

plus VAT. €19,159.00 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Request educational price
Highlights Documents & Downloads Description Scope Related Articles

Keithley 2635B | SourceMeter SMU, Source Measure Unit, 1-channel, output voltage 200 mV to 200 V, output current 100 pA to 10 A, output power up to 30.3 W, integrated digital multimeter 6½ digits, current / voltage source and sink, arbitrary signal generator, TSP link.

  • Number of channels: 1
  • 4-quadrant operation: Use as a precision source and sink
  • Integrated digital multimeter: 6½ digits, DCV, DCI, resistance
  • 4 output voltage ranges: 200 mV, 2 V, 20 V, 200 V
  • Measurement resolution of the voltage: 100 nV to 100 µV, depending on the measuring range
  • Basic accuracy of voltage measurement: 0.015%
  • 10 output current ranges: from 100 pA to 10 A.
  • Current measurement resolution: 0.1 fA to 10 µA, depending on the measuring range
  • Basic accuracy of the current measurement: 0.02 to 0.4%, depending on the measuring range
  • Maximum output power: 30.3 W per channel
  • I / V characterization via mobile device: compatible with the Keithley app IVy for plug & play I / V measurements with an Android device
  • TSP technology (Test Script Processor): to create and execute user-defined test scripts for high-speed test automation, to create programming sequences for asynchronous device operation and to expand the number of channels without programming
  • Parallel test execution and precise timing when several SMU 2600B are connected to each other via TSP link
  • Optional ACS software for semiconductor component characterization with trace function (generates a set of characteristic curves for components)
  • 14 digital I / O lines for direct connection to a test station, a component handler or other automation tools
  • Interfaces: USB 2.0, GPIB, LXI Ethernet, RS-232, TSP-Link, digital I / O
  • Power supply: 100 to 250 V AC, 50 to 60 Hz
  • Dimensions: W 238 x H 104 x D 460 mm (including handles)
  • Weight: 4.75 kg

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Brochure
pdf | 2.98 MB
Datasheet
pdf | 2.24 MB

Detaildescription

2635B | SourceMeter SMU, Source Measure Unit, 1-channel, 200 mV to 200 V, 100 pA to 10 A, up to 30.3 W, integrated 6½-digit digital multimeter, current / voltage source and sink, arbitrary signal generator, TSP link .

The SMU 2600B series offers single and two-channel models that support your measurement tasks as a precision power supply, electronic load, 6½-digit DMM (digital multimeter) and as an arbitrary signal generator - for an increase in productivity in I / V characterization in the laboratory to the highly automated production test. The integrated web-based software enables location-independent IV measurements on any PC. Alternatively, the simple and fast plug & play application is supported via the Keithley app IVy and an Android mobile device.

To optimize your test throughput, you can run complete test programs in automated system applications thanks to the intelligent TSP technology (Test Script Processor). Up to 32 TSP-compatible devices from the SMU 2600B series can also be connected via TSP-Link. A host interface enables the control of all integrated devices from a central PC. The built-in 500 ns trigger control of this multi-channel system enables parallel high-speed measurements with precise timing and optimal synchronization (SMU-per-pin test). For applications that do not require system-level automation, the 2600B series includes three particularly cost-effective benchtop models: 2604B, 2614B and 2634B. The performance of these model variants is comparable to that of their 2602B, 2612B and 2636B counterparts, without the TSP link, contact check and digital I / O function.

The optional software ACS Basic Edition is available for the development, quality inspection or error analysis of semiconductor components: with access to extensive test libraries, script editor for quick adaptation of existing tests and analysis tools for quick comparison of measurement results and for a wide range of mathematical functions.

Lieferumfang

  • 2x 2600-ALG-2 triax cable with alligator clips, 2 m
  • 2600B-800A Emulation Script (USB stick)
  • 7709-308A digital I / O connector
  • 2x CA-180-3A TSP-Link / Ethernet Cable
  • Documentation CD
  • TSP Express software tool (integrated)
  • Test Script Builder Software (CD)
  • LabVIEW driver (CD)
