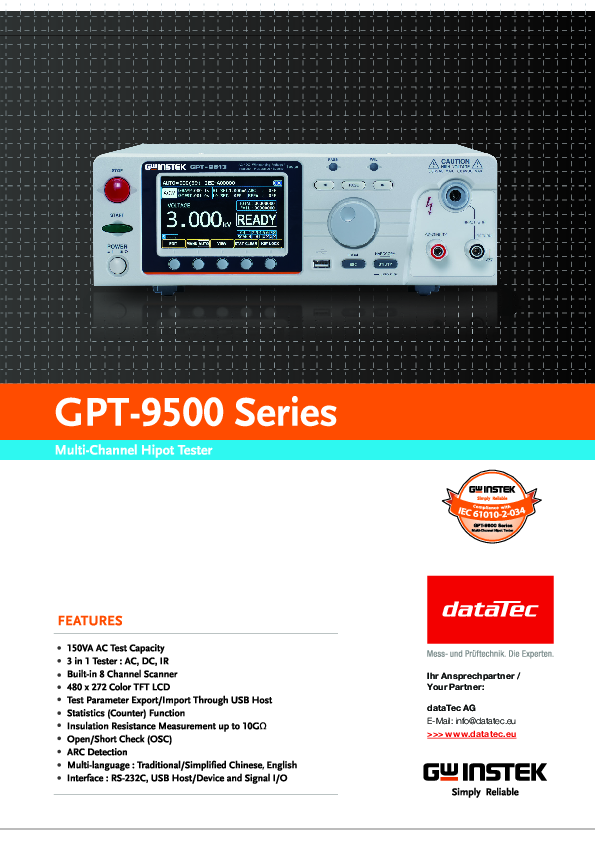

The GPT-9500 series from GW Instek combines three safety tests in one compact device: AC dielectric strength (up to 5 kV), DC dielectric strength (up to 6 kV) and insulation resistance (up to 1 kV). Both models have an integrated 8-channel scanner and comply with common safety standards (e.g. IEC/EN/UL/CSA/GB/JIS). Thanks to the 4.3" color LCD, intuitive key guidance and AUTO mode with tabular result display, test series can be carried out quickly and with minimal errors - ideal for series production, incoming goods and quality laboratories.
The series is designed for routine testing of electronic assemblies and wound goods. Typical applications are:
- High-voltage testing and insulation measurement on passive components (capacitors, resistor networks, cable harnesses)
- Multi-point testing on winding components (transformers, motor/coil assemblies)
- Quick switching between test points via the 8-channel scanner integrated at the rear
- Production lines with a need for parameter tracking (counter for tests/faults) and standardized setups (export/import of device settings via USB)
The Hipot testers are designed in accordance with IEC 61010-2-034 and offer, among other things zero start, interlock connection, post-discharge mechanisms and clearly visible status LEDs. All scanner channels are led out at the rear - this looks clean in the rack and reduces the risk of accidental contact. Interruption detection helps to avoid misjudgments due to torn cables. External control, status queries or data acquisition are easily possible via RS-232C, USB device and a signal I/O.
The GPT-9503 presented here is the model in the series that is specially optimized for high-voltage tests between two points on general components. Its eight test outputs can be switched to H (high) or X (off) per channel. This makes it particularly suitable for components that do not require switching to a low return conductor per channel, such as capacitors, insulators, cables or pre-assembled lines.
Differentiation from the GPT-9513 variant:
- Channel states: GPT-9503: H/X per channel - ideal for two-point HV tests. GPT-9513: H/L/X - predestined for winding goods (e.g. transformers) with a need for H/L switching between several measuring points.
- Typical use: GPT-9503 for general components and quick good/bad HV tests; GPT-9513 for multi-dimensional test plans on coils/windings.
Practical advantages of the GPT-9503:
- Fast series operation thanks to AUTO tests with list view of all results
- Rear scanner outputs for safe, tidy rack installations
- Parameter copy function (USB) for fast duplication of identical test stations
- Integrated statistics (total number, FAIL counter) without external counter
Product features of the series:
- Functional range: AC hipot, DC hipot, insulation resistance + 8-channel scanner integrated
- AC withstand voltage: 0.050 kV to 5.000 kV; up to 150 VA; max. 30 mA; 50/60 Hz sine wave
- DC dielectric strength: 0.050 kV to 6.000 kV; up to 50 W; max. 10 mA
- Isolation resistance (IR): Test voltage 0.050 kV to 1.000 kV DC; measuring range up to 10 GΩ
- Resolution/accuracy: Voltage resolution 1 V; typical accuracy ±(1 % of target + 5 V)
- Measurement display: 4.3" color LCD (480 × 272) with complete status and result display
- User guidance: Direct function keys, rotary encoder, highly visible status LEDs
- Scanner channels: 8 outputs, rear-guided; interrupt detection per channel
- Channel modes: GPT-9503: H/X; GPT-9513: H/L/X
- Safety features: Zero-start, interlock, post-discharge, ARC detection
- Automation & I/O: Signal I/O (start/stop/status), RS-232C, USB device; USB host for setup export/import & screenshots
- Statistics: Counter for total tests and missing parts (NO-GO/FAIL)
- Mains supply: AC 100-240 V ±10 %, 50/60 Hz
- Dimensions/weight: approx. 320 (W) × 120 (H) × 435 (D) mm; approx. 11 kg
- Typical scope of delivery: Power cable, HV test lead (black/red), 8× channel leads for the scanner (depending on model)
