GW Instek DAQ-9600-GPIB | Datenlogger- / Schaltsystem, Mainframe, Grundgerät, 3 Slots, USB, LAN, GPIB

Manufacturer number: DAQ-9600-GPIB

GW Instek DAQ-9600-GPIB | Datenlogger-Schaltsystem, Mainframe, Grundgerät mit 3 Slots für Module DAQ-90x, USB, LAN, GPIB.

  • Display: 4.3" Farb TFT LCD
  • Anzahl Slots: 3
  • Sample Rate: max 10 kSa/s
  • Interner Speicher: 100k Samples
  • Messungen Spannung:
    • Messbereich: 100 mV – 600 V DC || 100 mV – 300 V AC
    • Auflösung: 0.1 µV – 1 mV
    • Genauigkeit: 0,0035% DC || 0,05% AC
  • Frequenz: 3 Hz – 300 kHz
  • Messungen Stromstärke:
    • Messbereich: 1 µA – 2 A DC || 100 µA – 2 A AC
    • Auflösung: 1 pA – 1 µA DC || 100 pA – 1 µA AC
    • Genauigkeit: 0,05% DC || 0,10% AC

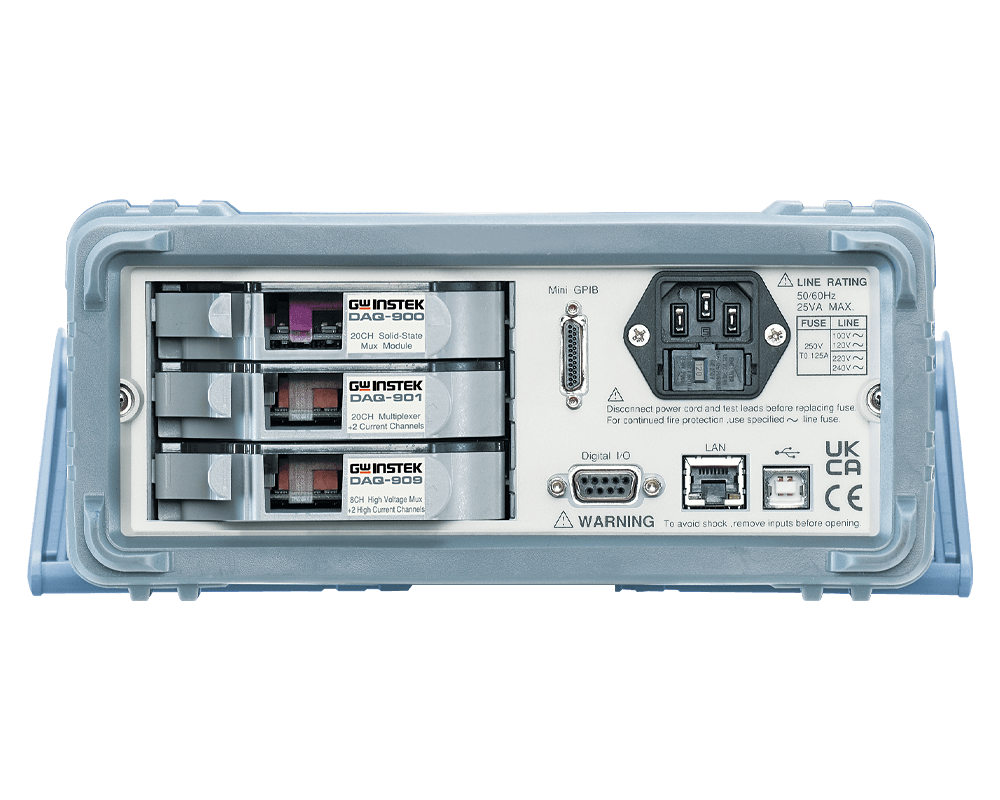

  • Schnittstellen: Digital I/O, LAN, USB host/device, Mini GPIB (optional auch ohne GPIB erhältlich, DAQ-9600)
  • Abmesssungen (H x B x T): 107 mm x 267 mm x 380 mm
  • Gewicht: 4,5 kg

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Detaildescription

DAQ-9600-GPIB | Datenlogger- / Schaltsystem, Mainframe, Grundgerät, 3 Slots, USB, LAN, GPIB

Das GW Instek Datenerfassungssystem DAQ-9600 ist ein 3-Slot Mainframe mit eingebautem 6 1/2-stelligen Multimeter und verfügt über fünf hochwertige Module, um Ihnen eine effiziente und genaue Datenerfassung zu ermöglichen.

Ihre Datenerfassung wird durch die Protokollierung und Beobachtung der Ergebnisse in einer Vielzahl von Anzeigeoptionen zur einfachen Analyse gesteuert. Die kostenlose DAQ-Software »DAQ-Data Logger« unterstützt Sie bei der Steuerung der Messkanäle für Ihre spezifischen Testkonfigurationen von mehreren Datenerfassungseinheiten.

  • Großes 4,3 Zoll TFT-Farbdisplay
  • 3-Slot Mainframe mit eingebautem 6 ½-stelligem DMM
  • Grundgenauigkeit von 0,0035% DCV
  • 5 wählbare Switch-Module
  • Bis zu 450 Kanäle/s Scanrate
  • Bis zu 100k Samples interner Speicher
  • Misst und konvertiert 14 verschiedene Eingangssignale:
    • Temperatur mit Thermoelement, RTDs und Thermistor; Gleich-/Wechselspannung; 2- und 4-Leiter-Widerstand; Frequenz und Periode; Gleich-/Wechselstrom und Kapazität; direkte Dehnung und Brückendehnung
  • Mit dem DAQ970A kompatible Befehle
  • USB-Speicher unterstützt Kopieren/Protokollieren von Daten im Standalone-Betrieb
  • Schnittstellen: Digit I/O, LAN, USB-Host/Gerät und Mini-GPIB (optional)
  • Kostenlose PC-Software DAQ-Data Logger, ermöglicht einfache Konfiguration und Steuerung von Tests
