Graphtec Data logger, 8-channel, galvanically isolated, 1 µs, TRMS according to CAT II, 4 GB Flash | GL980-EU

Name: Data logger, 8-channel, galvanically isolated, 1 µs, TRMS according to CAT II, 4 GB Flash | GL980-EU
Brand: Graphtec
SKU: GL980-EU
Price: 3840.0 EUR
Availability: OutOfStock

Manufacturer number: GL980-EU

Delivery time upon request

€3,840.00

plus VAT. €4,569.60 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.

Graphtec GL980 | High speed data logger (midi LOGGER) 8 channel simultaneous 500V RMS, sampling rate 1µs to 1 min USB, LAN.

Extremely compact device dimensions and low weight
8 isolated BNC and screw multifunction inputs for volt, temperature, humidity, pulses, logic
Voltage measuring range: 20 mV to 500 V, True-RMS 10 mV to 250 V
Frequency range: DC to 200 kHz
Temperature measurement via thermocouples K, J, E, T, R, S, B, N, W (adjustable)
Moisture measurement from 0 to 100% RH (option B-530)
Current measurement via external current clamps / current transformers with U-Out
4 inputs suitable for pulses or logic
1 trigger input
Alarm outputs
Sampling rate: 1 µs to 1 min.
high speed simultaneous sampling on 8 channels
16 bit resolution
Display: 7 inch (17.78 cm) TFT color LCD (WVGA: 800 x 480px)
User-friendly operation
Multilingual menu (German, French, English, etc.)
Adjustable white or black background
Math functions: Average / Peak / Max. / Min. / RMS
Timer operation: time and date, daily and hourly
Suitable and designed for operation with 2 batteries
Data recording on 4 GB RAM internal memory
Data recording on memory stick and / or PC
High-speed USB / LAN data transfer to the PC
Web server function (can be operated via LAN)
Memory stick slot
optionally up to 2 battery packs
Weight 1.4 kg
Dimensions: W 256 x H 161 x D 83 mm

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Accuracy temperature:	0,18°F
Accuracy voltage measurement:	0,001mV - 0,1V
Alarm outputs:	4
Article number:	GL980-EU
Connection types:	BNC und Schraub-Multifunktionseingänge
Dimensions (L x W x H) (mm):	83 x 256 x 161
Display:	7" TFT Farbdisplay (WVGA 800x480px)
Interfaces:	Ethernet, USB
Measured value memory:	4GByte Flash
Model:	GL980-EU
Number of channels:	8
Resolution (bit):	16
Special features:	Datenaufzeichnung auf Memory Stick und/oder PC
Temperature sensors Types:	K, J, E, T, R, S, B, N, W (einstellbar)
Voltage measuring range:	20 mV - 500 V
Weight (kg):	1.4

Documents & Downloads

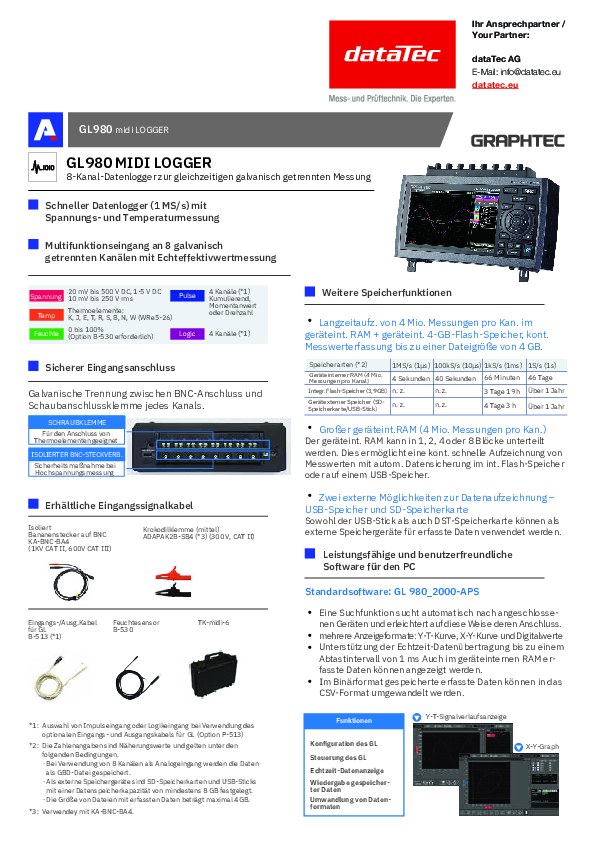

Datasheet

pdf | 0.22 MB

Detaildescription

Data logger, 8-channel, galvanically isolated, 1 µs, TRMS according to CAT II, 4 GB Flash | GL980-EU

The GL980 is a compact data recorder (data logger) with multifunctional inputs and excellent mobility. The scope of delivery also includes a housing rubber protection (not shown) for use in more robust environments.

The data logger has 8 isolated and simultaneously working multi-function inputs / connections, selectable via screw terminals or BNC sockets. Thanks to the high sampling rate, events of up to 1µs with 16 bit resolution can be recorded simultaneously across all channels. The logger can also be used as an XY recorder with a max. up to 4 measuring channels. The digital measurement data can easily be transferred to documentation.

Lieferumfang

Data logger
Housing rubber protection
Power supply / AC adapter 230 V
comfortable operating, evaluation, logging and documentation software for PC operating system
