FLUKE 323 | TRMS current clamp multimeter, digital, 4-digit AC, 400A

Name: 323 | TRMS current clamp multimeter, digital, 4-digit AC, 400A
Brand: FLUKE
SKU: FLUKE-323
Price: 155.21 EUR
Availability: InStock

Manufacturer number: FLUKE-323

Delivery time upon request

€155.21

% €187.00 (17% saved)

plus VAT. €184.70 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Fluke 323 | True RMS clamp meter.

AC current measurement up to 400 A.
DC and AC voltage measurement up to 600 V.
True rms values of AC voltage and current for precise measurements with non-linear signals
Resistance measurement up to 40 kΩ with continuity detection
Slim, ergonomic design
Large, easy to read display
Safety specification according to CAT IV 300V and CAT III 600 V
Hold button
Dimensions: H 207 x W 75 x D mm
Max. Cable diameter: 30 mm
Weight 265 g
Measurement category according to EN 61010-1: CAT III 600 V, CAT IV 300 V

Technical Data

Accuracy current measurement AC/DC:	AC ±2 %
Accuracy voltage measurement AC/DC:	±1,5 % / ±1 %
Article number:	4152628
Current measuring range AC/DC:	AC 100 mA - 400 A
Dimensions (L x W x H) (mm):	207 x 75 x 34
Diode test / continuity test:	No / Yes
Direction of rotation:	No
Enclosure (mm):	30
Frequency measuring range:	No
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	No / No
Model:	FLUKE-323
Number of positions:	4
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	100 mΩ - 4 kΩ
Temperature measuring range:	No
Voltage measuring range AC/DC:	100 mV - 600 V / 100 mV - 600 V
Warranty (years):	2
Weight (kg):	0.45

Description

323 | TRMS current clamp multimeter, digital, 4-digit AC, 400A

The Fluke 323 True RMS Clamp Meter offers many functions in a compact design.
True effective value measurements and optimized ergonomics make the current clamps of the 320 series the most important measuring devices for installation and troubleshooting in industrial and building technology applications. Fluke clamp meters are used to check circuits, switches, fuses and contacts for the presence of load current, AC voltage or continuity. These compact and robust clamp meters are ideal for current measurements up to 400 A in confined control cabinets.

Scope of Delivery:

Clamp meter, test leads, padded carrying case and user manual

Alternate products

Benning
044063

CM1-3 clamp meter, digital, RMS 3.5 digits, AC, 200A, CAT IV 600V

Delivery time upon request

€156.00

FLUKE
116 / 323KIT

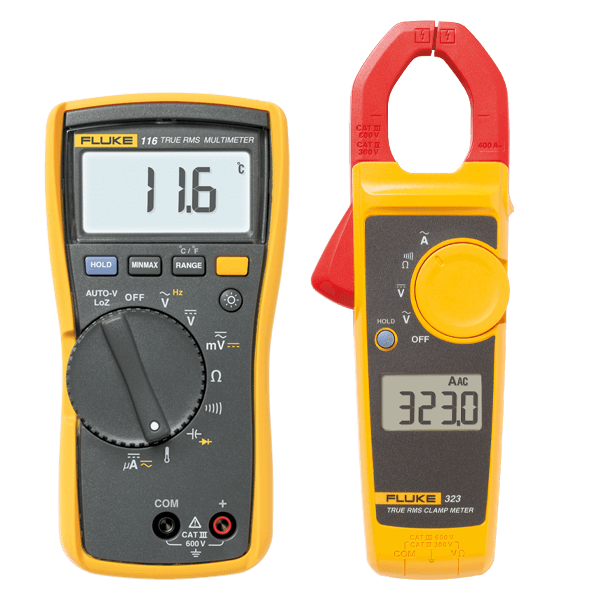

Fluke HVAC True RMS Multimeter and Clamp Meter Combo Kit
