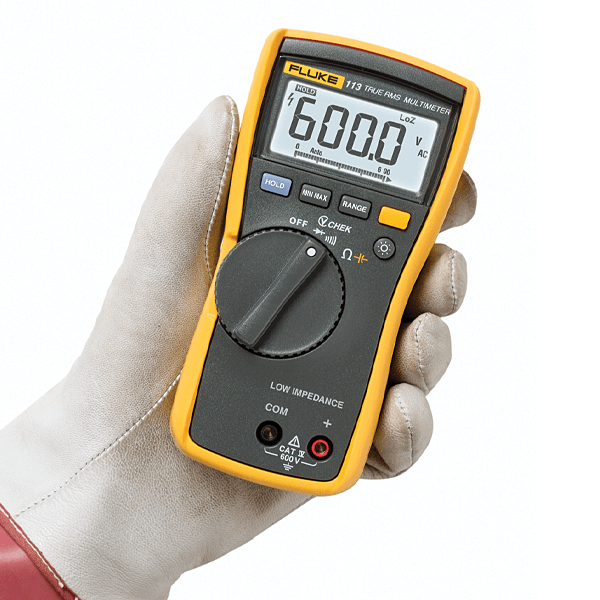

Fluke 113 | 3 ¾ digit real-effective digital handheld multimeter for installation tests.
- 3-digit display, 6000 digits, 4 updates / s
- True r.m.s. measurements for accurate measured values with non-linear loads
- Large display with background lighting for easy reading of the measured values even in dark surroundings
- Min / Max function for recording signal fluctuations
- Diode test for testing universal germanium, silicon and power diodes
- Integrated holster with measuring tip holder
- Automatic and manual range selection
- Meets the safety requirements according to CAT III 600 V.
- Suitable for the optionally available magnetic hanger TPAK for hands-free operation
- Weight 0.55 kg
- Dimensions: W 167 mm x H 84 mm x D 46 mm
- 3 year guarantee
Technical Data
Analogue segment display: | Ja |
---|---|
Article number: | 3088053 |
Backlight: | Ja |
Basic precision: | 3% |
Capacity measuring range: | 1000nF - 9999µF |
Current measuring range AC/DC: | Nein / Nein |
Data memory / logger: | Nein / Nein |
Dimensions (L x W x H) (mm): | 167,1 x 85,1 x 46 |
Diode test / continuity test: | Ja / Ja |
Display Hold / Auto-Hold: | Ja / Ja |
Display resolution: | 6000 |
Electrical safety: | CAT IV 600V |
Frequency measuring range: | Nein |
Interfaces: | Keine |
Min. / Max. Recording: | Ja / Ja |
Model: | FLUKE-113 EUR |
Number of positions: | 3.75 |
Resistance measuring range: | 600Ω - 60kΩ |
Temperature measurement ( PT100 / Type K / Type J): | Nein |
True effective measurement TRMS: | Ja |
Voltage measuring range AC/DC: | 6V - 600V / 6V - 600V |
Warranty (years): | 3 |
Weight (kg): | 0.404 |
Documents & Downloads
Detaildescription
113 | Multimeter, hand 3 3/4 digits
The Fluke 113 Digital Multimeter is a quick and easy way to perform basic tool setup and reconnection tests. This digital multimeter is easy to use and has features that can quickly identify almost any electrical problem. Signal fluctuations can be recorded using the min / max function.
The Fluke 113 digital multimeter can be used to perform diode tests. It also offers both automatic and manual ranging. This digital multimeter, with its performance features such as compliance with the latest safety standards and a much larger and easier-to-read display with backlighting, is an essential part of every tool case.
Lieferumfang
- Multimeter
- 9 V battery
- Test leads
- Manual
