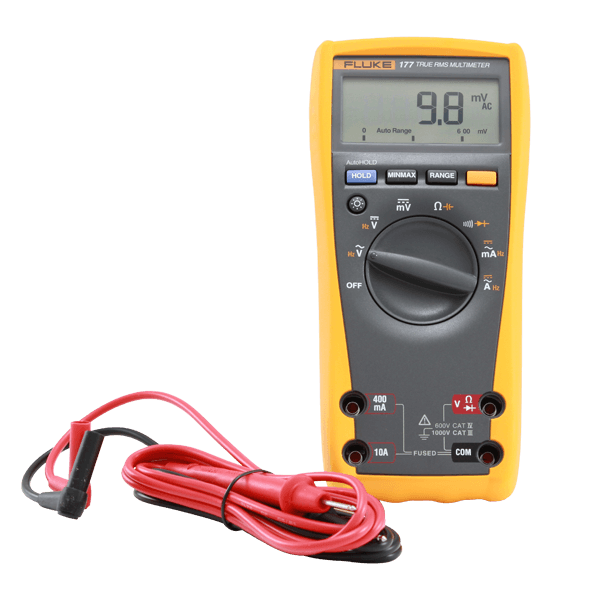

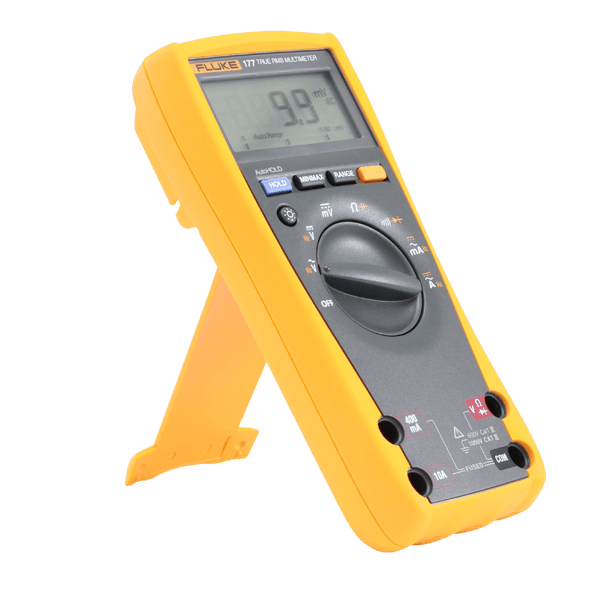

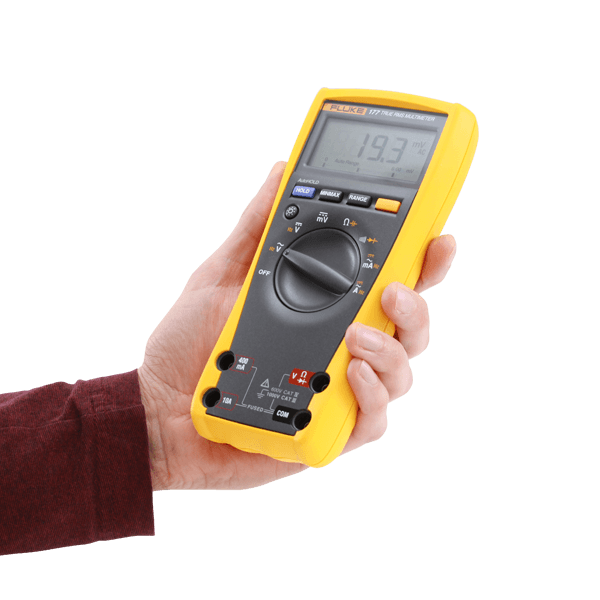

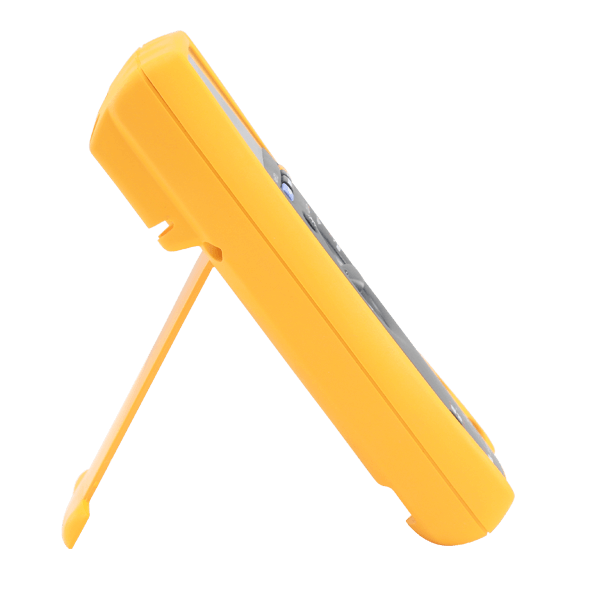

Fluke 177 | Digital real effective handheld multimeter.
- True rms measurement of voltage and current
- 0.09% basic accuracy
- 6,000 digits resolution
- Digital display with analog segment display and background lighting
- Manual and automatic range selection
- Display Hold and Auto Hold
- Frequency and capacitance measurement
- Min / max / mean value recording
- Smoothing mode for more stable measured values with varying input signals
- Easy battery change without opening the housing
- Calibration with the housing closed via the front panel

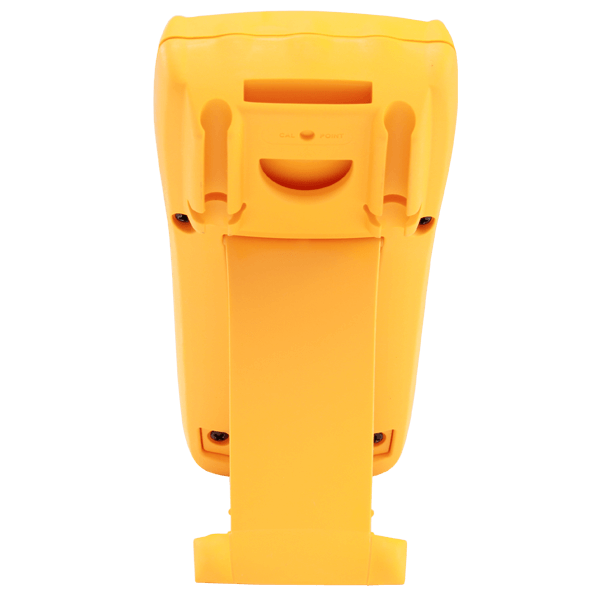

- Ergonomic housing with integrated holster
- EN 61010-1 CAT III 1000 V / CAT IV 600 V
- Measures twice as fast as other multimeters
- Weight 0.42 kg
- Dimensions: W 89 mm x H 190 mm x D 45 mm
- Warranty: lifelong
Technical Data
Analogue segment display: | Ja |
---|---|
Article number: | 1592874 |
Backlight: | Ja |
Basic precision: | 3% |
Capacity measuring range: | 1000nF - 9999µF |
Current measuring range AC/DC: | 60mA - 10A / 60mA - 10A |
Data memory / logger: | Nein / Nein |
Dimensions (L x W x H) (mm): | 185 x 90 x 43 |
Diode test / continuity test: | Ja / Ja |
Display Hold / Auto-Hold: | Ja / Ja |
Display resolution: | 6000 |
Electrical safety: | CAT III 1000V, CAT IV 600V |
Frequency measuring range: | 99,99Hz - 99,99kHz |
Interfaces: | Keine |
Min. / Max. Recording: | Ja / Ja |
Model: | FLUKE-177 EGFID |
Number of positions: | 3.5 |
Resistance measuring range: | 600Ω - 50MΩ |
Temperature measurement ( PT100 / Type K / Type J): | Nein |
True effective measurement TRMS: | Ja |
Voltage measuring range AC/DC: | 600mV - 1000V / 600mV - 1000V |
Warranty (years): | 30 |
Weight (kg): | 0.42 |
Documents & Downloads
Detaildescription
177 | Multimeter, handheld, 3 3/4 digits, 6000 digits, 1000V, CAT III 1000V
With its high accuracy, impressive performance features, ease of use, safety and reliability, the Fluke 177 sets standards in the field of universal multimeters.
Lieferumfang
- Multimeter
- Test leads with 4 mm measuring tips
- 9 V battery
