Rohde&Schwarz 1350.4444.10 | EPL1000 Radio Interference Test Receiver / EMI Test Receiver, 5 kHz - 30 MHz

Manufacturer number: 1350.4444.10

Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10
Rohde&Schwarz 1350.4444.10

Delivery time upon request

On Request

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Request educational price
Highlights Documents & Downloads Description Related Articles

Rohde & Schwarz 1350.4444.10 | EPL1000 Radio Interference Test Receiver / EMI Test Receiver, 5 kHz - 30 MHz.

  • Display: 10.1 inch TFT color display
  • RF input: 50 Ω, N connector (female), integrated pulse limiter
  • Frequency range: 5kHz - 30MHz
  • Attenuator: 0 dB - 55 dB, in 1 dB steps
  • Preset bandwidths (-6 dB), nominal: 10 Hz - 150 kHz: fixed lowpass filter // 150 kHz - 30 MHz: 38 MHz, fixed bandpass filter
  • Preamp: Switchable, 20 dB (nom.)
  • EMI Filter (-6dB): 10/100/200Hz // 1/9/10/100/120kHz // 1MHz
  • Dimensions (H x W x D): 186mm x 408mm x 235mm
  • Weight: 6.9 kg
  • Recommended calibration interval: 1 year

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

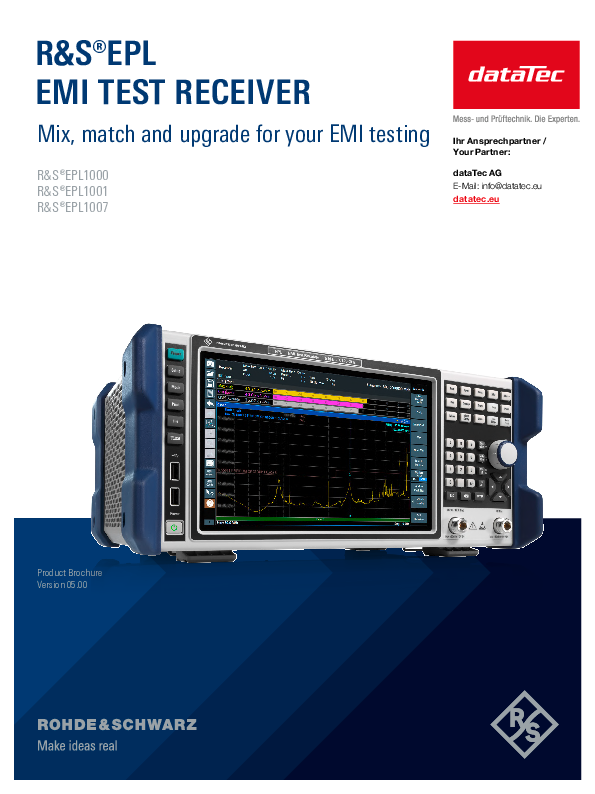

Brochure
pdf | 1.55 MB
Datasheet
pdf | 0.54 MB
Userguide
pdf | 9.89 MB

Detaildescription

1350.4444.10 | EPL1000 Radio Interference Test Receiver / EMI Test Receiver, 5 kHz - 30 MHz

The Rohde & Schwarz EPL1000 radio interference test receiver is a full compliance analyzer for fast and precise identification of electromagnetic interference (EMI) from 5 kHz to 30 MHz. Typical areas of application are pre-compliance measurements, pre-certifications and certifications according to IEC, EN, CISPR and FCC.

The EMI Test Receiver meets the requirements of CISPR16-1-1 and supports the 6 dB bandwidth in decimal steps required by the MIL-STD-461 and DIO-160 standards. With the additional features of a spectrum analyzer and a signal and tracking generator, the EPL1000 is ideal for various laboratory applications.

With its very fast time domain scan, the EPL1000 measures all frequencies of the CISPR bands A and B at once. In this way, even large frequency segments can be checked seamlessly over longer periods of time. The built-in preselection ensures a high dynamic range and enables the detection of short pulses. The R&S EPL1000 offers a spectrogram function and an IF analysis for detailed signal analysis.

The automation simplifies the measurements and ensures exact reproducibility of the test sequences. For example, all lines connected to a Rohde&Schwarz artificial network (LISN) can be checked at the push of a button. The comparison with the configured limit values also takes place automatically and the R&S EPL1000 displays the result of the entire measurement as PASS/FAIL. With the integrated report generator, the result and the measurement details can be easily saved and printed out.

With the optional integrated signal generator with tracking generator function, the transfer functions of the components used for the measurements can be determined quickly and easily without the need for an additional device.

The Rohde & Schwarz EPL1000 can be used very flexibly thanks to battery operation, the 12 V to 24 V DC input and the practical carrying case.

Accessoires (12 products )

Rohde&Schwarz 1350.4309.02
Rohde&Schwarz 1350.4309.02

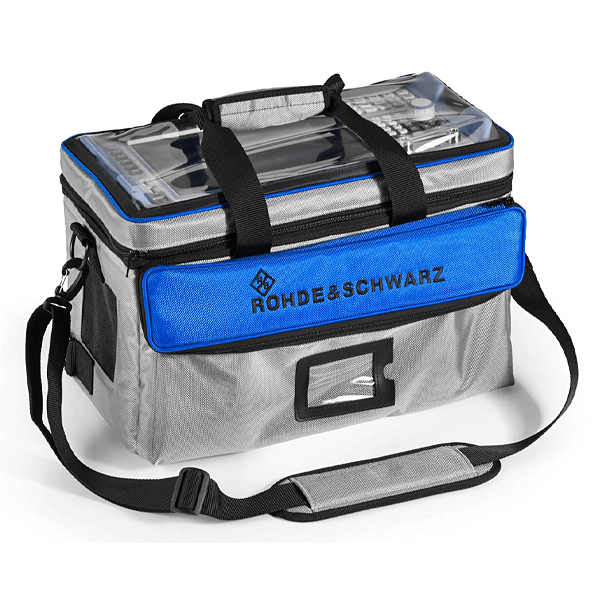

EPL1-Z2 carrying case for transport and operation of the EPL1000
