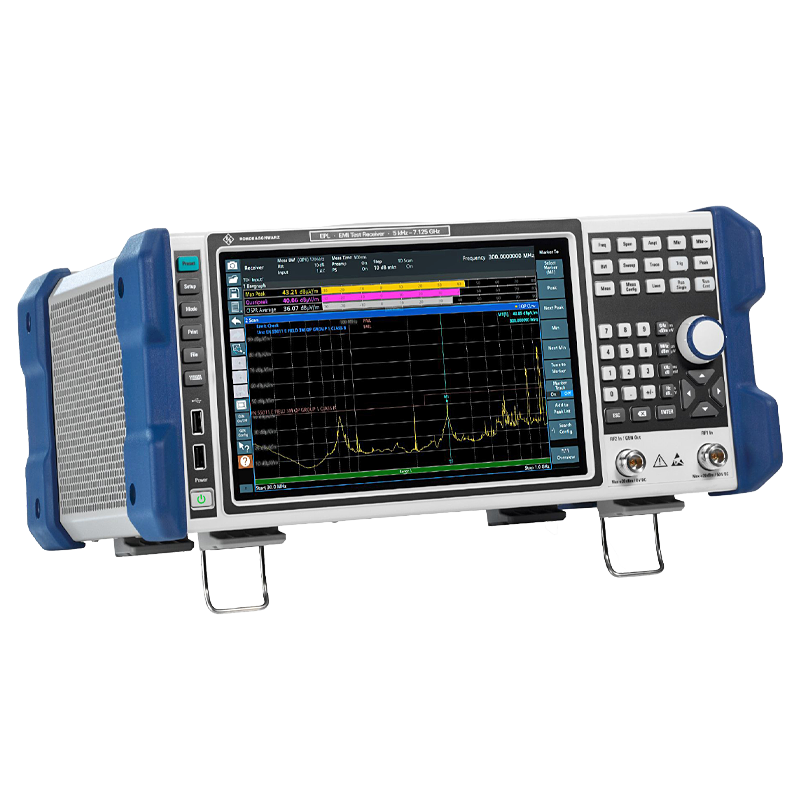

Rohde&Schwarz EPL1001 | Radio Interference Measuring Receiver / EMI Test Receiver, 5 kHz - 1 GHz (1350.4444.11)

Manufacturer number: 1350.4444.11

EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
EPL1001
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Rohde & Schwarz 1350.4444.11 | EPL1001 Radio interference test receiver / EMI test receiver, 5 kHz - 1 GHz.

Technical Data

Documents & Downloads

Brochure
pdf | 0.60 MB
Datasheet
pdf | 1.83 MB
Userguide
pdf | 5.12 MB
Start guide
pdf | 0.86 MB
Brochure
pdf | 0.60 MB
Datasheet
pdf | 1.83 MB
Userguide
pdf | 5.12 MB
Start guide
pdf | 0.86 MB

Description

EPL1001 | Radio Interference Measuring Receiver / EMI Test Receiver, 5 kHz - 1 GHz (1350.4444.11)

The Rohde & Schwarz EPL1000 radio interference test receiver is a "full compliance analyzer" for fast and precise identification of electromagnetic interference (EMI) from 5 kHz to 30 MHz. Typical applications are pre-compliance measurements, pre-certifications and certifications according to IEC, EN, CISPR and FCC.

The EMI Test Receiver fulfills the requirements of CISPR16-1-1 and supports the 6 dB bandwidths in decadic steps required by the MIL-STD-461 and DIO-160 standards. With the additional functions of a spectrum analyzer as well as a signal and tracking generator, the EPL1000 is ideal for various laboratory applications.

With its very fast time domain scan, the EPL1000 measures all frequencies of CISPR bands A and B at once. This means that even large frequency segments can be tested without gaps over longer periods of time. The built-in preselection ensures a high dynamic range and enables the detection of short pulses. For detailed signal analysis, the R&S EPL1000 offers a spectrogram function and an IF analysis.

The automation simplifies the measurements and ensures exact reproducibility of the test sequences. For example, all cables connected to a Rohde&Schwarz network simulation (LISN) can be tested at the touch of a button. The comparison with the configured limit values is also performed automatically, and the R&S EPL1000 displays the result of the entire measurement as a PASS/FAIL. With the integrated report generator, the result and the measurement details can be easily saved and printed out.

The optional integrated signal generator with tracking generator function allows the transfer functions of the components used for the measurements to be determined quickly and easily without the need for an additional device.

The Rohde & Schwarz EPL1000 can be used very flexibly thanks to the battery operation, the 12 V to 24 V DC input and the practical carrying case.

The EPL1001 variant presented here has a frequency range of 5 kHz - 1 GHz. Alternatively, the EPL1000 model offers a frequency range of up to 30 MHz and the EPL1007 model up to 7.125 GHz.

.

Accessoires

EPL1-Z2
Rohde&Schwarz
EPL1-Z2
Carrying case for transport and operation EPL1000 (1350.4309.02)
Delivery time upon request
€465.00
EPL1-Z3
Rohde&Schwarz
EPL1-Z3
H-Style shoulder strap for EPL1000 requires option: FPL1-Z2 (1350.4315.02)
Delivery time upon request
€170.00
EPL1-Z6
Rohde&Schwarz
EPL1-Z6
19" Rackmount Kit EPL1000 (1350.4321.02)
Delivery time upon request
€435.00
FPL1-Z4
Rohde&Schwarz
FPL1-Z4
Replacement battery pack, for FPL1000, EPL1000 & ZNL, requires FPL1-B31 (1323.1677.02)
Delivery time upon request
€835.00
EZ-21
Rohde&Schwarz
EZ-21
Control cable, length: 3 m, for connecting EMC measuring receivers and network simulations (1107.2087.03)
Delivery time upon request
€170.00
EZ-21
Rohde&Schwarz
EZ-21
Control cable, length: 10 m, for connecting EMC measuring receivers and network simulations (1107.2087.10)
Delivery time upon request
€210.00
EPL1-B91
Rohde&Schwarz
EPL1-B91
Internal generator, 5kHz - 30MHz for EMI Test Receiver EPL1000 (1350.4073.02)
Delivery time upon request
€1,510.00
FPL1-B4
Rohde&Schwarz
FPL1-B4
Frequency reference, OCXO, for FPL1000 / EPL1000 (1323.1902.02)
Delivery time upon request
€1,170.00
FPL1-B10
Rohde&Schwarz
FPL1-B10
Interface, GPIB, for FPL1000 / EPL1000 (1323.1890.02)
Delivery time upon request
€685.00

Alternate products

EPL1000
Rohde&Schwarz
EPL1000
Radio Interference Measuring Receiver / EMI Test Receiver, 5 kHz - 30 MHz (1350.4444.10)
Delivery time upon request
On Request
EPL1007
Rohde&Schwarz
EPL1007
Radio Interference Measuring Receiver / EMI Test Receiver, 5 kHz - 7,125 GHz (1350.4444.17)
Delivery time upon request
On Request

Recommendations

FPL1-B31
Rohde&Schwarz
FPL1-B31
Li-Ion battery pack for internal battery compartment, including charging module FPL1000 / EPL1000 (1323.1725.02)
Delivery time upon request
€1,840.00
FPL1-B30
Rohde&Schwarz
FPL1-B30
DC power supply for 45627 V supply, FPL1000 / EPL1000 (1323.1877.02)
Delivery time upon request
€685.00
FPL1-B10
Rohde&Schwarz
FPL1-B10
Interface, GPIB, for FPL1000 / EPL1000 (1323.1890.02)
Delivery time upon request
€685.00
FPL1-B4
Rohde&Schwarz
FPL1-B4
Frequency reference, OCXO, for FPL1000 / EPL1000 (1323.1902.02)
Delivery time upon request
€1,170.00
EPL1-B91
Rohde&Schwarz
EPL1-B91
Internal generator, 5kHz - 30MHz for EMI Test Receiver EPL1000 (1350.4073.02)
Delivery time upon request
€1,510.00
EPL1-B19
Rohde&Schwarz
EPL1-B19
Replacement SSD including control unit for EMI Test Receiver EPL1000 (1350.4450.02)
Delivery time upon request
€810.00
EMCPC
Rohde&Schwarz
EMCPC
ELEKTRA license dongle, contains chip card and chip card reader (SW license) (5601.0018.02)
Delivery time upon request
€355.00
