Chauvin Arnoux CA 6652 | EVSE test adapter for AC charging stations type 2 plug (P01191309).

Documents & Downloads

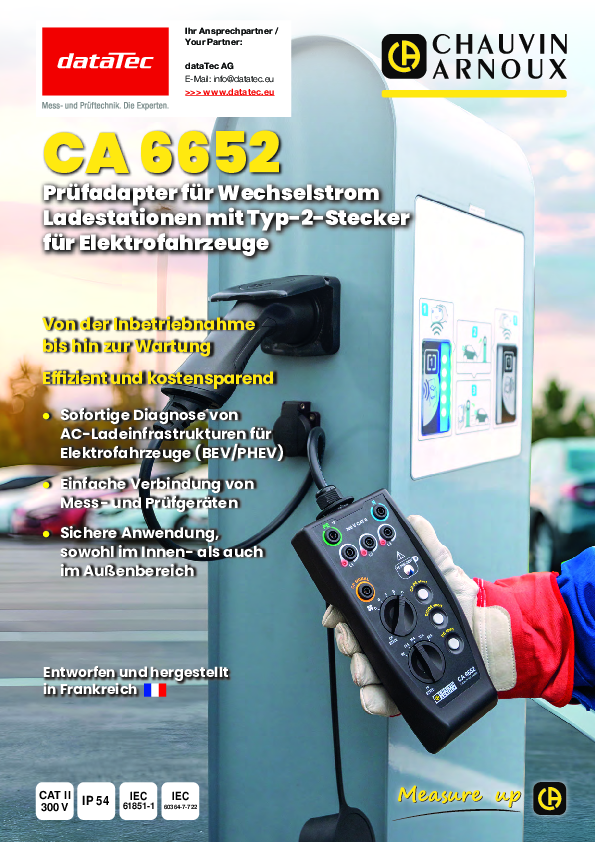

Datasheet

pdf | 2.29 MB

Description

CA 6652 | EVSE Test Adapter for AC Charging Stations Type 2 Plug (P01191309)

The Chauvin Arnoux CA 6652 is an EVSE test adapter with type 2 plug for AC charging stations. It can be used as a stand-alone product and is part of the e-mobility solutions offered by Chauvin Arnoux.

The CA6652 is specifically designed to meet the needs of the various players in the EVSE-AC sector:

Manufacturers for the qualification of e-charging stations
Installers for the construction and commissioning of e-charging parks
Service and maintenance companies for charging infrastructures
Testing organizations for initial and re-inspection
Educational institutions for educational events via EVSE

As a stand-alone device or integrated into e-mobility solutions, the CA 6652 is an essential component for smart, reliable and sustainable charging applications for BEVs

, reliable and sustainable charging applications for BEV/BHEVs.

Features:

Equipped with a type 2 plug in accordance with IEC 62196-2
Dangerous voltage detection on PE by contact electrode
Light indicator for single-phase and three-phase voltages
Simulation of the states of electric vehicles: A, B, C, D (Control Pilot CP)
Simulation of maximum permissible load on the cable: NC, 13A, 20A, 32A, 63A (Proximity Pilot PP)
Simulation of fault conditions: Short circuit CP-PE, diode short circuit CP-PE, PE interruption
4mm sockets for easy connection of measuring and test devices

General specifications:

Usage: -20 °C ... +55 °C
Protection class: IP54 / IP40
Dimensions: 221 x 100 x 44 mm
Weight: approx. 850g

Compliance with standards / safety:

Adapter: IEC / EN 61010-2-031
Category: 300V CAT II
EMC: IEC / EN 61326-1

EVSE sets:

As part of the EVSE sets, the CA 6652 with an installation tester enables tests in accordance with IEC 60364-7-722.

Additional features:

Developed and manufactured in France
Supplied in a carrying case with quick start guide, safety data sheet and test certificate
3-year warranty

Strengths:

Compact
Ergonomic design
Compliant with IEC 61851-1, IEC 60364-7-722
Indoor and outdoor use
Instant diagnosis of AV charging station behavior (EVSE)
Safety checks of the charging station thanks to the e-mobility solutions of the associated EVSE sets
