CAENels CT-200V | Current transformer, 200A, 0-FLUCS, DC- 100kHz voltage output with DB-9 connection

Name: CT-200V | Current transformer, 200A, 0-FLUCS, DC- 100kHz voltage output with DB-9 connection
Brand: CAENels
SKU: CT-200V
Price: 677.0 EUR
Availability: OutOfStock

Manufacturer number: CT-200V

Delivery time upon request

€677.00

plus VAT. €805.63 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.

CAENels CT200V | Current transformer, 200A, 0-FLUCS, DC- 100kHz voltage output with DB-9 connection. Ideal in conjunction with power meters / power meters / data loggers for measuring large currents.

Max. Conductor diameter: 30 mm
Converter ratio: 1: 1000 (0.05 V / A)
Input max. DC: ± 200 A
Input max. AC RMS: 141 A.
Polarity: bipolar
Bandwidth: DC - 100 kHz
Temperature coefficient: <2 ppm / K
Linearity: <15 ppm
Voltage output: max. ± 10 V
Output: DB-9 connector
Power supply: ± 15 V
Dimensions: 94 × 91 × 50 mm
Weight: 380 g

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

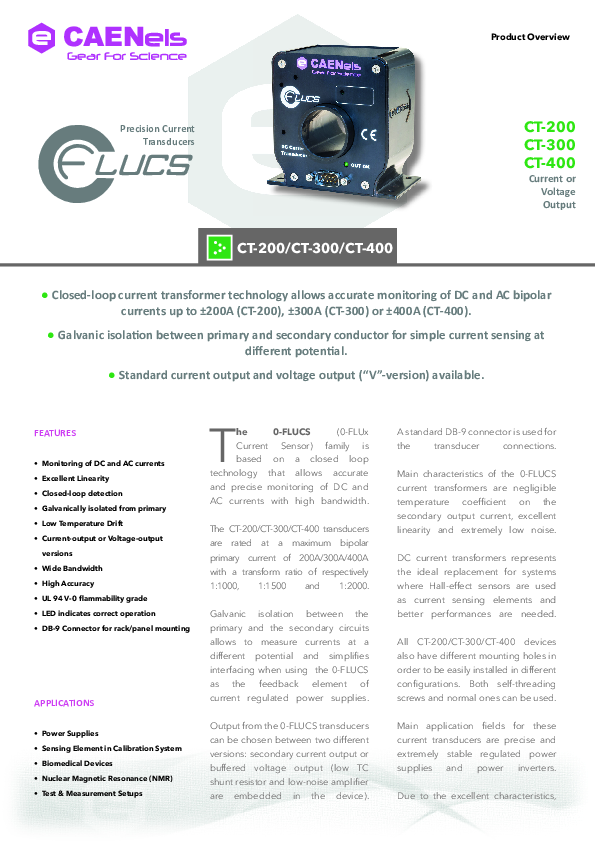

Datasheet

pdf | 0.68 MB

Detaildescription

CT-200V | Current transformer, 200A, 0-FLUCS, DC- 100kHz voltage output with DB-9 connection

0-FLUCS current transducers / current transformers in closed-loop technology for high-precision measurement of AC and DC currents. For monitoring and measuring DC and AC currents (up to 100 kHz bandwidth) with excellent linearity and extremely low temperature drift.
