Benning 044685 | CM 9-2 TRUE RMS precision and leakage current clamp with 1 μA AC resolution

Name: 044685 | CM 9-2 TRUE RMS precision and leakage current clamp with 1 μA AC resolution
Brand: Benning
SKU: 044685
Price: 527.55 EUR
Availability: InStock

Manufacturer number: 044685

Delivery time upon request

€527.55

% €635.60 (17% saved)

plus VAT. €627.78 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

BENNING 044685 | CM 9-2 TRUE RMS precision and leakage current clamp with 1 μA AC resolution, Bluetooth function and app for the highest demands on accuracy.

Display range: 6,000 (illuminated)
Basic accuracy: 1%
Current AC: 0.1 μA - 60 A
Interface: Bluetooth
Software: App (IOS, Android)
Filter function: device (1 kHz), low-pass filter (50 Hz - 60 Hz), without filter
Memory function: HOLD, MAX / MIN
Datalogger: App (IOS, Android)
Measuring method: TRUE RMS
Pliers opening max .: 40 mm
Measurement category: CAT IV 300 V

Technical Data

Accuracy current measurement AC/DC:	AC ±1 %
Article number:	044685
Current measuring range AC/DC:	AC 0.01 mA - 60 A
Dimensions (L x W x H) (mm):	230 x 100 x 46
Diode test / continuity test:	No / No
Direction of rotation:	No
Enclosure (mm):	40
Frequency measuring range:	No
Hold:	Yes
Measurement method:	TRMS
Min. / Max. Measurement:	Yes / Yes
Model:	Benning CM9-2
Number of positions:	4
Power factor:	Nein
Power measurement (active / apparent / reactive):	No / No / No
Resistance measuring range:	No
Temperature measuring range:	No
Warranty (years):	2
Weight (kg):	0.63

Description

044685 | CM 9-2 TRUE RMS precision and leakage current clamp with 1 μA AC resolution

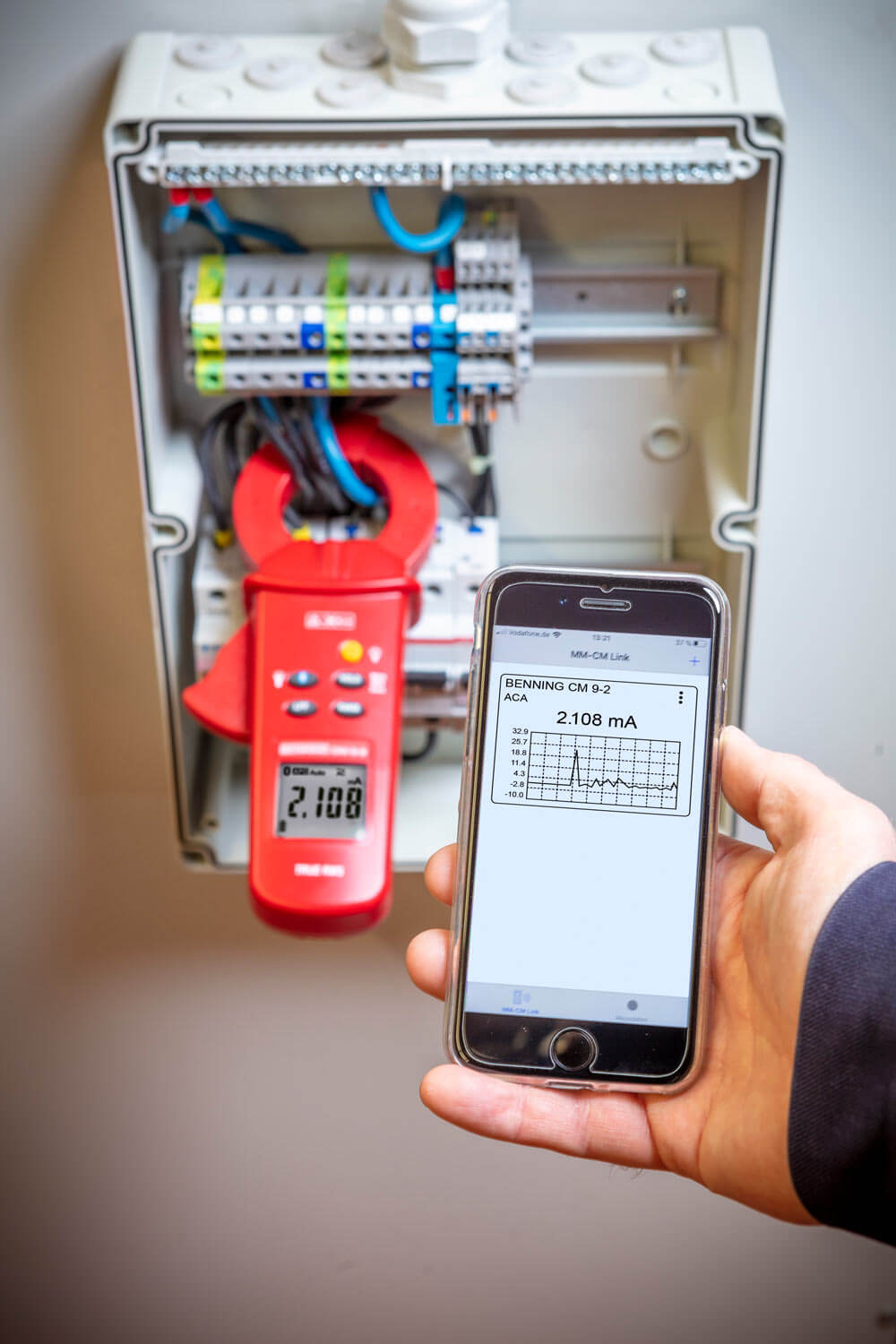

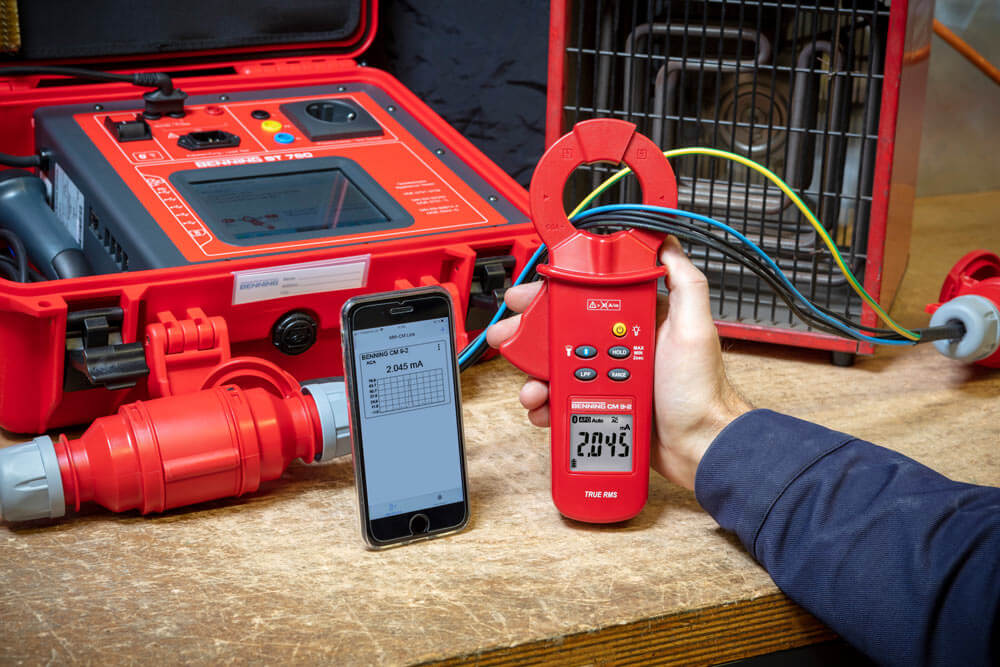

The Benning TRMS leakage current clamp CM 9-2 is suitable for measuring leakage, differential and protective conductor currents in electrical systems, devices and machines according to DGUV regulation 3. The CM 9-2 has an LPF low-pass filter (50 Hz - 60 Hz) for the suppression of high-frequency interference signals. Measured values can be displayed, saved or shared on the smartphone / tablet via the Bluetooth Low Energy 4.0 interface (in combination with the app).

Product features:

Measurement of leakage, differential and protective conductor currents in electrical systems (DIN VDE 0100/0105), devices (DIN VDE 0701-0702) and machines (DIN VDE 0113-1), DGUV regulation 3
Defined protection against magnetic fields according to DIN EN 61557-13, class 2
Device filter (1 kHz) according to DIN EN 61557-16 for testing electrical devices
