Benning 11002373 | PV 1000 Set for Commissioning and Periodic Testing of PV Systems up to 1,000 V

Manufacturer number: 11002373

11002373
11002373
11002373
11002373
11002373
11002373
Delivery time upon request

€949.00

plus VAT. €1,129.31 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Benning 11002373 | PV 1000 Set for Commissioning and Periodic Testing of PV Systems up to 1,000 V.

Technical Data

Documents & Downloads

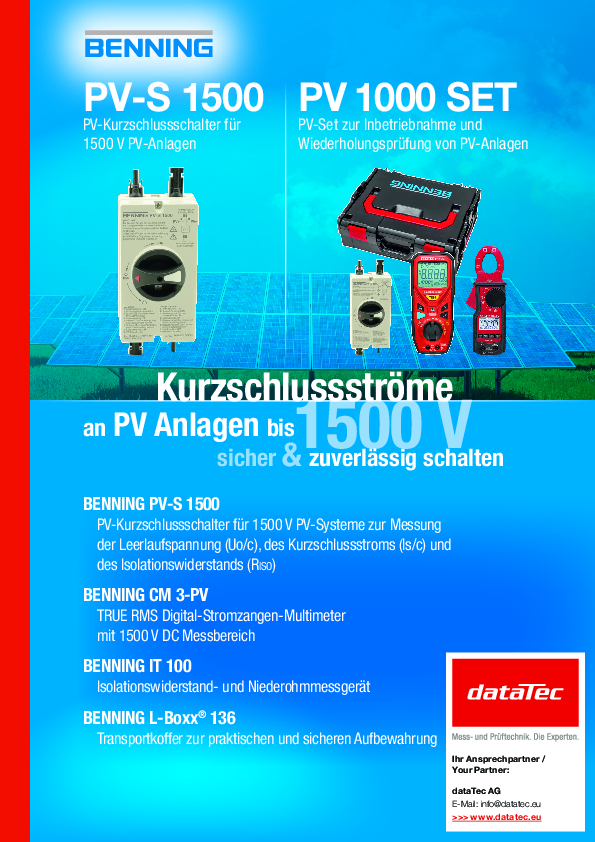

Datasheet
11002373
pdf | 1.05 MB

Description

11002373 | PV 1000 Set for Commissioning and Periodic Testing of PV Systems up to 1,000 V

The BENNING PV 1000 SET is a complete, practical test and measurement set for commissioning and recurring testing of photovoltaic systems up to 1000 V. It combines state-of-the-art measurement technology for voltage, current, insulation and low resistance in a robust, mobile package and meets the requirements of DIN EN 62446-1/-2 (VDE 0126-23-1/-2).

Ideal for installers, service technicians and experts, the set enables complete testing of all safety-relevant PV parameters: open-circuit voltage, short-circuit current, insulation resistance and protective conductor resistance. Thanks to the high-quality devices - including the BENNING PV-S 1500 short-circuit switch, the BENNING CM 3-PV current clamp multimeter and the BENNING IT 100 insulation and resistance measuring device - PV strings can be evaluated quickly, safely and reliably.

The BENNING L-Boxx 136 included in the set provides optimum protection for the equipment and makes it easy to transport around the construction site. The BENNING PV 1000 SET therefore offers a complete, professional solution for all measurement tasks relating to modern PV systems.

The BENNING PV 1000 SET is perfect for:

  • Commissioning new photovoltaic systems (standard test in accordance with DIN EN 62446)
  • Repeat tests as part of maintenance and service activities
  • Measurement of the PV-open-circuit voltage (Uoc) up to 1500 V DC
  • Determination of the short-circuit current (Isc) up to 23 A
  • Testing the insulation resistance with 500 V/1000 V test voltage
  • Low-resistance measurement of protective conductors with 200 mA test current
  • Safe short-circuiting of PV-strings up to 1500 V via the PV-S 1500 short-circuit switch

Technical features:

  • Tested in accordance with DIN EN 62446-1/-2 (VDE 0126-23-1/-2)
  • Open-circuit voltage up to 1500 V DC
  • Short-circuit current up to 23 A @ 1500 V
  • Insulation test with 500 V / 1000 V test voltage
  • Low-resistance measurement (RPE) with 200 mA test current
  • Measurement category: CAT IV 1000 V / CAT III 1500 V
  • PV-S 1500 Housing material: polycarbonate
  • PV-S 1500 Dimensions/weight: 179 × 94 × 82 mm / 700 g
  • Scope of delivery: CM 3-PV, IT 100, PV-S 1500, L-Boxx 136 with foam insert
