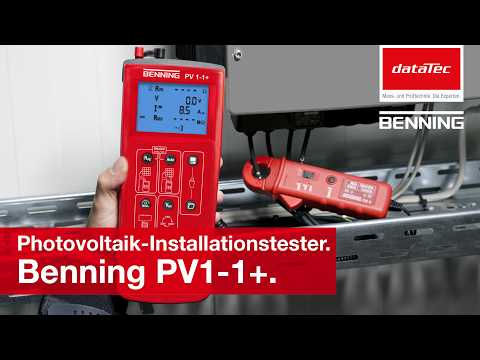

Benning PV1-1+ | Photovoltaic installation tester, 1-phase, DIN EN 62446 (VDE 0126-23) (05042101)

Manufacturer number: 05042101

Benning PV1-1+
Benning PV1-1+
Benning PV1-1+
Benning PV1-1+
Benning PV1-1+
Benning PV1-1+

Delivery time upon request

€1,490.00

% €1,798.50 (17.15% saved)

plus VAT. €1,773.10 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.
Request educational price
Highlights Documents & Downloads Description Scope Related Articles

BENNING PV 1-1+ | Battery-operated photovoltaic installation tester for mobile testing of grid-connected photovoltaic systems in accordance with DIN EN 62446 (VDE 0126-23).

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.21 MB
Userguide
pdf | 0.85 MB

Detaildescription

PV1-1+ | Photovoltaic installation tester, 1-phase, DIN EN 62446 (VDE 0126-23) (05042101)

The PV tester BENNING PV 1-1+ is a further development of the successful installation tester PV 1-1. Compared to its previous version, the 1-1+ has improved test compatibility of the latest technology PV modules with high efficiencies and offers 300% higher protection against transient short-circuit currents.

The Benning PV1-1+ is your faithful companion for commissioning, repeat testing and troubleshooting of PV systems DIN EN 62446 (VDE 0126-23).

Operation is quick and easy using the large, clear buttons.

Product features:

  • Understandable and clear display of all measurement results
  • Safe measurement connection even when the PV system supplies energy
  • Automatic test sequence (open-circuit voltage 1000 V DC, short-circuit current 15 A DC, insulation resistance)
  • Automatic display of voltage polarity with acoustic/visual warning in the event of incorrect polarity
  • Zero adjustment of the measuring lines so that they do not influence the measuring resistance
  • Measured value memory for 200 displays for (automatic) string-to-string comparison including warning in the event of a deviation of 5% of the open-circuit voltage and short-circuit current
  • USB interface and download software for creating test reports in MS Excel
  • ISO measurement result with good/bad display
  • Integrated real-time clock for storing measured values with date and time stamp
  • “WirelessSunLink” radio connection to the BENNING SUN 2 irradiation and temperature measuring device
  • Direct connection to all PV modules with MC4 or “Sunclix” connectors
  • Easy to use for network-independent and mobile tests
  • LC display with backlight
  • Automatic shutdown after 60 seconds
  • The test can relate to PV modules or the entire PV system

Lieferumfang

  • PV installation tester PV 1-1+
  • Transport/storage bag
  • Measuring lead set with test probes (L = 1.2 m, red/black)
  • Alligator clip set (red/black)
  • PV test leads for MC4 connectors (red/black)
  • PV measuring cables for Sunclix connectors (red/black)
  • USB cable
  • 6 x 1.5 Mignon batteries (AA, IEC LR6)
