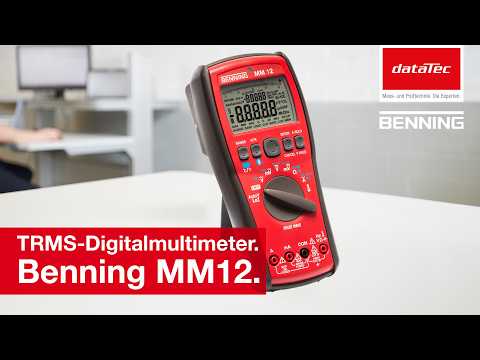

Benning 044088 | Multimeter MM12

Name: 044088 | Multimeter MM12
Brand: Benning
SKU: 044088
Price: 517.0 EUR
Availability: InStock

Manufacturer number: 044088

Delivery time upon request

€517.00

plus VAT. €615.23 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Benning 044088 | 4 stell-digit TRMS digital multimeter MM12 with data logger function.

Number of digits 4 3/4
Display resolution 40,000 / 4,000
Backlight yes
Analog segment display Yes
True RMS measurement TRMS AC, AC + DC
Basic accuracy 0.5%
Voltage measurement AC / DC 10 µV to 1000 V
AutoV for autom. AC / DC voltage detection
Current measurement AC / DC 10 µA to 10 A.
Resistance measurement 0.1 Ω to 40 MΩ
Capacitance measurement 0.01 nF to 40 mF
Type K temperature
Frequency measurement 0.1 Hz to 100 kHz
Functions: P-HOLD, REL, AVG, HFR, LoZ
Continuity / diode
Data logger function LOG (40,000 measured values, sampling rate: 1 s - 10 min.)
Memory function MEM (1,000 measured values, automatic storage when the measured value is stable and manually by pressing a button)
Min / max recording
Display hold / auto hold
Measurement category CAT IV 600 V, CAT III 1000 V
Bluetooth, USB interface
Dimensions in mm (W x H x D) 94 x 206 x 54
Weight in g 640
Incl. PC software for measured value transmission, serial data cable with USB connection, rubber protective frame, magnetic hanger, bag, battery set (4 x 1.5 V Mignon / AA), test leads and wire temperature sensor
Incl. Software APP for viewing, saving, sharing

Technical Data

Analogue segment display:	Yes
Article number:	044088
Backlight:	Yes
Basic precision:	0,5 %
Capacity measuring range:	0,01 nF - 40 mF
Current measuring range AC/DC:	10µA - 10A / 10µA - 10A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	206 x 94 x 54
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	4000
Electrical safety:	CAT IV 600 V
Frequency measuring range:	0,1 Hz - 100 kHz
Interfaces:	Bluetooth/USB optical
Min. / Max. Recording:	Yes / Yes
Model:	MM 12
Number of positions:	4.75
Resistance measuring range:	0,1 Ω - 40 MΩ
Temperature measurement ( PT100 / Type K / Type J):	Type K
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	10 µV - 1000 V / 10 µV - 1000 V
Warranty (years):	2
Weight (kg):	0.64

Description

044088 | Multimeter MM12

A precision digital multimeter for all demanding measuring tasks in industry and trade. Monitor, save and share measured values for further evaluation using the "BENNING MM-CM Link" app within your organization. Monitor up to 5 digital multimeters from a safe distance at the same time. For precise troubleshooting in electrical systems.
