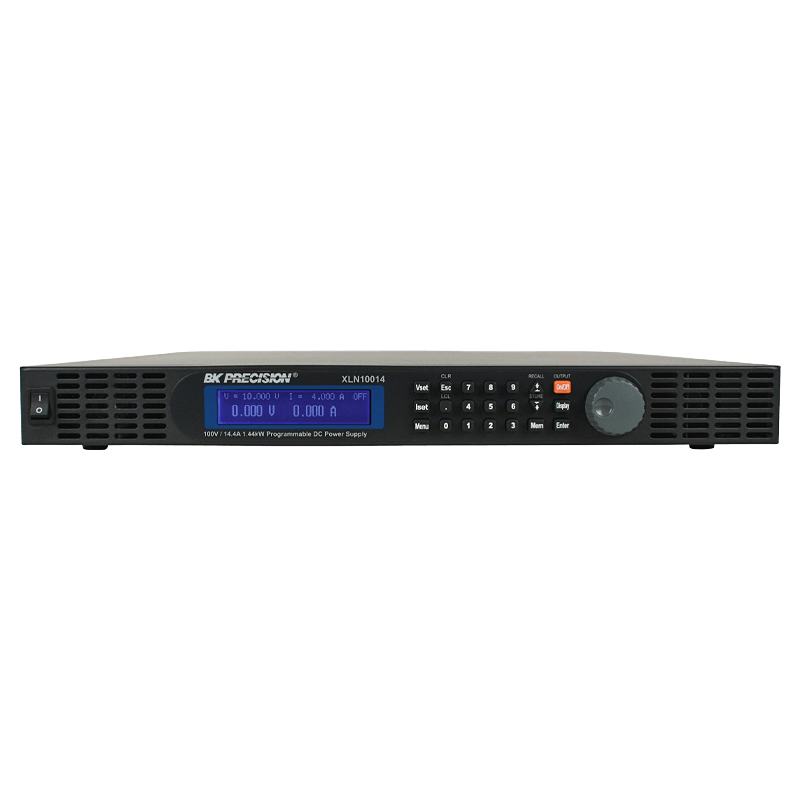

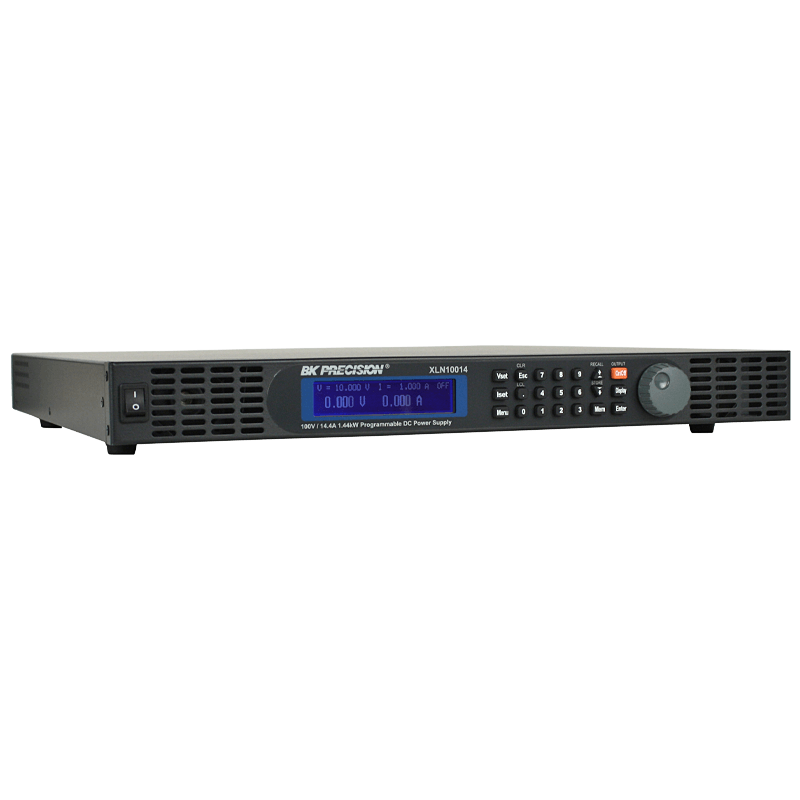

B&K Precision XLN10014 | Programmable DC power supply unit, high-current, 100 V, 14 A, 1.44 kW, USB, XLN series

Name: XLN10014 | Programmable DC power supply unit, high-current, 100 V, 14 A, 1.44 kW, USB, XLN series
Brand: B&K Precision
SKU: XLN10014
Price: 2510.0 EUR
Availability: InStock

Manufacturer number: XLN10014

Delivery time upon request

€2,510.00

plus VAT. €2,986.90 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price Share

B&K Precision XLN10014 | Programmable DC power supply unit, high-current, 100 V, 14 A, 1.44 kW, USB, XLN series

Product features:

Output voltage: 0 - 100 V
Output current: 0 - 14.4 A
Maximum output power: 1440 W
Overvoltage protection (OVP) adjustable: 5 - 105 V
Overvoltage accuracy: ±500 mV
Line regulation (voltage): ≤ 10 mV
Line regulation (current): ≤ 4 mA
Load regulation (voltage): ≤ 12 mV
Load regulation (current): ≤ 6 mA
Waves and noise (20 Hz - 20 MHz): ≤ 8 mVrms / ≤ 80 mVpp
Programming and reading accuracy (voltage): ±(0.05 % + 25 mV)
Programming and reading accuracy (current): ±(0.05 % + 6 mA)
Standard interfaces: USB, RS485, analog control
Power factor correction (PFC): ≥ 0.99 (at full load)
Efficiency: ≥ 80 % (at full load)
Dimensions (WxHxD): 420 x 43.6 x 432 mm
Weight: 9 kg

Technical Data

AC input:	100 V - 240 V, 47 Hz - 63 Hz
Additional functions:	AUX Ausgang (5V / 1A), Slew-Rate Funktion, Software zur Fernsteuerung
Article number:	XLN10014
Autorange:	No
Bidirectional:	No
DC output reversible:	DC Source
Dimensions (L x W x H) (mm):	432 x 420 x 43,6
Interfaces:	USB
Model:	XLN10014
Number of outputs:	1
Output power (W):	1,440
Power factor:	0,99
Protective devices:	OVP, OCP, OPP, OTP, Foldback
Warranty (years):	3
Weight (kg):	9
max. Power (A):	14
max. voltage (V):	100

Documents & Downloads

Datasheet

pdf | 0.25 MB

Description

XLN10014 | Programmable DC power supply unit, high-current, 100 V, 14 A, 1.44 kW, USB, XLN series

The XLN series from B&K Precision consists of programmable, single-channel DC power supplies that deliver a clean output power of up to 1560 watts. Thanks to their compact 1U rack design, they are suitable for both laboratory operation and system integration. While many comparable power supply units are primarily designed for automated test systems (ATE), the XLN series has been specially developed for flexible applications.

Main features of the XLN series

Compact, high-density 1U design

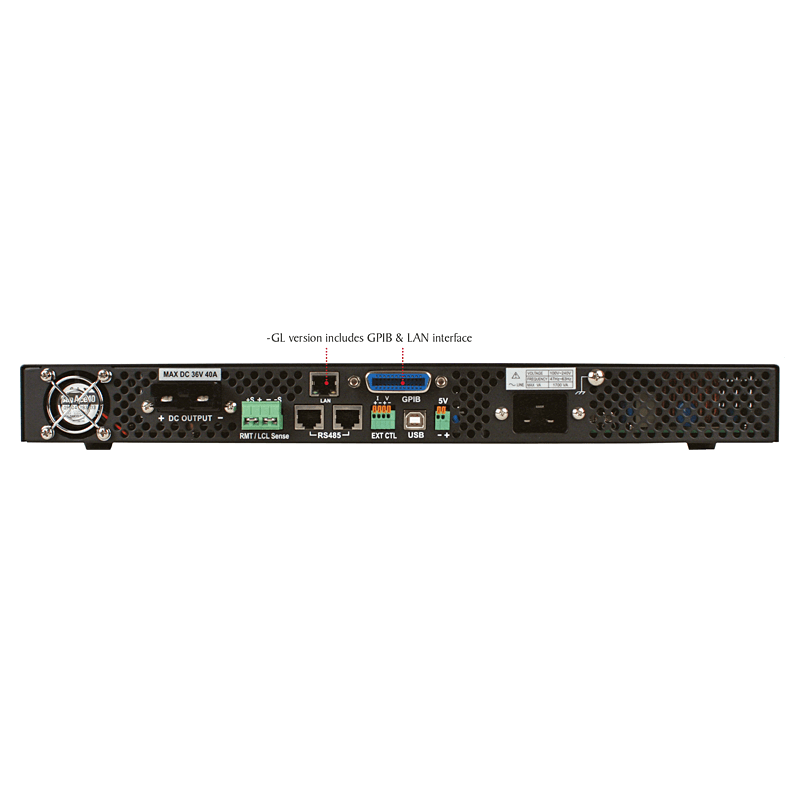

USB and RS485 interfaces as standard, optional GPIB and LAN
External analog programming
List mode for performing test sequences with up to 150 steps
Fast command processing with an average < 50 ms
Programmable voltage and current slew rates for "soft-start" solutions
Internal memory for up to 10 device settings
Parallel or serial connection of up to four devices (high current models for serial connection only)
Extensive protection features: OVP (overvoltage protection), OCP (overcurrent protection), OPP (overload protection), OTP (overtemperature protection), foldback mode and key lock

Applications

The XLN series is ideal for ATE system integration, research and development, quality assurance and burn-in testing of products. Thanks to its comprehensive protection mechanisms, precise control options and remote control capability, it is particularly suitable for demanding test environments.

The XLN10014 variant offers a maximum output voltage of 100 V and a maximum output current of 14.4 A with a total power of 1440 W. This model is ideal for applications that require high voltages while maintaining a moderate current.

Differences between the XLN10014 and other models in the series

Compared to the high current models (e.g. XLN3640 with 40 A), the XLN10014 offers a higher voltage.
Compared to the high voltage models (e.g. XLN15010 or XLN30052), the XLN10014 has a lower maximum voltage, but a higher current output.
Like all models in the XLN series, it offers versatile interface options for system integration and remote control.

Alternate products (13 products)

Series

B&K Precision
XLN10014-GL

Programmable DC power supply unit, high-current, 100 V, 14 A, 1.44 kW, USB, LAN, GPIB, XLN series

Delivery time upon request

€2,920.00

Series

B&K Precision
XLN15010

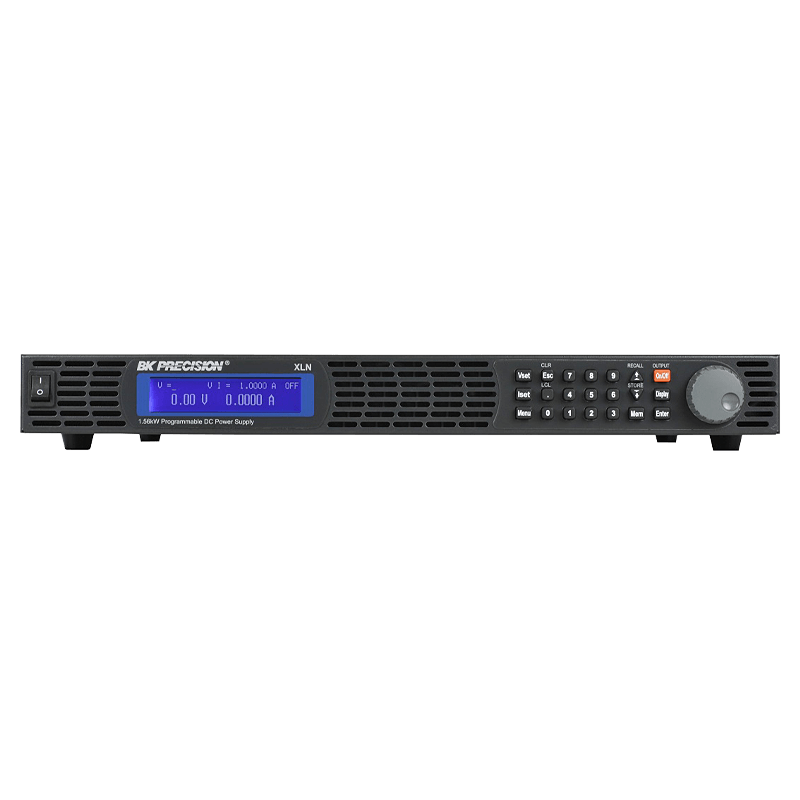

Programmable DC power supply unit, high-voltage, 150 V, 10 A, 1.56 kW, USB, XLN series

Delivery time upon request

€2,740.00

Series

B&K Precision
XLN15010-GL

Programmable DC power supply unit, high-voltage, 150 V, 10 A, 1.56 kW, USB, LAN, GPIB, XLN series

Delivery time upon request

€3,150.00

Series

B&K Precision

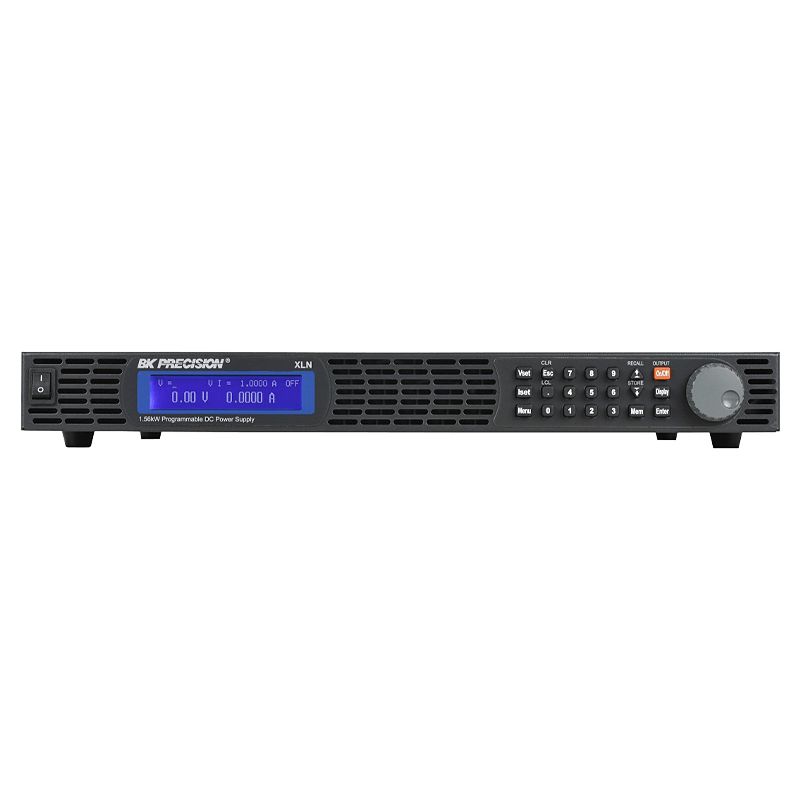

XLN30052

Programmable DC power supply unit, high-voltage, 300 V, 5.2 A, 1.56 kW, USB, XLN series

Delivery time upon request

€2,730.00

Series

B&K Precision
XLN30052-GL

Programmable DC power supply unit, high-voltage, 300 V, 5.2 A, 1.56 kW, USB, LAN, GPIB, XLN series

Delivery time upon request

€3,140.00

Series

B&K Precision
XLN3640

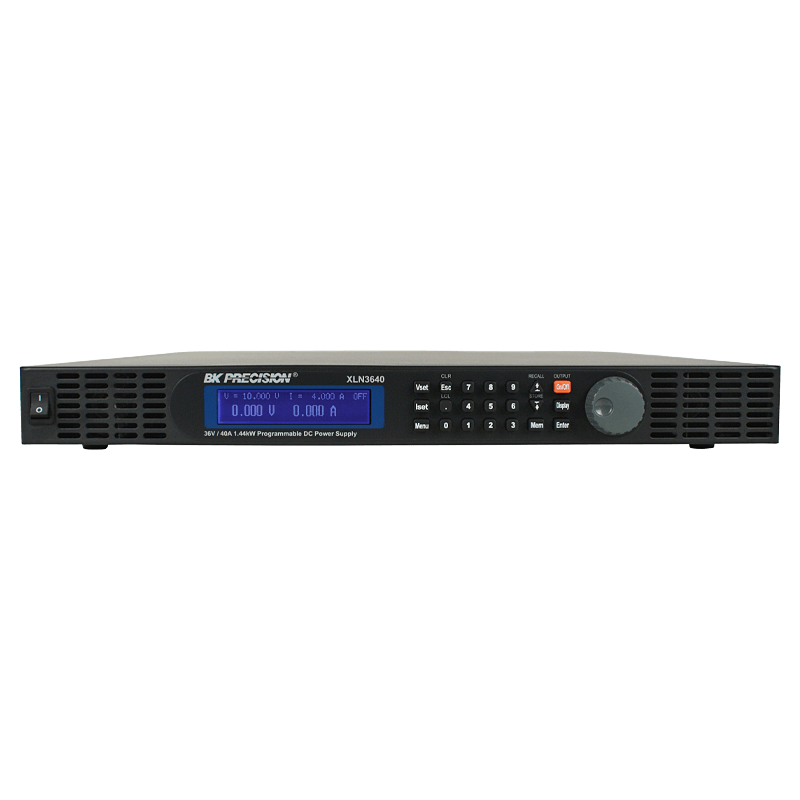

Programmable DC power supply unit, high-current, 36 V, 40 A, 1.44 kW, USB, XLN series

Delivery time upon request

€2,510.00

Series

B&K Precision
XLN3640-GL

Programmable DC power supply unit, high-current, 36 V, 40 A, 1.44 kW, USB, LAN, GPIB, XLN series

Delivery time upon request

€2,920.00

Series

B&K Precision
XLN60026

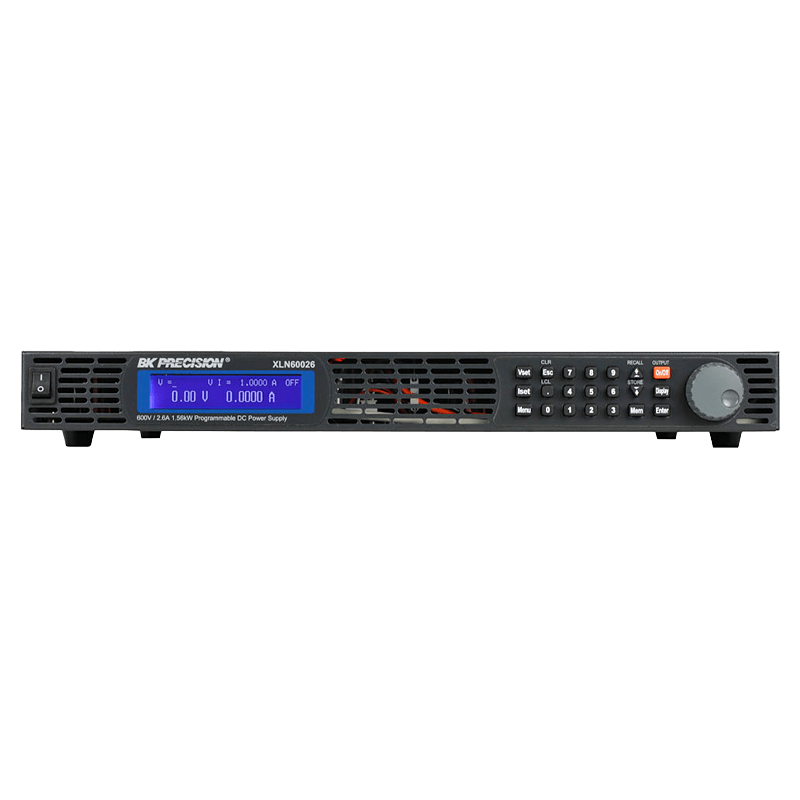

Programmable DC power supply unit, high-voltage, 600 V, 2.6 A, 1.56 kW, USB, XLN series

Delivery time upon request

€2,730.00

Series

B&K Precision
XLN60026-GL

Programmable DC power supply unit, high-voltage, 600 V, 2.6 A, 1.56 kW, USB, LAN, GPIB, XLN series

Delivery time upon request

€3,140.00

Series

B&K Precision

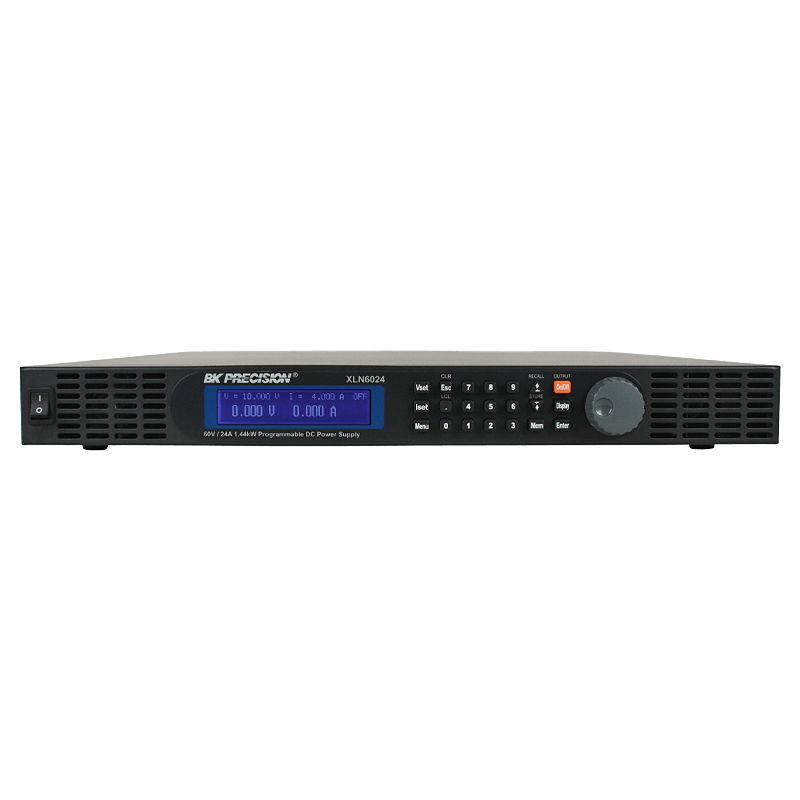

XLN6024

Programmable DC power supply unit, high-current, 60 V, 24 A, 1.44 kW, USB, XLN series

Delivery time upon request

€2,550.00

Series

B&K Precision
XLN6024-GL

Programmable DC power supply unit, high-current, 60 V, 24 A, 1.44 kW, USB, LAN, GPIB, XLN series

Delivery time upon request

€2,960.00

Series

B&K Precision
XLN8018

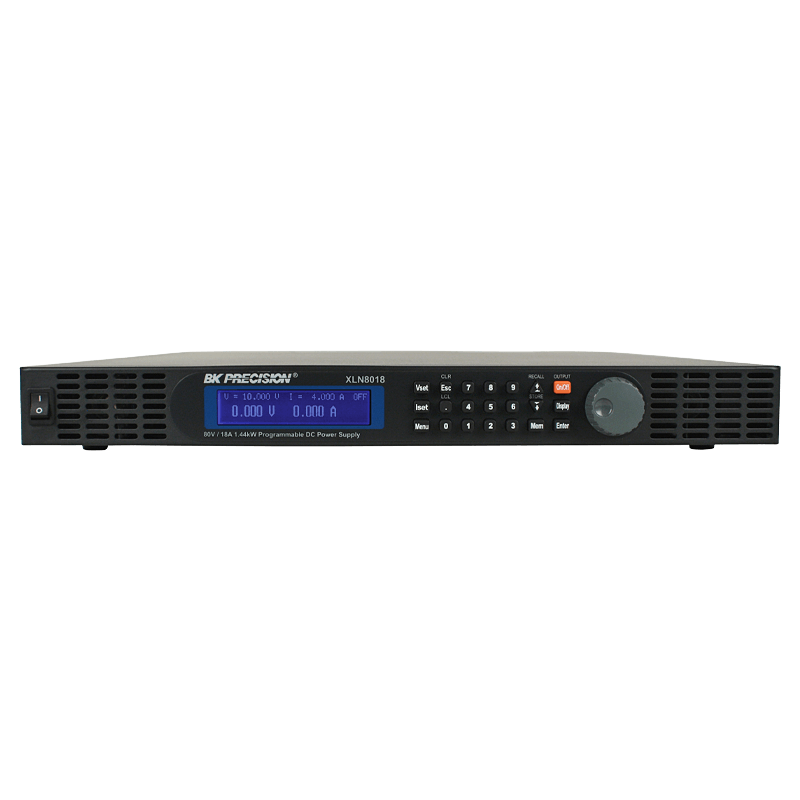

Programmable DC power supply unit, high-current, 80 V, 18 A, 1.44 kW, USB, XLN series
