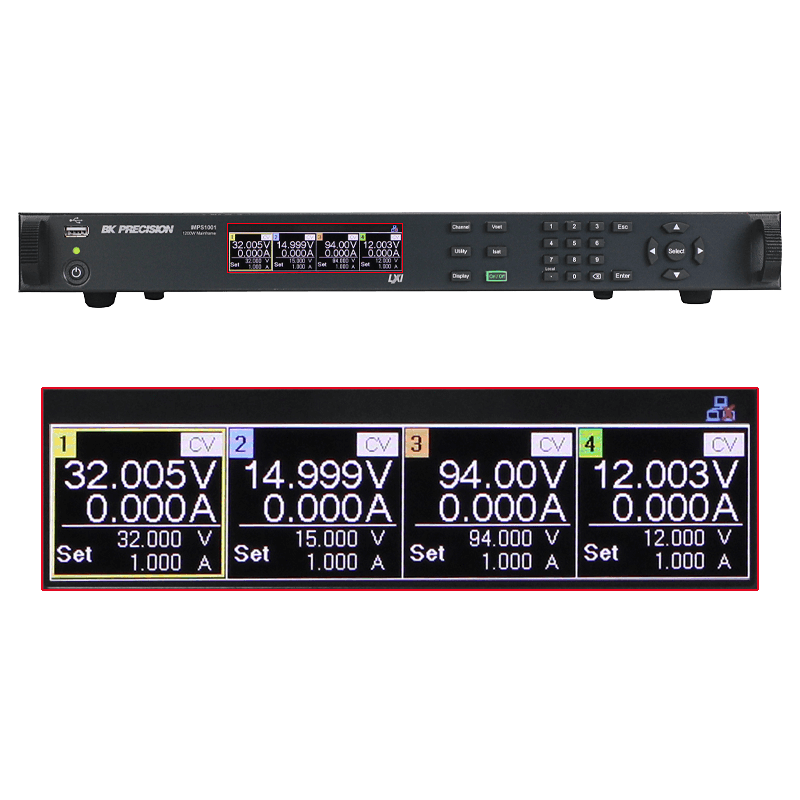

B&K Precision MPS1001 | Modular DC Power Supply System, 4 Slots, up to 1,200 W, 1 U, MPS Series

Name: MPS1001 | Modular DC Power Supply System, 4 Slots, up to 1,200 W, 1 U, MPS Series
Brand: B&K Precision
SKU: MPS1001
Price: 3500.0 EUR
Availability: InStock

Manufacturer number: MPS1001

Delivery time upon request

€3,500.00

plus VAT. €4,165.00 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

B&K Precision MPS1001 | Modular DC power supply system, 4 slots, up to 1,200 W, 1 U, MPS series.

Technical Data

AC input:	180 V - 240 V ±10 %, 50 Hz / 60 Hz
Additional functions:	Module synchronization, output coupling,
Article number:	MPS1001
Dimensions (L x W x H) (mm):	550 x 425 x 44
Interfaces:	LAN, USB, GPIB
Model:	MPS1001
Number of outputs:	4
Output power (W):	1,200
Power factor:	0,97
Protective devices:	OVP, OCP, OTP
Warranty (years):	3
Weight (kg):	10

Description

MPS1001 | Modular DC Power Supply System, 4 Slots, up to 1,200 W, 1 U, MPS Series

The MPS series from B&K Precision offers modular DC power supply solutions that support up to four output channels and a maximum total output of 1,200 W in a compact 1U housing. The series is characterized by a high degree of flexibility, as different modules can be combined. The modular power supply units are ideal for automatic test systems (ATE) in research, development and production. They are particularly suitable for applications with high test requirements, including battery testing and system validation.

General features of the series:

Compact 1U housing with up to four output modules
Modular design for maximum flexibility
Multi-range operation for different voltage/current combinations
Series and parallel operation to increase maximum voltage/current
Advanced list mode programming for complex test sequences
Synchronization between modules and main units
Clean output power with protection functions (overvoltage, overcurrent, overtemperature)
USB, LAN and GPIB interfaces for remote control
Rack mounting kit included for easy integration

The Mainframe MPS1001 provides space for up to four modules and allows a flexible combination of voltage and current modules up to a maximum output power of 1.200 W. The MPS1000 mainframe also has 4 slots, but is only designed for a maximum power of up to 600 W.

Available modules:

The MPS series supports a total of eight different modules that differ in terms of voltage, current and power range:

100 W modules (multi-range)

MPS1101: 15 V / 20 A
MPS1102: 32 V / 9.5 A
MPS1103: 60 V / 5 A
MPS1104: 100 V / 3 A

300 W modules (fixed range)

MPS1301: 15 V / 20 A
MPS1302: 32 V / 9.5 A
MPS1303: 60 V / 5 A
MPS1304: 100 V / 3 A

Product features MPS1001:

Maximum power: 1200 W
Number of slots: 4
Case type: 1U
Input voltage: 180-240 V AC, 50/60 Hz
Compatible modules: 100 W and 300 W modules
Synchronization between main devices possible
Supported interfaces: USB (USBTMC), LAN (LXI), GPIB
Protection functions: OVP, OCP, OTP
Programmable voltage and current rise times
Compatibility with LabVIEW, IVI-C and IVI.NET drivers
