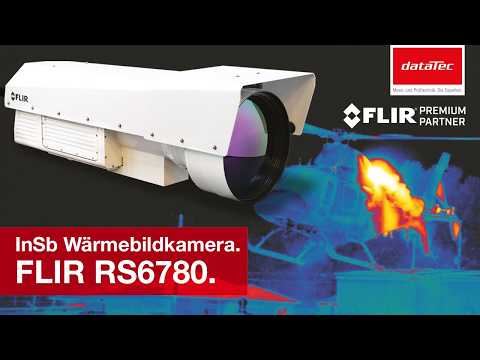

Teledyne FLIR RS6780 | InSb thermal imaging camera (3.0 - 5.0), 640x512px, 125Hz, for outdoor use

Manufacturer number: 29445-280

RS6780
RS6780
RS6780
RS6780
RS6780
RS6780
RS6780
RS6780
RS6780
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

Teledyne FLIR RS6780 | InSb thermal imaging camera (3.0 - 5.0), 640x512px, 125Hz, for outdoor use.

  • Detector: FLIR Indium Antimonide (InSb)
  • Spectral Range: 3.0 - 5.0 μm
  • Resolution: 640 × 512
  • Detector Distance: 15 μm
  • Thermal Sensitivity/NETD: 27 mK typical
  • Operating capability: ≥99.95% typical
  • Sensor cooling: closed-loop rotary mechanism
  • Camera aperture F-number: f/4.0
  • Focus: Motorized field of view/focus
  • Readout type: Snapshot (single frame)
  • Integration time: 480 ns to full frame
  • Pixel clock: 50 MHz
  • Frame frequency (full frame): Programmable from 0.0015 Hz to 125 Hz
  • Dynamic range: 14 bit
  • Dimensions (L × W × H): 544 mm × 177.8 mm × 213.9 mm (without 3x); 726.44 mm × 243.38 mm × 240.74 mm (with 3x)

Technical Data

Documents & Downloads

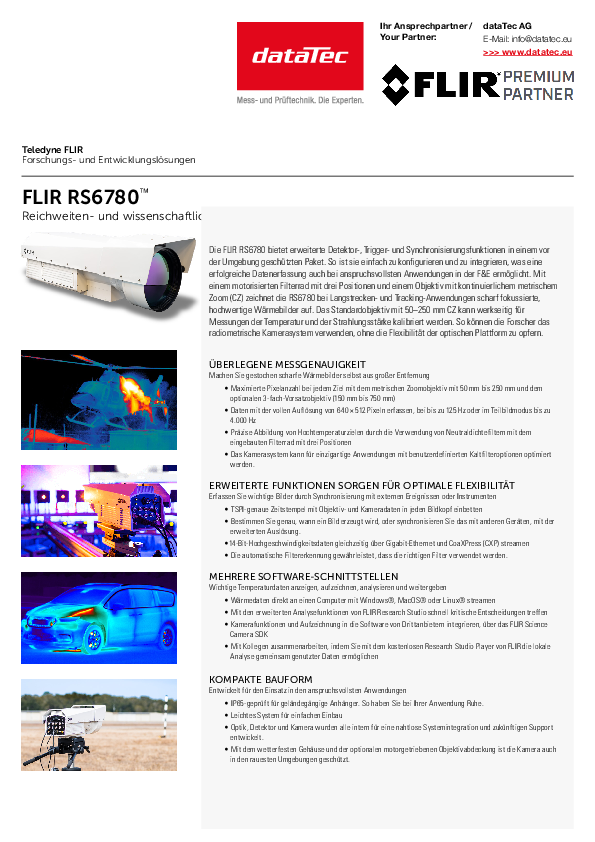

Overview
29445-280
pdf | 0.68 MB

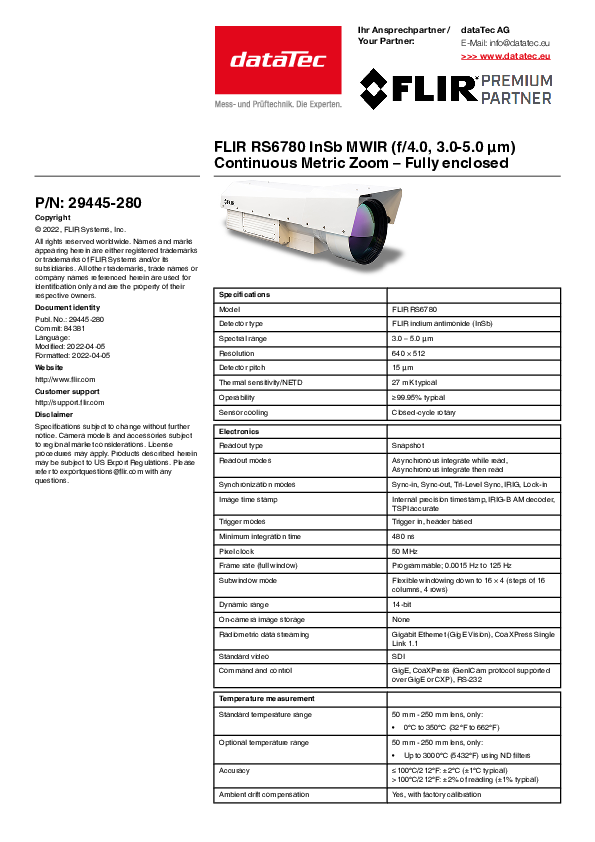

Datasheet
29445-280
pdf | 0.26 MB

Description

RS6780 | InSb thermal imaging camera (3.0 - 5.0), 640x512px, 125Hz, for outdoor use

The Teledyne FLIR RS6780 InSb thermal imaging camera (3.0 - 5.0 µm, 640x512 px, 125 Hz) is specifically designed for demanding outdoor applications. It offers a robust design and high image quality to capture precise thermal images under extreme conditions.

Superior image quality:

  • High-resolution capture: With a resolution of 640 × 512 pixels, the camera delivers razor-sharp images and detailed thermal images.
  • High frame rate: Capture up to 125 frames per second for precise analysis of rapid thermal changes.

Advanced features:

  • Weatherproof design: IP65-rated for use in harsh environments, the camera reliably protects against dust and water.
  • Flexible optics: Equipped with a motorized filter wheel and continuous zoom lens (50-250 mm) for versatile applications.

Optimized data acquisition and analysis:

  • High data rate: Simultaneous streaming of 14-bit data via Gigabit Ethernet and CoaXPress (CXP) ensures fast and precise data transmission.
  • Software integration: Compatible with FLIR Research Studio and other analytics tools for efficient data processing and analysis.

The Teledyne FLIR RS6780 is the ideal solution for demanding outdoor applications where reliability and high image quality are critical.

About the Manufacturer

Teledyne FLIR
Teledyne FLIR
Teledyne FLIR is the world's largest manufacturer of thermal imaging cameras and thermographic instruments. Teledyne FLIR covers an incredibly wide range and has the optimal thermal imaging camera for every application, whether construction, research and development or industrial manufacturing. Since 2010 dataTec is Platinum Distributor of FLIR and, of course, now of Teledyne FLIR.
