Tektronix RSA306B | USB Real Time Signal Analyzer, 9 kHz ... 6.2 GHz

Name: RSA306B | USB Real Time Signal Analyzer, 9 kHz ... 6.2 GHz
Brand: Tektronix
SKU: RSA306B
Price: 6210.0 EUR
Availability: InStock

Manufacturer number: RSA306B

1 in stock. Ready to ship in 1 business day

€6,210.00

plus VAT. €7,389.90 VAT plus shipping costs

You would like to request an offer? Please add items to the shopping cart and request an offer there.

Request educational price

Tektronix RSA306B | Portable USB real-time spectrum analyzer, frequency range 9 kHz… 6.2 GHz, measuring range +20 dBm to -160 dB, detection bandwidth 40 MHz.

USB real-time spectrum analyzer for connection to your laptop / PC
Status display LED, two-color red / green
Frequency range: 9 kHz… 6.2 GHz
Measuring range: +20 dBm… -160 dBm
RF input impedance: 50 Ω
Acquisition bandwidth: 40 MHz
minimum signal duration: 100 µs with 100% detection probability
Environmental, shock and vibration specifications according to MIL-STD-28800 class 2 for use in harsh conditions
RF input type N, socket
External input for frequency reference SMA, socket
Trigger / sync input SMA, socket
Dimensions (H x W x D): 31.9 mm x 190.5 mm x 139.7 mm
Weight: 0.75 kg
Three year guarantee

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Amplitude range:	+20 dBm bis -160 dBm
Analysis bandwidth (MHz):	40
Article number:	RSA306B
DANL Displayed Average Noise:	ca. -155 dBm/Hz
Demodulations:	AM/FM/φM
Detectors:	Peak, RMS, Quasi Peak
Dimensions (L x W x H) (mm):	139,7 x 190,5 x 31,9
Dynamics:	175 dB
Filter bandwidths:	200 Hz , 9 kHz, 120 kHz, 1 MHz (EMI optional)
Frequency stability:	±3 ppm
Interfaces:	USB
Measurement functions:	optional: Allgemeine Modulationsanalyse (27 Modulationstypen, darunter 16/32/64/256 QAM, QPSK, O-QPSK, GMSK, FSK, APSK) P25-Analyse von Signalen Phase I und Phase 2 WLAN-Analyse von 802.11a/b/g/j/p, 802.11n, 802.11ac Messung von Kennung und HF bei LTE™-FD
Model:	RSA306B
Resolution bandwidth:	10 Hz bis 8 MHz
SSB phase noise:	1 GHz (10 kHz carrier offset) -84 dBc/Hz
Screen size:	kein
Screen type:	kein
Special features:	USB Gerät, Realtime 40 MHz, EMV Analyse Option, Signalanalyseoption
Sweep:	linear, logarithmisch
Tracking-Generator:	kein
Warranty (years):	3
Weight (kg):	0.75
max. Frequency range (GHz):	6.2
min. Frequency range (kHz):	9

Detaildescription

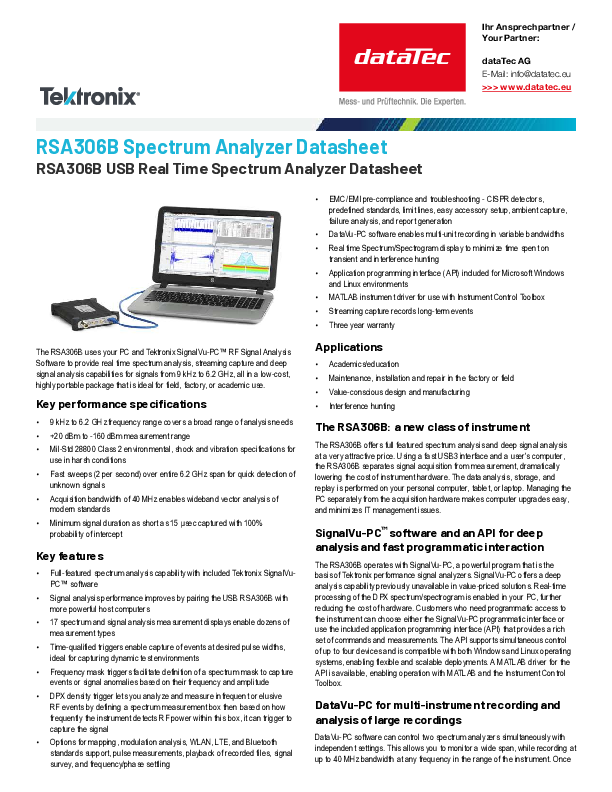

RSA306B | USB Real Time Signal Analyzer, 9 kHz ... 6.2 GHz

The Tektronix RSA306B offers comprehensive spectrum analysis and in-depth signal analysis at an unprecedented price. Using the latest commercial interfaces and available computing power, the RSA 306B separates signal acquisition and measurement, which drastically reduces device hardware costs. The analysis, storage and playback of data takes place on your PC, tablet or laptop. The separate management of PC and acquisition hardware makes computer upgrades easy and minimizes IT management problems.

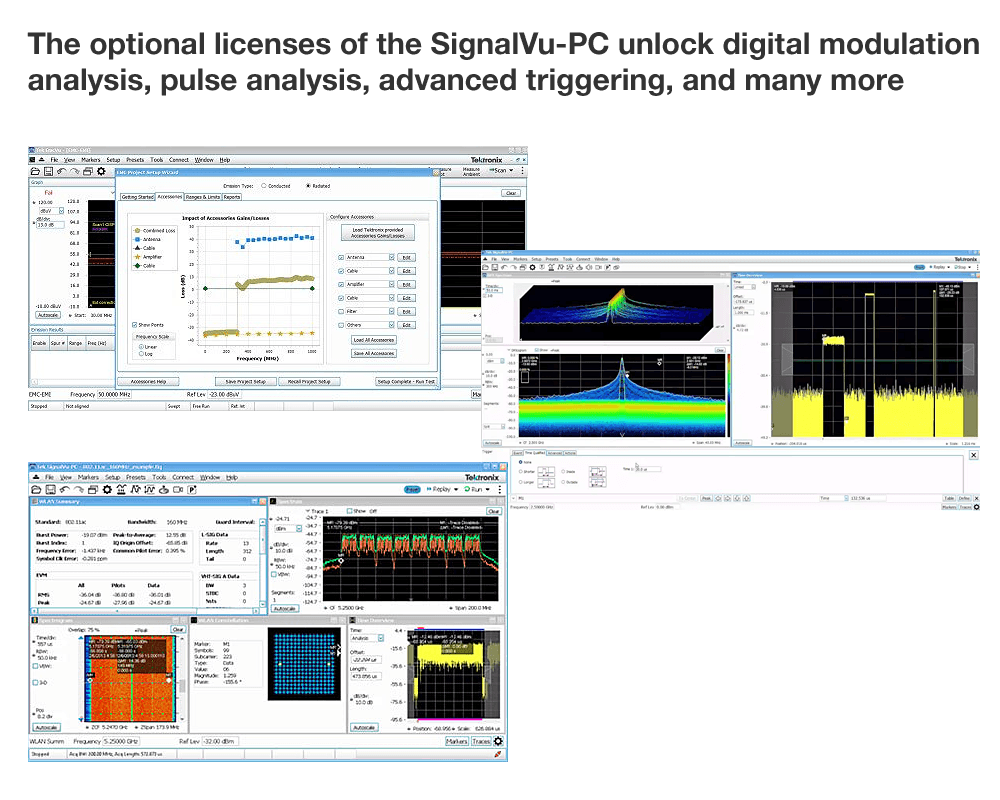

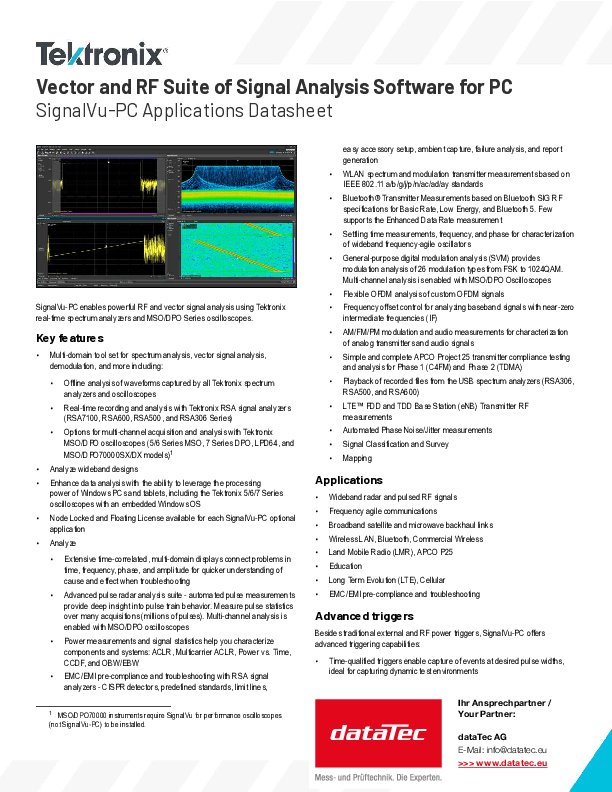

Using the PC and the RF signal analysis software SignalVu-PC ™ from Tektronix, the RSA306B can be used to perform functions such as real-time spectrum analysis, streaming acquisition and in-depth signal analysis for signals from 9 kHz to 6.2 GHz - all in one a cost-effective, easily transportable device that is ideally suited for use on site for maintenance, installation and repair in the factory or for teaching and learning purposes in the academic field / training.

Product features:

Comprehensive spectrum analysis function through the included software SignalVu-PC from Tektronix
17 displays for spectrum and signal analysis measurements allow a variety of measurement types
Mapping, modulation analysis, support for WiFi, LTE and Bluetooth, pulse measurement, playback of recorded files, signal analysis and frequency and phase transient behavior
Spectrum / spectrogram display in real time to minimize the time spent on transient search and fault location
Included programming interface (API) for Microsoft Windows environments
MATLAB device drivers for use with the Instrument Control Toolbox
Streaming capture for recording long-term events

Lieferumfang

RSA306B
USB 3.0 cable
SignalVu-PC software on USB stick
documentation
