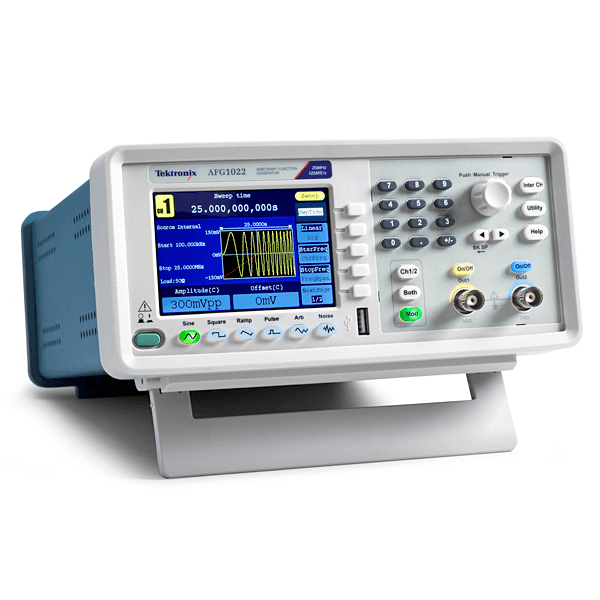

Tektronix AFG1022 | Arbitrary function generator, 2-channel, 125 MSa / s, 25 MHz sine waveform, 14-bits, 2U

Name: AFG1022 | Arbitrary function generator, 2-channel, 125 MSa / s, 25 MHz sine waveform, 14-bits, 2U
Brand: Tektronix
SKU: AFG1022
Price: 1010.0 EUR
Availability: InStock

Manufacturer number: AFG1022

1 in stock. Ready to ship in 1 business day

€1,010.00

plus VAT. €1,201.90 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Tektronix AFG1022 | Arbitrary function generator, 2 channel, 125 MSa / s, 25 MHz Sine Waveform, 14-Bit, 2U

Technical Data

Arbitrary Number of segments:	8,000
Arbitrary amplitude resolution:	14-bit
Arbitrary function:	Yes
Arbitrary sampling rate:	125 MSa/s
Article number:	AFG1022
Burst:	Yes
Dimensions (L x W x H) (mm):	306 x 230 x 110
Display:	3.95 inch, color display, 480 x 320
Frequency range pulse:	1 mHz - 12.5 MHz
Frequency range rectangle:	1 µHz - 12.5 MHz
Frequency range triangle/ramp:	1 µHz - 1 MHz
Interfaces:	USB
Model:	AFG1022
Modulation types:	AM, FM, PM, FSK, PWM
Number of channels:	2
Special features:	integrated 200 MHz frequency counter
Sweep:	Yes
Warranty (years):	1
Waveforms:	Sine, square, ramp, pulse, noise
Weight (kg):	3.4
max. Frequency sine (MikroHz):	25
min. Frequency sine (MikroHz):	1

Documents & Downloads

Datasheet

pdf | 0.46 MB

Description

AFG1022 | Arbitrary function generator, 2-channel, 125 MSa / s, 25 MHz sine waveform, 14-bits, 2U

The Tektronix AFG1000 series comprises two arbitrary function generators, each with two channels, a bandwidth of up to 60 MHz and an output amplitude of up to 10 Vp-p. The four operating modes, 50 integrated, frequently used waveforms and the integrated 200 MHz frequency counter cover most of the requirements for waveform generation in your experiment and test orders. The 3.95-inch TFT display, the key combinations, the USB interface and the PC software offer intuitive options for configuring the instrument.
