SPS S1802M | Multifunctional safety tester according to IEC, EN, UL and VDE standards

Manufacturer number: S1802M

S1802M
S1802M
S1802M
New
Delivery time upon request

€3,272.00

plus VAT. €3,893.68 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

SPS S1802M | Multifunctional safety tester for high-voltage testing (AC/DC), protective conductor testing, and insulation measurement.

Technical Data

Documents & Downloads

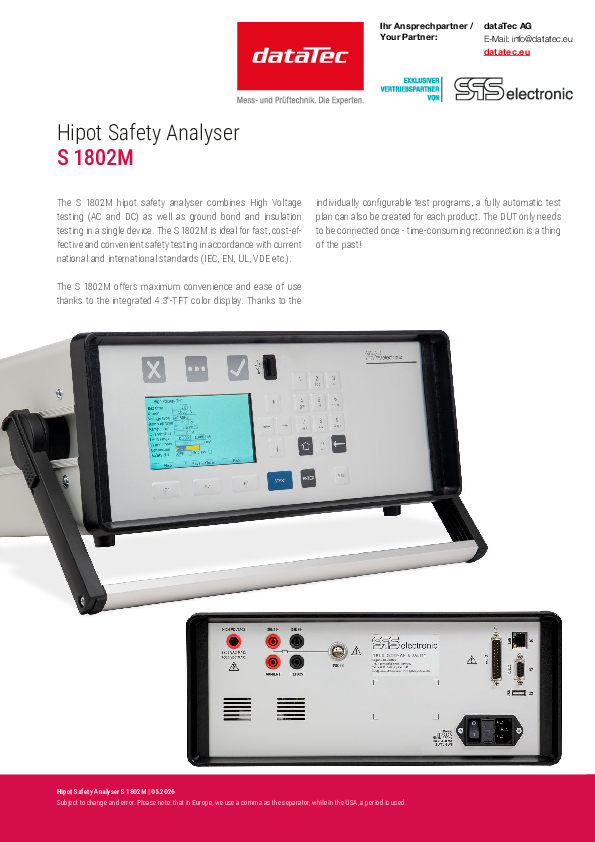

Datasheet
1802M
pdf | 0.28 MB

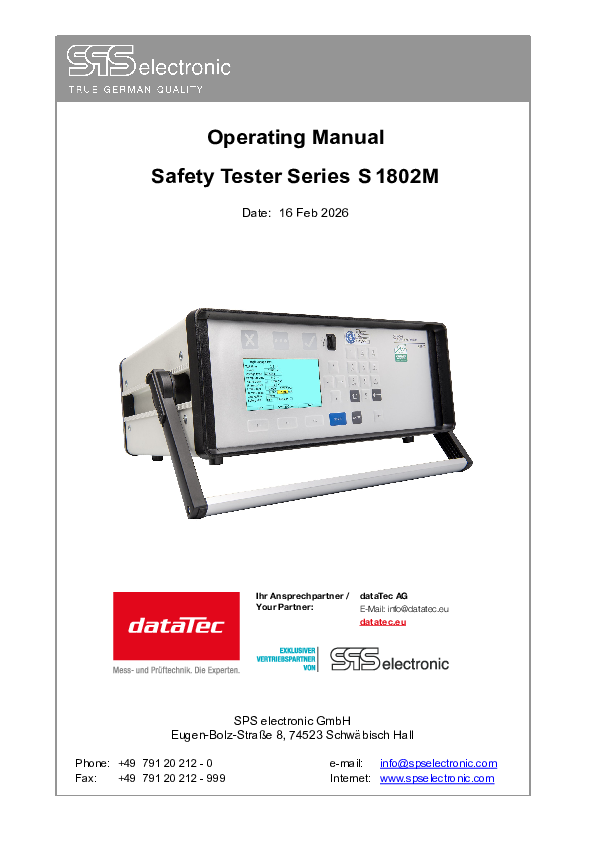

Userguide
1802M
pdf | 1.18 MB

Description

S1802M | Multifunctional safety tester according to IEC, EN, UL and VDE standards

The S 1802M from SPS electronic is a multifunctional safety tester designed as a benchtop unit for fast, cost-effective, and convenient safety testing. It combines high-voltage testing with AC and DC, protective conductor testing, and insulation measurements in a single device.

The product is suitable for safety testing in accordance with current national and international standards such as IEC, EN, UL, and VDE. Individually configurable test programs allow for the creation of automatic test sequences for different products. The test object only needs to be connected once, which significantly simplifies the testing process. Operation is convenient via an integrated 4.3" TFT color display.

Product Features:

  • Device Type: Benchtop Unit
  • AC High-Voltage Test: 100 V – 5500 V
  • AC Current Range: 0 mA – 3 mA
  • AC short-circuit current: < 3 mA
  • DC high-voltage test: 100 V – 6000 V
  • DC current range: 0 mA – 10 mA
  • DC short-circuit current: < 12 mA
  • DC residual ripple: < 3 %
  • DC insulation measurement: 100 V – 6000 V
  • Insulation measurement range: 250 kΩ – 1 GΩ
  • Protective conductor test range: 0 mΩ – 400 mΩ
  • AC test current: 10 A – 30 A
  • Open-circuit voltage: 6 V / 12 V
  • Memory: 180 MB
  • Interfaces: 2 x USB, RS-232, Ethernet / LAN
  • Digital interface 24 VDC: 8 inputs + 8 outputs
  • Display: 4.3" TFT color display with touch input
  • Power supply: 90 V – 250 V, 50 Hz / 60 Hz
  • Dimensions: 155 x 362 x 328 mm
  • Weight: approx. 11 kg
