Schwarzbeck HVSE8600 | Shielded housing for 2 HV system replicas, attenuation > 100 dB typ.

Manufacturer number: HVSE8600

HVSE8600
HVSE8600
HVSE8600
HVSE8600
HVSE8600
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product inquiries Request education-price
Highlights Technical Data Description Related Articles

Schwarzbeck HVSE8600 | Shield housing for 2 HV network simulations, attenuation> 100 dB (typ.).

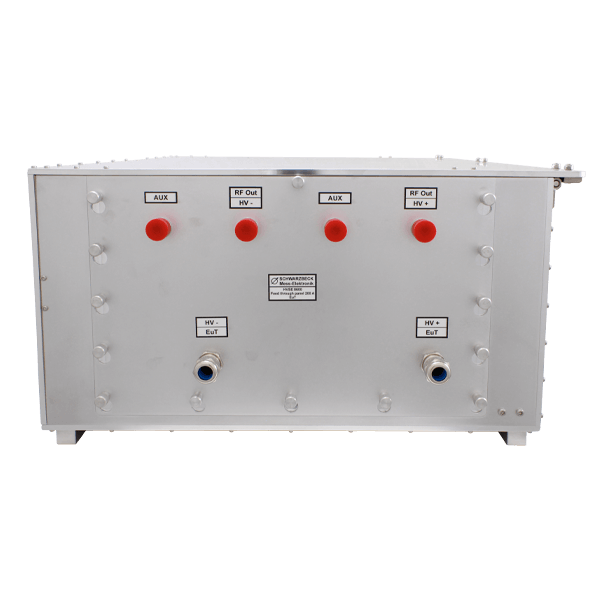

  • Front connections: 4 x N female RF HV +, RF HV-, 2 x AUX
  • Rear connections: HV +, HV-
  • Attenuation: typically> 100 dB
  • Dimensions (inside): 480 x 635 x 250 mm
  • Dimensions (outside): 505 x 650 x 290 mm
  • Material: aluminum
  • Weight: 24 kg

Technical Data

Description

HVSE8600 | Shielded housing for 2 HV system replicas, attenuation > 100 dB typ.

The HVSE 8600 shield housing is used to increase the shielding attenuation of vehicle electrical system replicas when measuring electrical drives of electric or hybrid vehicles. The aluminum housing is equipped with three quick-release fasteners and gas pressure springs, which enable convenient opening or closing within a few seconds. In addition, removable connection plates are attached to the front and rear, which can also be installed and removed in a very short time thanks to a sophisticated quick-change system. This considerably simplifies and accelerates the assembly of the shielded HV cables.
