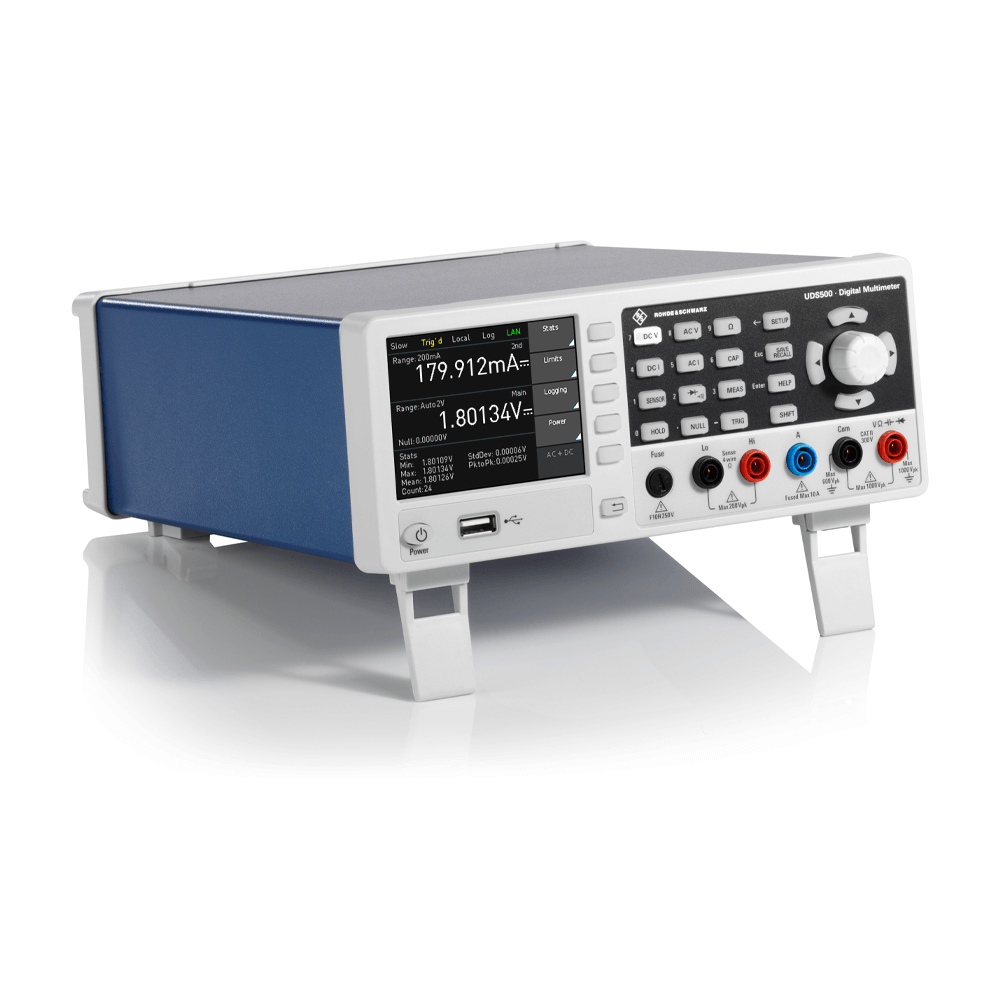

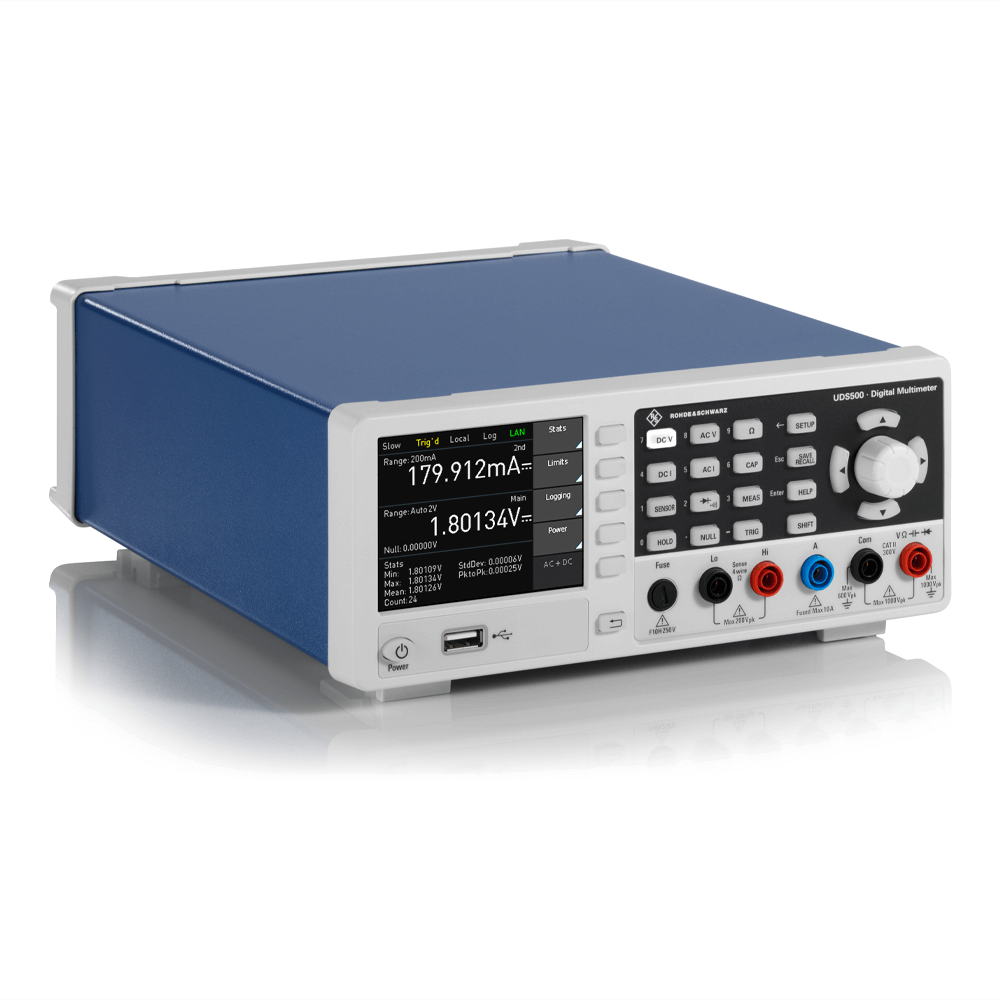

Rohde&Schwarz UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02)

Name: UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02)
Brand: Rohde&Schwarz
SKU: 3658.6470.02
Price: 950.0 EUR
Availability: InStock

Manufacturer number: 3658.6470.02

Delivery time upon request

€950.00

plus VAT. €1,130.50 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries % Additional offers for this product

Rohde & Schwarz UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02).

Product features:

Number of digits: 5½-digit
Basic accuracy (DC): 0.015 %
Resolution:
- 1 μV (voltage)
- 0.1 μA (current)
- 1 mΩ (resistance)
- 1 pF (capacitance)
- 0.1 °C (temperature)
Maximum voltage: 1000 V DC, 750 V AC
Maximum current: 10 A

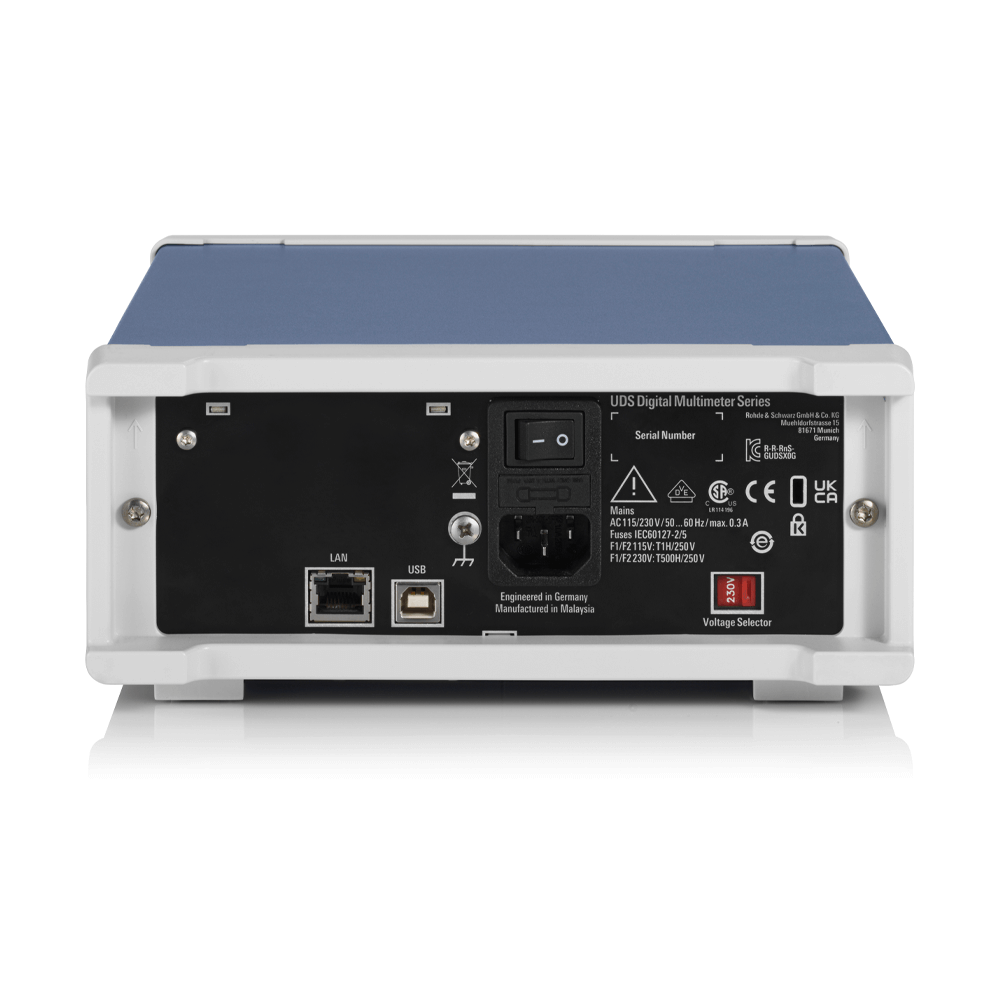

Interfaces: USB, LAN
Bandwidth: DC, 5 Hz to 100 kHz
Simultaneous display: up to 3 measured values (e.g. DC, AC, statistics)
Remote control: SCPI-compatible commands, web server via LAN
Data logging: storage on USB stick or transfer to PC (max. 10 measurements/s)
Measurement functions:
- DCV, DCI, True RMS, ACV, ACI
- Frequency measurement
- Resistance (2- and 4-wire)
- Capacitance
- Continuity test, Diode test
- Temperature, power measurement
Mathematical functions: Limit check (min./max.), average, offset, DC power, dB, dBm
Limit check with color indication: red for outside limits, green for inside limits; acoustic signal optional

Technical Data

2-/4-wire:	2-/4
Accuracy voltage measurement DC:	0,015 %
Article number:	3658.6470.02
Current measuring range DC:	20 mA - 10 A
Dimensions (L x W x H) (mm):	291 x 222 x 97
Diode test / continuity test:	Yes / Yes
Display:	3.5" / QVGA (color)
Frequency measuring range:	5 Hz - 100 kHz
Interfaces:	USB, LAN
Measurements per second:	200
Model:	UDS500
Number of positions:	5.5
Special features:	Simultaneous display of three measured values, data logger
Temperature measurement:	Yes
Voltage measuring range AC:	750 V
Weight (kg):	2.7
max. Measuring range DC (V):	1,000
min. Measuring range DC (mV):	200

Documents & Downloads

Datasheet

pdf | 2.89 MB

Description

UDS500 | Multimeter, 5.5 digits, 1000 V DC, 750 V AC, 10 A, 100 kHz, USB, LAN (3658.6470.02)

The UDS series from Rohde & Schwarz comprises compact digital multimeters that have been specially designed for use in general laboratories, production and training facilities. This series offers a balanced combination of high accuracy, functional versatility and user-friendly design, making it ideal for both general use and demanding test tasks in the production environment. The UDS series is the perfect successor to the HMC8012 from Rohde & Schwarz.

General features of the series:

Measurement range: DC to 100 kHz
Digit resolution: up to 6½ digits
Baseline accuracy (DC): 0.0075 %
Highest resolution: 100 nV, 10 nA, 0.1 mΩ, 0.1 pF, 1 Hz, 0.1 °C
Sampling rate: up to 200 readings per second
Measuring range: up to 2.000,000 counts
Simultaneous display of three measured variables (e.g. DC, AC and statistical values)

The devices have a QVGA color display with clear presentation and enable limit value checks directly on the screen, ideal for quick minimum/maximum analyses. Mathematical functions and built-in statistical evaluations are also available. The two- and four-wire measurement offers additional flexibility in use.

Thanks to SCPI-based remote control, Ethernet interface (LAN) with integrated web server and available driver packages, the multimeters can be easily integrated into existing measurement systems.

Alternate products

Series

Rohde&Schwarz

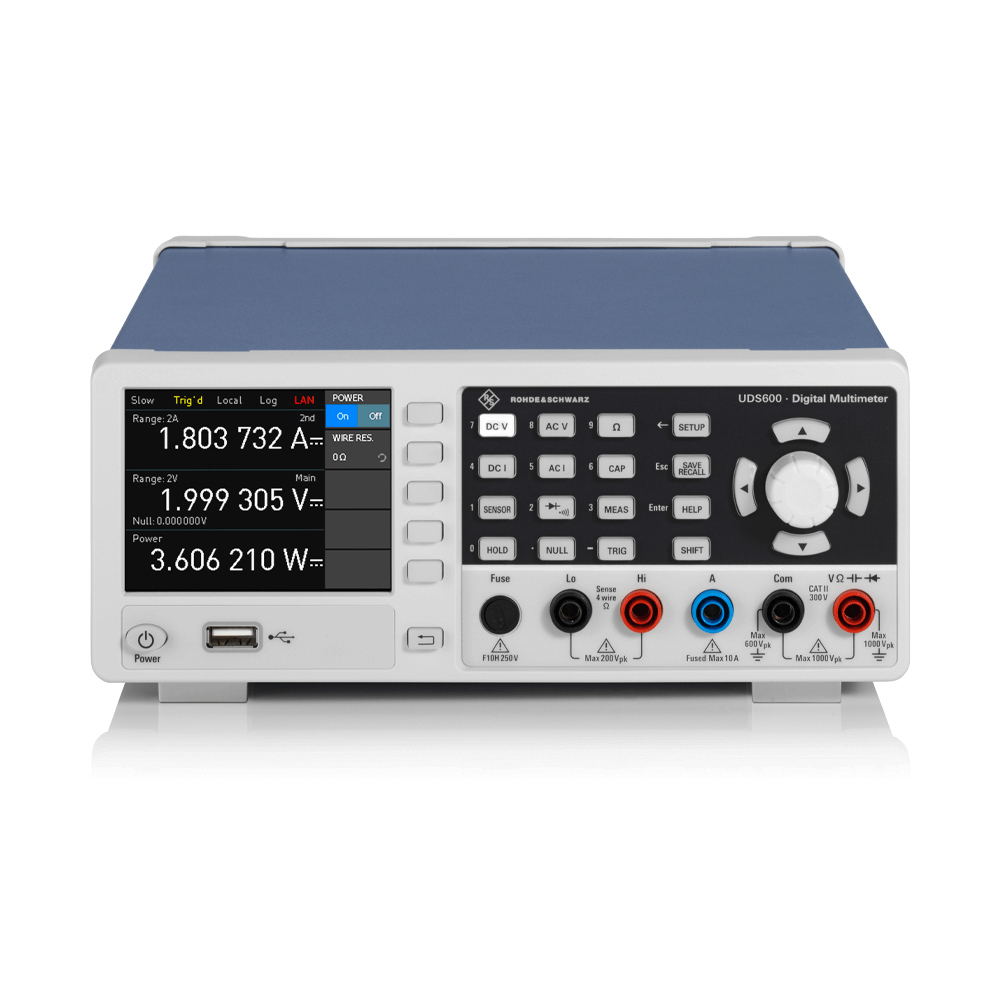

UDS600
