Langer RF-U 5-2 | H field probe, 30 MHz to 3 GHz.

Product features:

Frequency range: 30 MHz - 3 GHz
Resolution: ≈ 5 mm
Probe head dimensions: ≈ 6 x 6 mm
Connection - output: SMB, male, jack
Weight: 15 g

Technical Data

Weight (kg):	0.02

Description

RF-U 5-2 | H-field probe, 30 MHz to 3 GHz

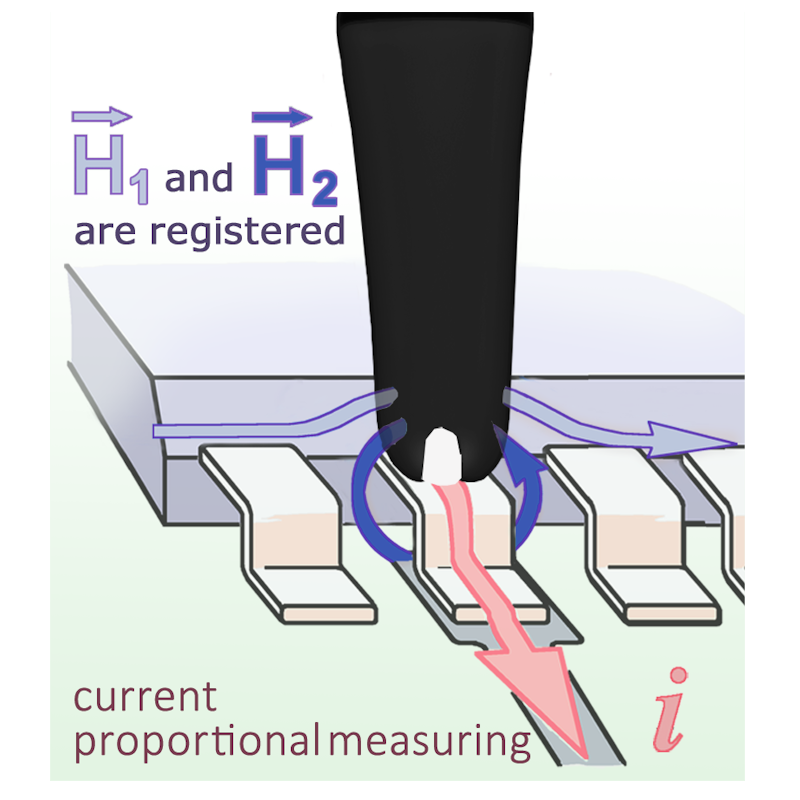

The RF-U 5-2 H-field probe is used in particular to detect magnetic fields on wide conductor runs, cables, connectors, electronic components and their connections. The probe works in a similar way to a current coupling clamp.

The RF-U 5-2 is a passive near-field probe. The probe head is placed on components for measurement. Field lines from other sources that enter the probe straight and laterally are also detected by the probe. Good coupling is achieved by positioning the H-field probe precisely on the object to be measured. The near-field probe is small and easy to handle. It has a sheath current attenuation and is electrically shielded. The near-field probe is connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The H-field probe does not have an internal 50 Ω terminating resistor.
