LANGER P1 SET | Mini burst field generators

Name: P1 SET | Mini burst field generators
Brand: LANGER
SKU: P1 SET
Price: 2074.6 EUR
Availability: InStock

Manufacturer number: P1 SET

Delivery time upon request

€2,074.60

plus VAT. €2,468.77 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price Share

Langer P1 SET | mini burst field generators.

Product features:

Generated electric field strength: approx. 100 kV/m
Generated magnetic flux density: approx. 1 mT
Pulse parameter frequency: single / 5 kHz
Power supply: 1.5 V / AAA

Documents & Downloads

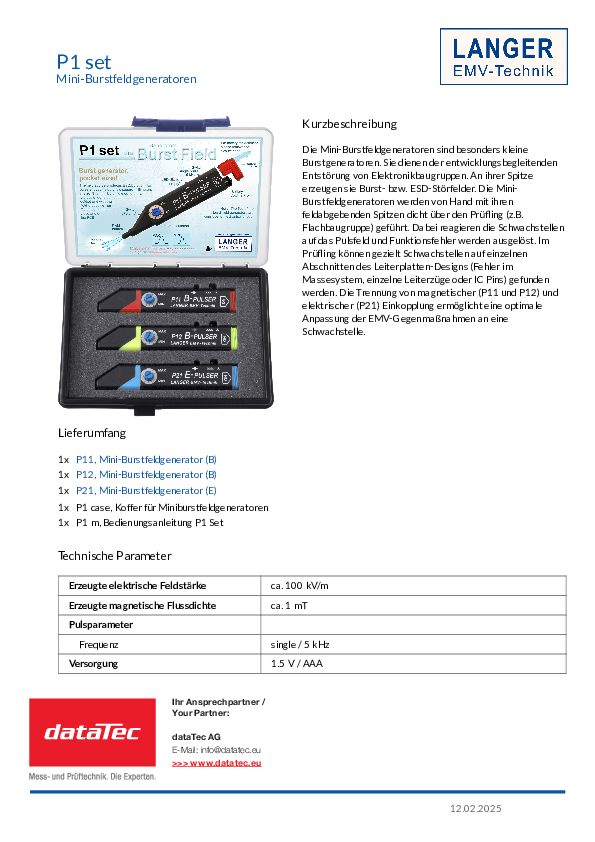

Datasheet

pdf | 0.74 MB

Description

P1 SET | Mini burst field generators

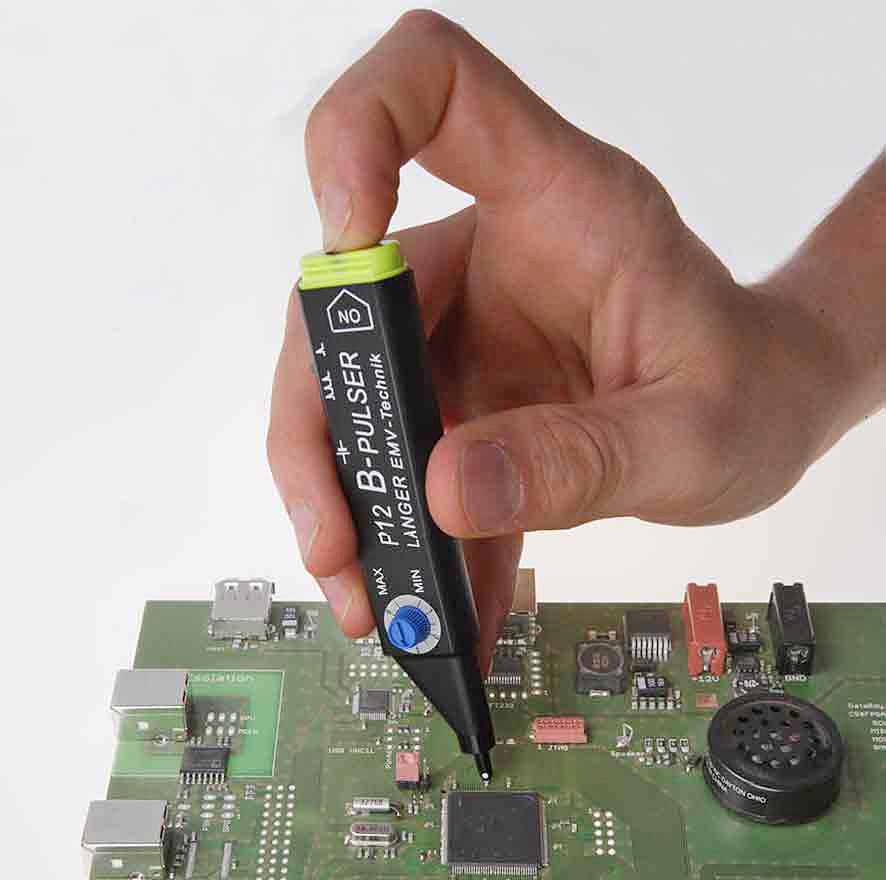

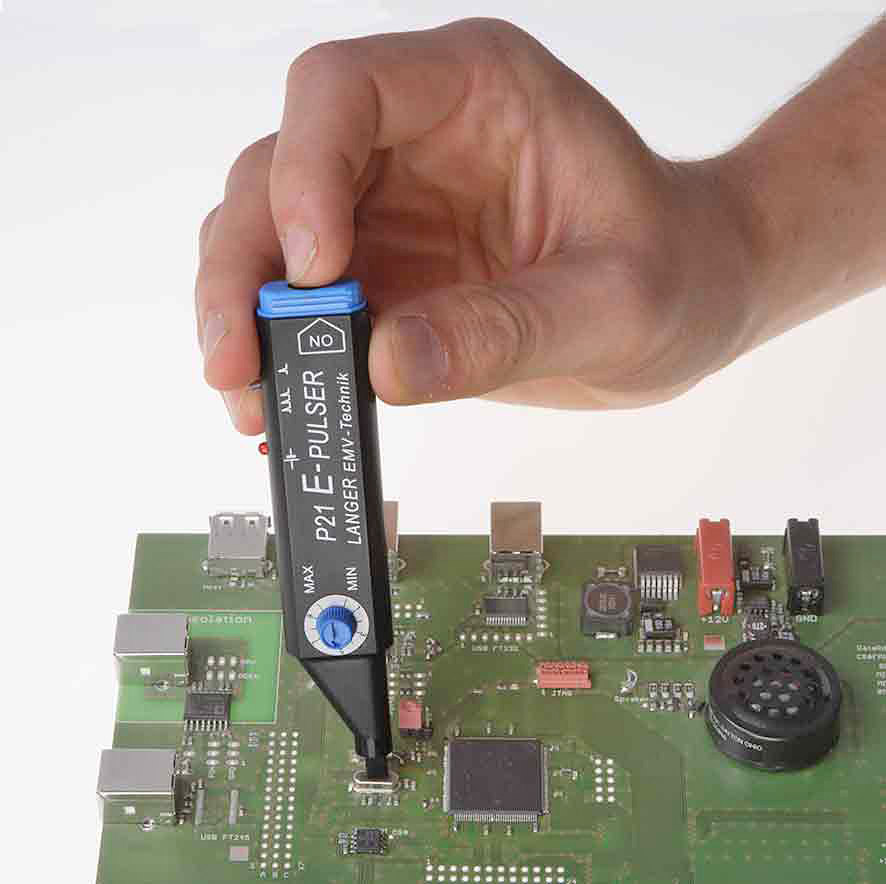

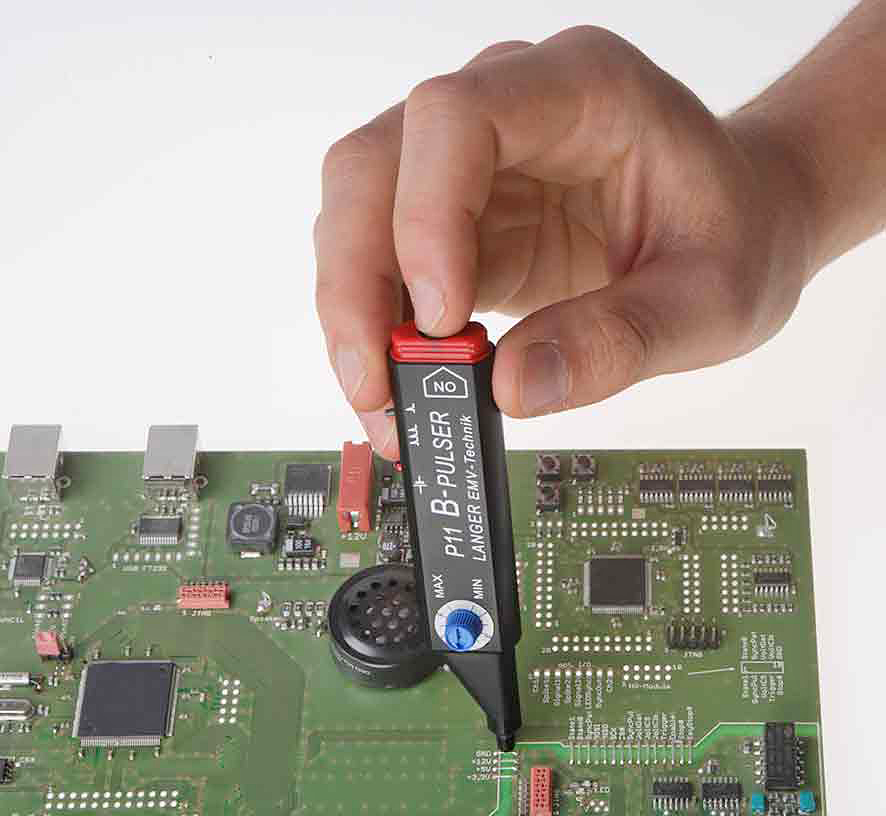

The mini burst field generators are particularly small burst generators. They are used to suppress interference in electronic assemblies during development. They generate burst or ESD interference fields at their tip. The mini burst field generators are guided by hand with their field-emitting tips close to the test object (e.g. printed circuit board). The weak points react to the pulse field and functional faults are triggered. In the test object, weak points can be found specifically on individual sections of the PCB design (faults in the ground system, individual conductor runs or IC pins). The separation of magnetic (P11 and P12) and electrical (P21) coupling enables optimum adaptation of the EMC countermeasures to a weak point.

Lieferumfang

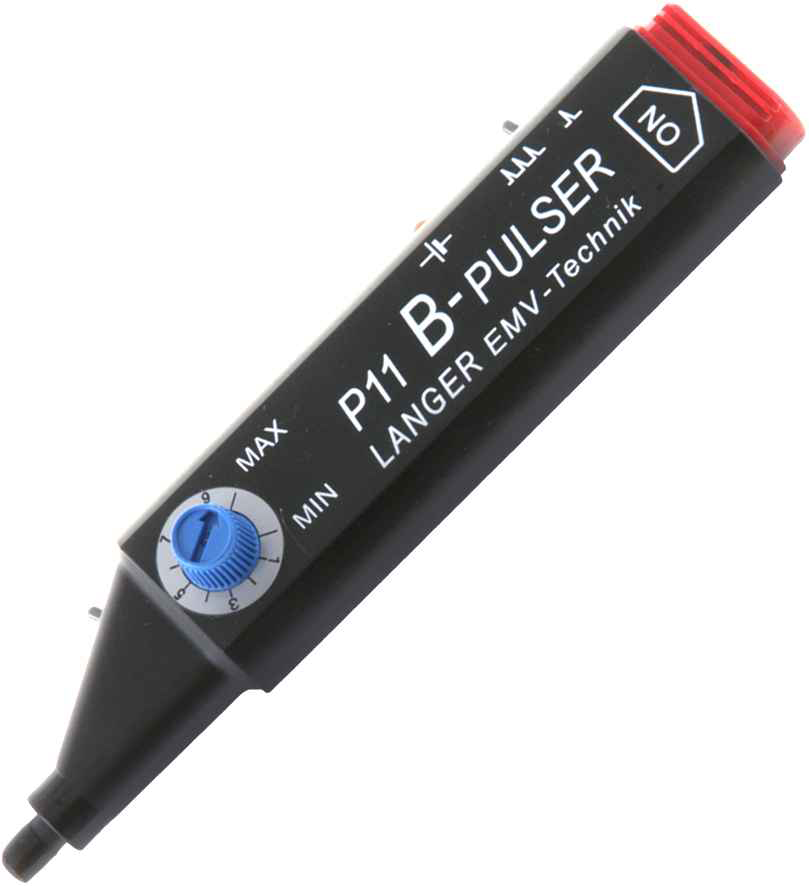

P11, mini burst field generator (B)

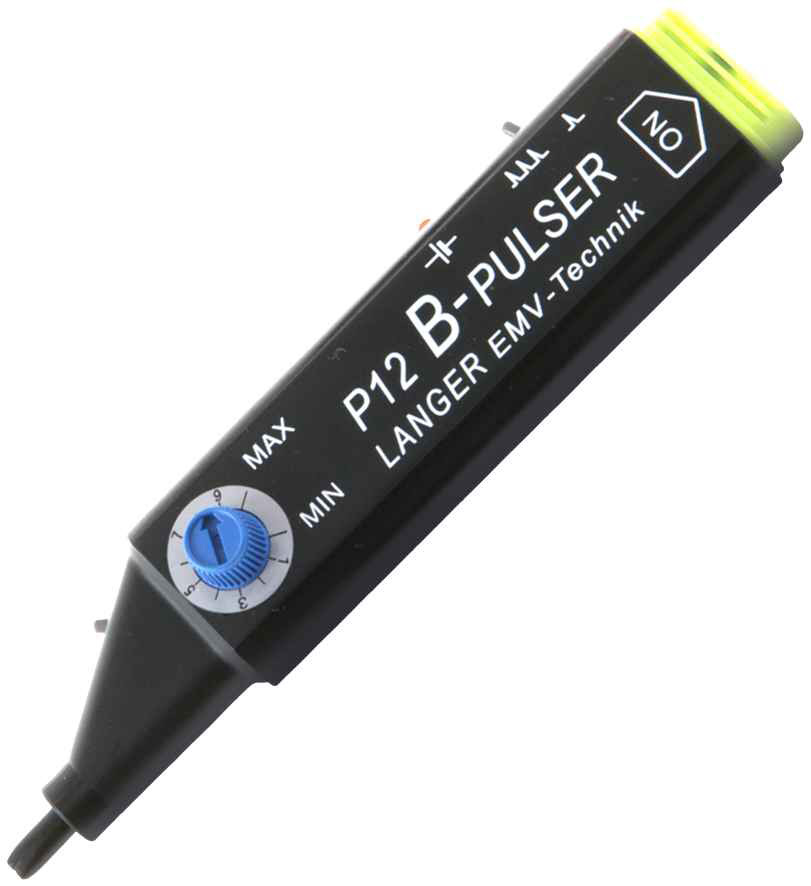

P12, mini burst field generator (B)

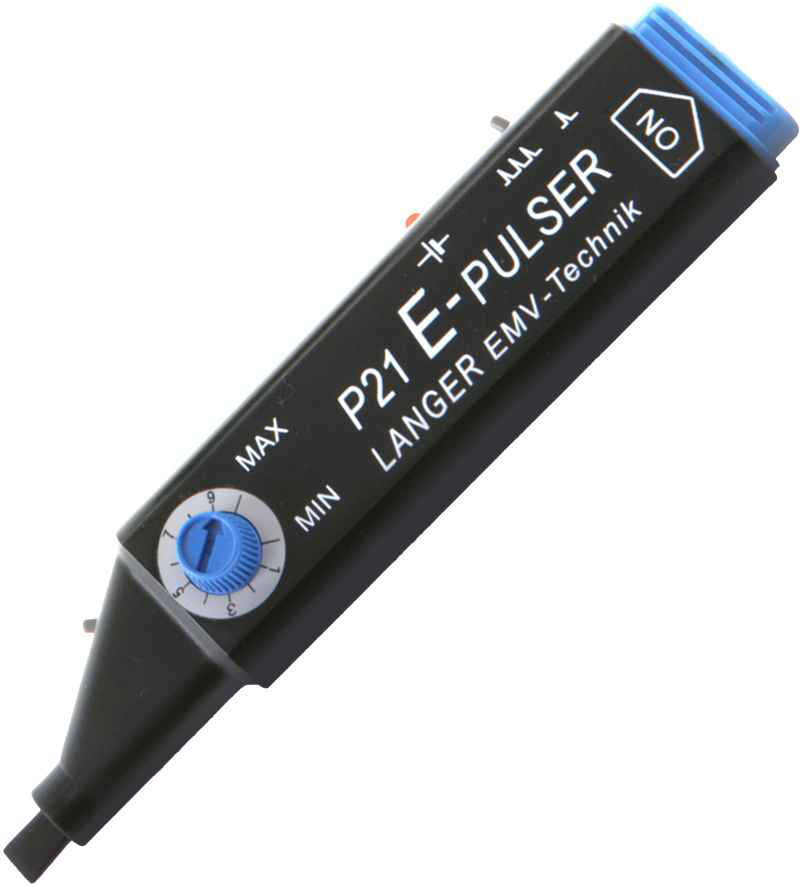

P21, mini burst field generator (E)
Case for mini burst field generators
Operator's manual P1 Set

About the Manufacturer

LANGER

Langer EMV Technik was founded in 1998. The company is one of the top specialists in the field of electromagnetic compatibility (EMC).
