Keysight U2004A | USB power sensor, 9 kHz to 6 GHz, -60 to +20 dBm

Name: U2004A | USB power sensor, 9 kHz to 6 GHz, -60 to +20 dBm
Brand: Keysight
SKU: U2004A
Availability: OutOfStock

Manufacturer number: U2004A

Delivery time upon request

On Request

You would like to request an offer? Please add items to the shopping cart and request an offer there.

Keysight U2004A | 9 kHz - 6 GHz USB HF power measuring head.

Frequency range from 9 kHz to 6 GHz
Wide dynamic range from -60 to +20 dBm
Accuracy (including linearity fluctuations and general measuring head accuracy): 3%
Possibility to set the measuring head to "zero" internally. This avoids external calibration
High measuring speed with up to 250 measurements / s
Presentation of the measured values on the PC or on other Keysight measuring devices (formerly Agilents electronic measuring technology)
Provided software BenchVue (30 days test version) to control the measuring head and to show the measured value on the display
External trigger: TTL level

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

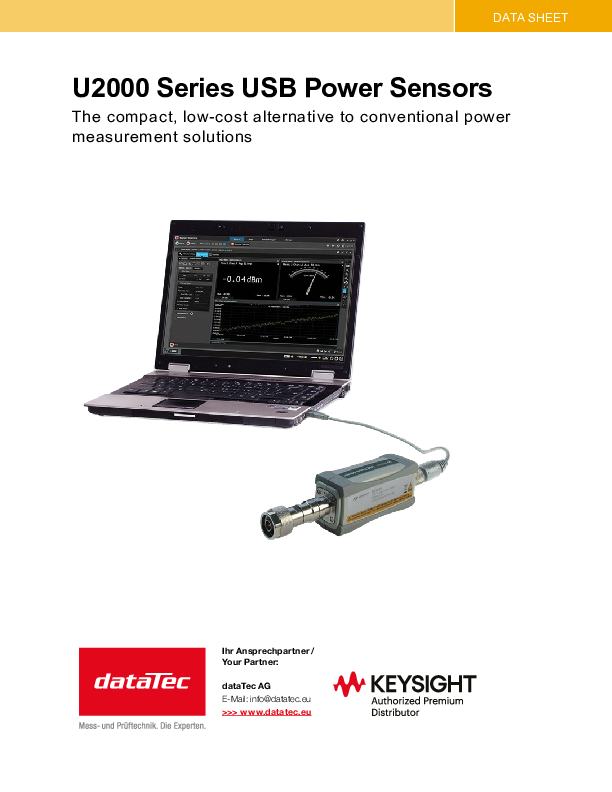

Datasheet

pdf | 2.84 MB

Detaildescription

U2004A | USB power sensor, 9 kHz to 6 GHz, -60 to +20 dBm

With this U2004A measuring head from Keysight (formerly Agilent's electronic measuring technology) you are able to measure RF power in the frequency range from 9 kHz to 3 GHz directly with a PC without an additional power meter. The control of the measuring head and the reading of the measured values are done by the software BenchVue via the USB interface of the PC.

Note:

When you purchase this new device, you will now receive a "Node-Locked" license for the Keysight measurement and analysis app BenchVue for power meters BV0007B free of charge . This is limited to the specific device. The license is not limited in time.

On the Keysight website you will find further information on downloading, registering and activating your BenchVue license: To the Keysight website.

Accessoires (3 products )

Keysight BV9001B

BenchVue full version, PC measurement and evaluation software

Delivery time upon request

On Request

Keysight U2000A-201

Transit case for 4 sensors U2000A series

Delivery time upon request

On Request

Keysight U2000A-202

Carrying bag for outdoor use for U2000A series

Delivery time upon request

On Request

About the Manufacturer

Keysight

dataTec and Keysight Technologies have had a strong partnership since 1999. No other company offers such a wide range of measurement technology, testing solutions, and solutions for our connected world. With Keysight's measuring instruments, you are also well-equipped for today's and tomorrow's tasks.
