Keysight USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s | P9242A

Manufacturer number: P9242A

USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price Share
Highlights Documents / Downloads Description Scope Related Articles

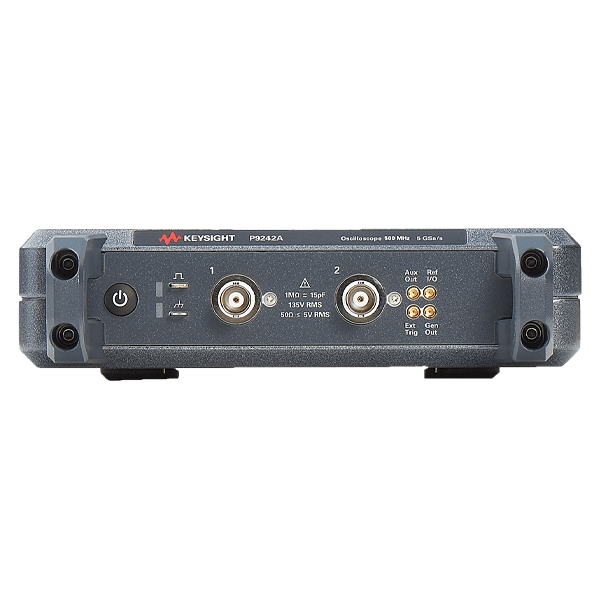

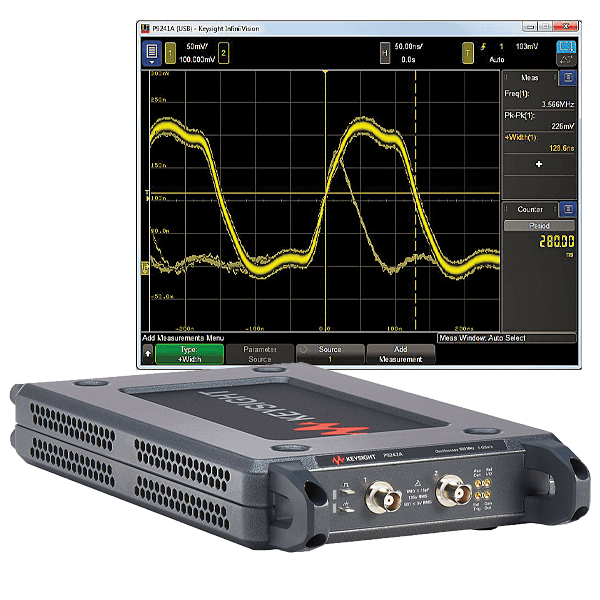

Keysight Streamline P9242A | InfiniiVision USB oscilloscope, 2-channel, 500 MHz, up to 5 GSa / s, 1 million wfm / s, 4 Mpts segmented memory.

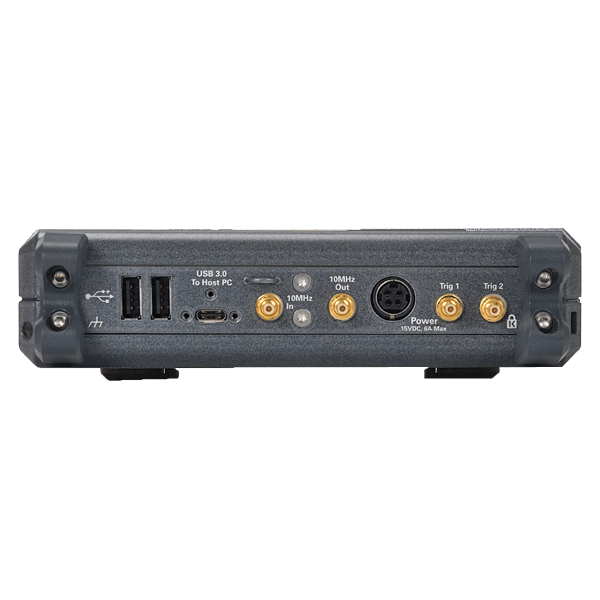

  • 2-channel USB oscilloscope Compact USB design with high-speed connection USB 3.0
  • Bandwidth: 500 MHz
  • Sampling rate: 2.5 GSa / s per channel, 5 GSa / s with half the number of channels (interleaved)
  • Memory depth: 4 Mpts Segmented Memory
  • Signal acquisition rate: ≥ 1 million wfm / s
  • Vertical resolution: 8 bits
  • Over 30 automatic measurement functions
  • Extended trigger options with visualization (Zone Touch and Mask)
  • Bus decoding for I²C, UART, CAN, LIN, CXPI and others
  • Extended FFT: up to 64 kpts resolution, window functions: hanning, flat top, rectangle, Blackman-Harris
  • Integrated device functions: 3-digit digital voltmeter, 8-digit frequency counter, protocol analyzer, spectrum analyzer and 20 MHz arbitrary function generator
  • Input impedance: either 1 MΩ or 50 Ω
  • Weight: 2.5 kg
  • Dimensions: 177 x 50 x 335 mm (W x H x D)
  • 2x passive probe N2843A included
  • Compatible operating systems: Windows 10 (64 bit), Windows 7 SP1 (64 bit)
  • Warranty: 3 years

Documents & Downloads

Datasheet
pdf | 4.27 MB

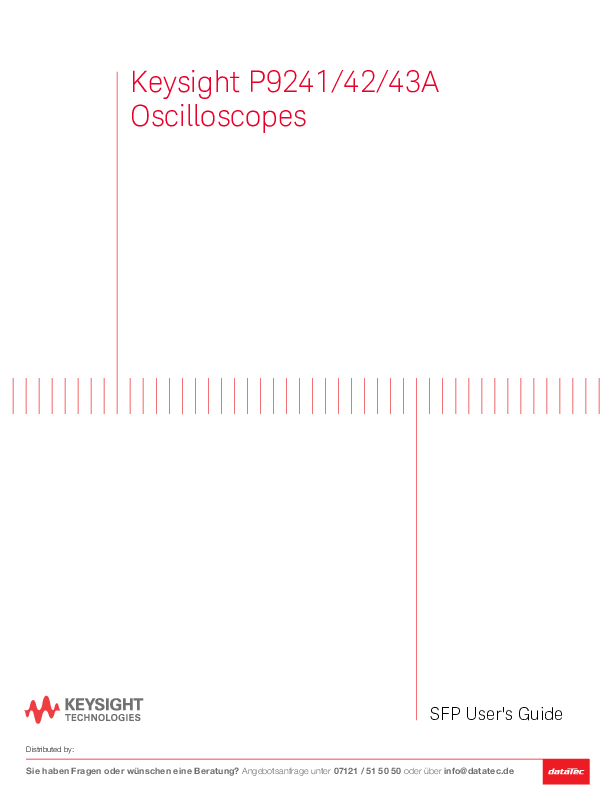

Userguide
pdf | 5.14 MB

Description

USB oscilloscope for PC, 2-channel, 500 MHz, 1 million wfm / s | P9242A

Exceptional performance in a compact design: The new 2-channel USB oscilloscopes of the Streamline series P924xA offer the performance and user-friendliness of the proven InfiniiVision oscilloscopes in a space-saving USB design. Their technology is based on decades of know-how in the development of high-performance oscilloscopes and integrates the functions of six measuring devices.

Six device functions:

  • 2-channel oscilloscope with up to 1 GHz bandwidth and 5 GSa / s sampling rate
  • 3-digit digital voltmeter for compatible use with the oscilloscope probes
  • 8-digit counter for integrated sum and frequency measurements
  • Protocol analysis for I²C, UART, CAN, LIN, CXPI and others
  • Spectrum analysis with FFT and channel power measurements
  • 20 MHz arbitrary function generator

Note:

When you purchase this new device, you will now receive a “Node-Locked” license for the Keysight measurement and analysis app BenchVue for oscilloscopes BV0004B free of charge . This is limited to the specific device. The license is not limited in time.

On the Keysight website you will find further information on downloading, registering and activating your BenchVue license: To the Keysight website.

Measurement applications:

  • Extensive software applications support a variety of measurement requirements
  • Differential and active probes as well as high voltage probes for a variety of applications
  • Over 30 automatic measurement functions for simplified signal analysis
  • Extended trigger options for capturing and analyzing complex signals
  • Visualization of the triggers (zone touch and mask) for quick and easy detection of signal errors
  • Serial protocol analysis for the most common protocols
  • Automatic FFT and math functions for advanced signal analysis
  • Segmentable memory for evaluating 1000 events without having to export the data to a PC

Lieferumfang

contain
  • Compatible operating systems: Windows 10 (64 bit), Windows 7 SP1 (64 bit)
  • Warranty: 3 years
