Keysight N9916D | FieldFox 14 GHz, Handheld Analyzer for RF and Microwave Measurements, FieldFox D-Series

Manufacturer number: N9916D

N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
N9916D
Delivery time upon request

€25,470.00

plus VAT. €30,309.30 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight N9916D | FieldFox 14 GHz, handheld analyzer for demanding RF and microwave measurements, FieldFox D-Series.

Technical Data

Documents & Downloads

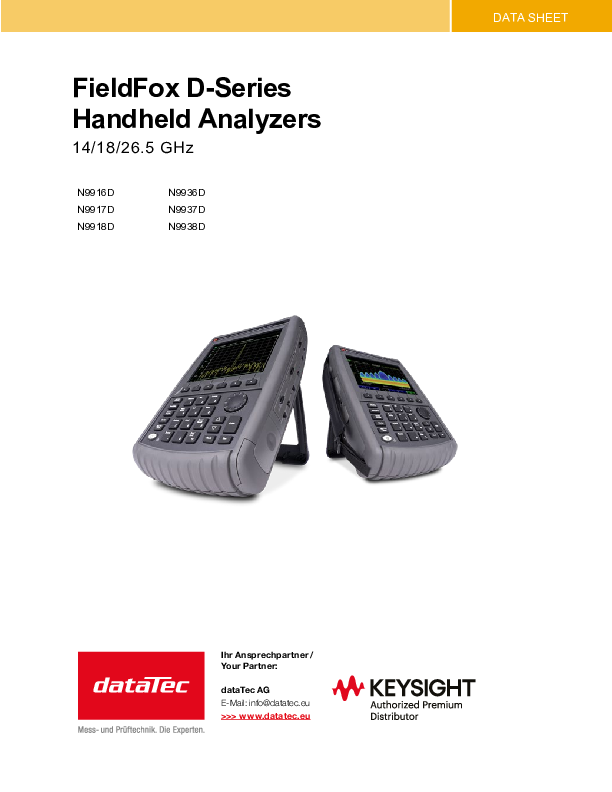

Brochure
pdf | 1.93 MB

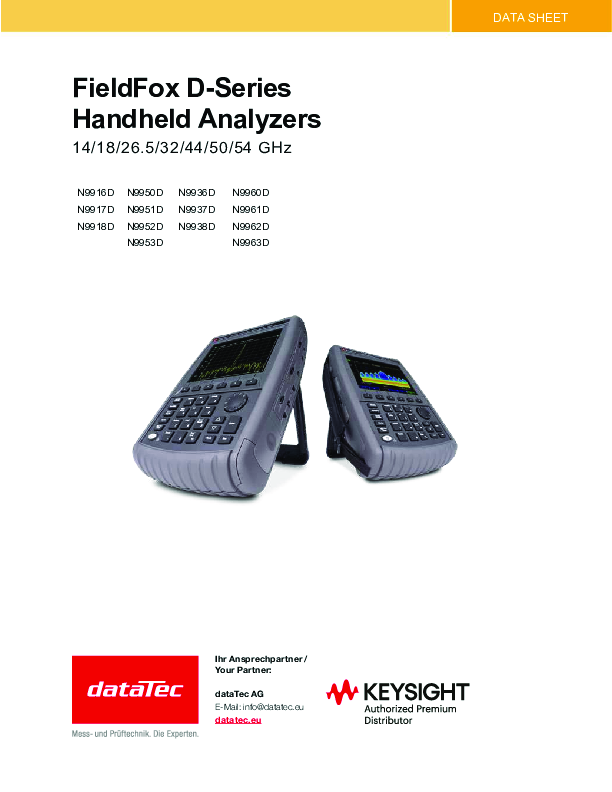

Configuration guide
pdf | 2.01 MB

Description

N9916D | FieldFox 14 GHz, Handheld Analyzer for RF and Microwave Measurements, FieldFox D-Series

The Keysight FieldFox D-Series represents the latest generation of professional handheld analyzers for field use and combines the highest measurement performance with state-of-the-art software-defined radio functionality. The devices cover frequency ranges up to 54 GHz and offer a real bandwidth of up to 120 MHz - ideal for 5G-FR1/FR2 tests, satellite communication, radar, EMC and EMF measurements as well as demanding spectrum analyses in military or industrial environments.

Thanks to the new Linux operating system, users benefit from increased system security, an optimized operating concept and improved remote control. The integrated SFP+ ports (10 GbE) enable ultra-fast, seamless streaming of IQ data - a decisive advantage for real-time analysis, interference management, TDoA/AoA location procedures or AI-supported signal evaluation.

Compared to the Keysight FieldFox C series, the D series sets new standards: It offers higher analysis bandwidths (up to 120 MHz), a modern touch display, high-speed SFP+ interfaces and a completely revised security and operating system concept. While the C series takes a software-defined approach, the D series is clearly geared towards high-frequency applications with advanced demodulation and streaming functions, thus meeting the requirements of current 5G, satellite and radar networks far more comprehensively.

The N9916D model presented here is one of the most versatile models in the D series and combines a broad frequency spectrum with powerful analysis options. It covers typical applications such as 5G deployment, OTA measurements, radar and EW analysis, cable and antenna testing and VNA measurements.

The N9916D offers a maximum frequency of up to 14 GHz. It supports the same advanced IQ streaming and RTSA features as the higher frequency N9917D and N9918D models. The device fully retains the core parameters of the D-Series - such as 120 MHz real-time bandwidth and 120 MHz IQ streaming.

Features of the N9916D:

  • Frequency range up to 14 GHz - ideal for mobile radio, industrial RF applications and many radar and communication tasks
  • 120 MHz RTSA bandwidth - suitable for short pulses, transients and dense spectrum environments
  • 120 MHz gapless IQ streaming over SFP+ (10 GbE)
  • Full VNA functionality (up to 2-port, full S-parameters)
  • Integrated pulse generator (optional) for radar and automotive tests
  • Expandable via software licenses such as OTA-5G, LF measurement, EMF/EMI analysis, TDoA/AoA

Technical product features of the series:

  • Frequency range: 30/300 kHz to 54 GHz (depending on model)
  • Real-time bandwidth: up to 120 MHz (RTSA)
  • IQ streaming: up to 120 MHz, VITA 49 format, streamable via SFP+, USB-C or LAN
  • Operating system: Linux-based for enhanced security
  • Interfaces: 2× SFP+ (10 GbE), USB-C, USB-A, LAN, GPS/GNSS integrated
  • Display: Touchscreen for simplified operation in the field
  • Vector Network Analyzer: 2-port S-parameters, up to 117 dB dynamic range
  • Spectrum Analyzer: Phase noise up to -117 dBc/Hz, DANL up to -163 dBm (with preamplifier)
  • RTSA functions: 100 % POI, detection up to 47 ns of short signals
  • Cable and antenna tests (CAT): DTF, TDR, RL/VSWR, insertion loss measurements
  • OTA measurements: LTE, 5G NR FR1/FR2, beamforming analysis
  • Pulse generator (option): CW, AM/FM, FSK, BPSK, chirp pulses (depending on model up to maximum frequency)
  • GNSS/GPS: Geotagging for measurement data, synchronization for TDoA
  • Streaming compatibility: KSMS, VSA 89600, MATLAB, Python
  • Ruggedness: MIL-STD-810G, IP-protected, up to 4.5 h battery life

Alternate products

N9917D
New
New
Keysight
N9917D
FieldFox 18 GHz, Handheld Analyzer for RF and Microwave Measurements, FieldFox D-Series
Delivery time upon request
€30,288.00
N9918D
New
New
Keysight
N9918D
FieldFox 26.5 GHz, Handheld Analyzer for RF and Microwave Measurements, FieldFox D-Series
Delivery time upon request
€37,172.00
N9936D
New
New
Keysight
N9936D
FieldFox 14 GHz, Handheld RF Signal Analyzer, FieldFox D-Series
Delivery time upon request
€28,912.00
N9937D
New
New
Keysight
N9937D
FieldFox 18 GHz, Handheld RF Signal Analyzer, FieldFox D-Series
Delivery time upon request
€34,420.00
N9938D
New
New
Keysight
N9938D
FieldFox 26.5 GHz, Handheld RF Signal Analyzer, FieldFox D-Series
Delivery time upon request
€39,925.00

Recommendations

N9916D-C3
New
New
Keysight
N9916D-C3
Calibration Plan - Return to Keysight - 3 years for FieldFox N9916D, D-Series
Delivery time upon request
On Request
N9916D-C5
New
New
Keysight
N9916D-C5
Calibration Plan - Return to Keysight - 5 years for FieldFox N9916D, D-Series
Delivery time upon request
On Request
N9916D-R5
New
New
Keysight
N9916D-R5
Extended Warranty - Return to Keysight - 5 years for FieldFox N9916D, D-Series
Delivery time upon request
On Request

Options

N9916D-010
Keysight
N9916D-010
Vector network analyzer time domain for FieldFox N9916D, D-Series
On Request
N9916D-030
Keysight
N9916D-030
Remote control capability for FieldFox N9916D, D-Series
On Request
N9916D-208
Keysight
N9916D-208
USB power sensor measurements versus frequency for FieldFox N9916D, D-Series
On Request
N9916D-209
Keysight
N9916D-209
Extended range transmission analysis (ERTA) for FieldFox N9916D, D-Series
On Request
N9916D-210
Keysight
N9916D-210
Vector network analyzer transmission/reflection for FieldFox N9916D, D-Series
On Request
N9916D-211
Keysight
N9916D-211
Vector network analyzer full 2-port S-parameters for FieldFox N9916D, D-Series
On Request
N9916D-212
Keysight
N9916D-212
1-port mixed-mode S-parameters for FieldFox N9916D, D-Series
On Request
N9916D-215
Keysight
N9916D-215
TDR cable measurements for FieldFox N9916D, D-Series
On Request
N9916D-233
Keysight
N9916D-233
Spectrum analyzer for FieldFox N9916D, D-Series
On Request
N9916D-235
Keysight
N9916D-235
Pre-amplifier for FieldFox N9916D, D-Series
On Request
N9916D-236
Keysight
N9916D-236
Interference analyzer and spectrogram for FieldFox N9916D, D-Series
On Request
N9916D-238
Keysight
N9916D-238
Spectrum analyzer time gating for FieldFox N9916D, D-Series
On Request
