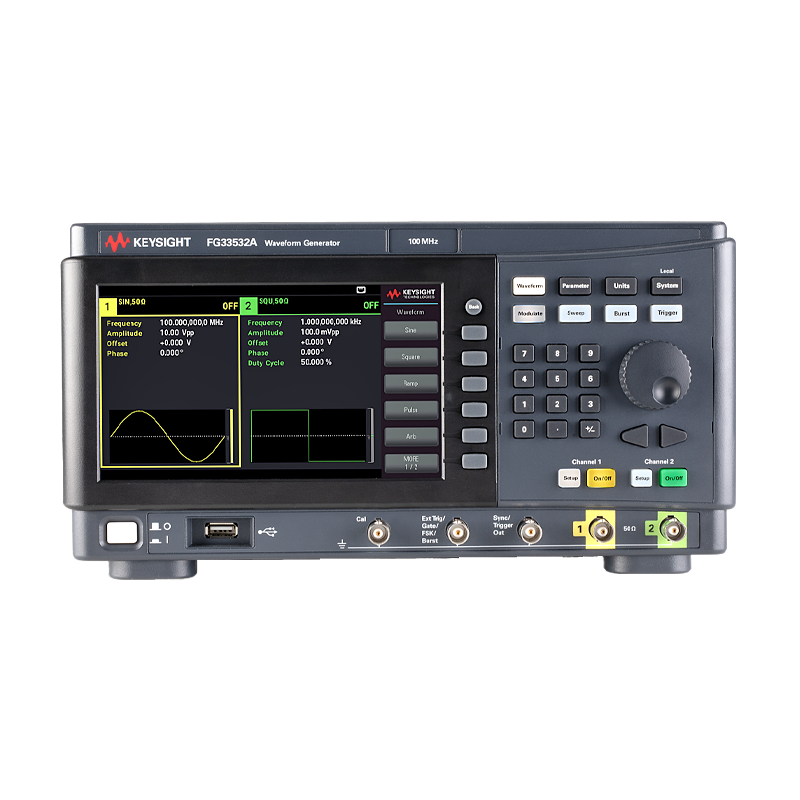

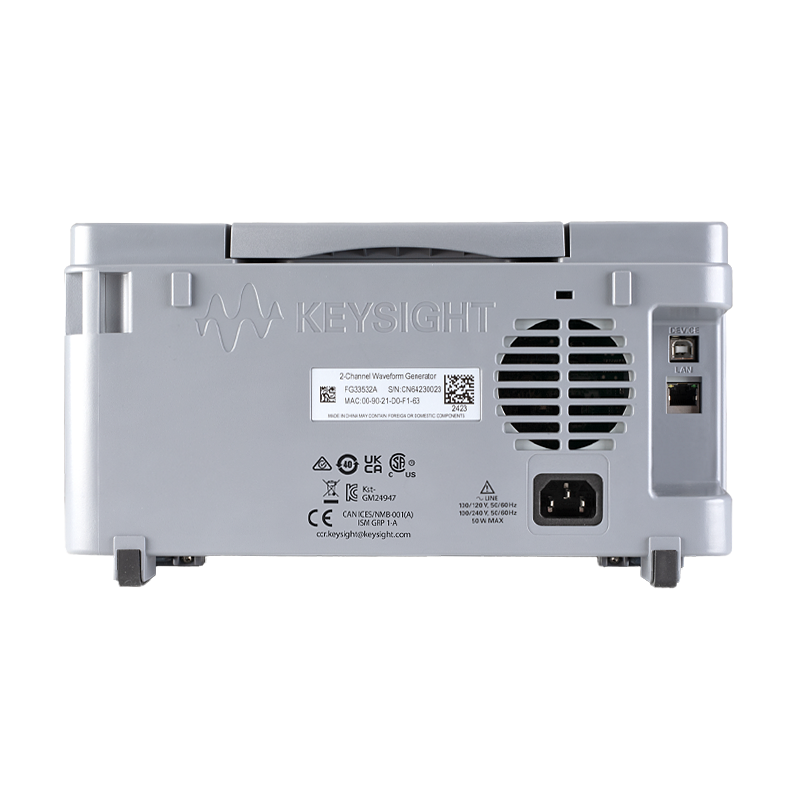

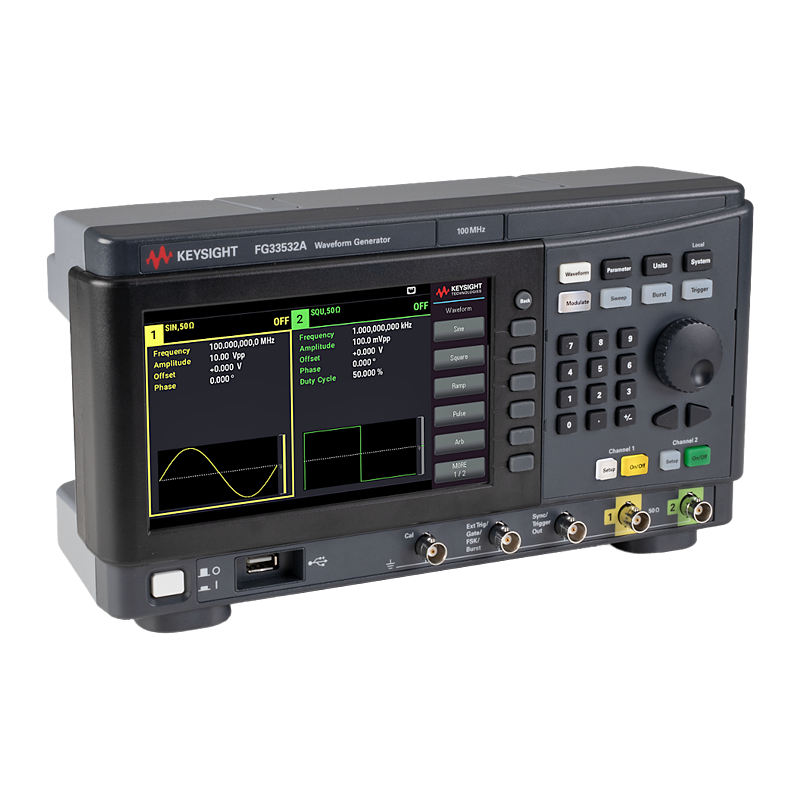

Keysight FG33532A | ARB function generator, 2 channel, 100 MHz

Name: FG33532A | ARB function generator, 2 channel, 100 MHz
Brand: Keysight
SKU: FG33532A
Price: 1990.0 EUR
Availability: InStock

Manufacturer number: FG33532A

Delivery time upon request

€1,990.00

plus VAT. €2,368.10 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

Keysight FG33532A | ARB function generator, 2 channel, 100 MHz.

Product features:

Channels: 2 (independent or coupled)
Maximum frequency: 100 MHz per channel
Output waveforms: Sine, Square, Ramp, Pulse, Triangle, Gaussian Noise, PRBS, DC
Integrated arbitrary waveforms: Cardiac, Exponential Rise/Fall, Gaussian Pulse, Haversine, Lorentz, Sinc and many more
Memory: 8 MSa per channel, expandable to 16 MSa
Sample rate: 1 µSa/s to 320 MSa/s
Resolution: 16 bit
Modulation types: AM, FM, PM, FSK, BPSK, PWM
Relative phase: 0° to 360°, 0.1° resolution
Jitter: < 50 ps
THD: < 0.06%
Crosstalk: < -75 dB
Display: 7-inch color LCD with dual-channel display
Communication: USB, LAN, support for SCPI and IVI
Dimensions: 314 mm (W) x 130 mm (H) x 165 mm (D)
Weight: approx. 3.1 kg
Operating temperature: 0 °C to 55 °C
Output voltage: 1 mVpp to 10 Vpp (50 Ω)
DC offset: ±(5 V - Peak AC) at 50 Ω
Trigger sources: Internal, external, manual, bus
Burst types: Counted, triggered
Sweep types: Linear, logarithmic, list sweep (up to 128 frequencies)
Mains connection: 100-240 V, 50/60 Hz, < 45 W power consumption

Technical Data

Arbitrary amplitude resolution:	16-bit
Arbitrary function:	Yes
Arbitrary sampling rate:	8 MSa/s
Article number:	FG33532A
Burst:	Yes
Dimensions (L x W x H) (mm):	165 x 314 x 130
Display:	7" Farbdisplay
Frequency range pulse:	1 μHz - 30 MHz
Frequency range rectangle:	1 μHz - 30 MHz
Frequency range triangle/ramp:	1 μHz - 200 kHz
Interfaces:	USB, LAN
Model:	FG33532A
Modulation types:	AM, FM, PM, FSK, BPSK, PWM
Number of channels:	2
Special features:	Overload protection of the outputs
Sweep:	Linear, logarithmisch oder list
Waveforms:	Sinus, Rechteck, Rampe, Puls, Dreieck, Gaußsches Rauschen, Pseudozufällige Binärsequenz (PZBS), Gleichstrom
Weight (kg):	3.1
max. Frequency sine (MikroHz):	100
min. Frequency sine (MikroHz):	1

Description

FG33532A | ARB function generator, 2 channel, 100 MHz

The Smart Bench Essentials Plus FG33530 series from Keysight offers high-precision function and arbitrary waveform generators with a bandwidth of up to 100 MHz. It is aimed at professionals in development, research, education and production who require a powerful, flexible signal source. The series integrates functions such as modulation, frequency sweep and burst modes as well as a large selection of standard and arbitrary waveforms.

Thanks to trueform technology, the devices generate extremely precise signals with low jitter (< 50 ps) and low distortion (< 0.06% THD). With a sample rate of up to 320 MSa/s, 16-bit resolution and an optional upgradeable memory depth of up to 16 MSa per channel, the generators are ideal for complex signal analyses. The intuitive user interface on the large color display and a wide range of connection options (USB, LAN, SCPI) round off the package.

The FG33532A is the two-channel version of the FG33530 series. It offers all the functions of the single-channel FG33531A model, with the addition of the ability to provide two fully independent or synchronized output channels.

The two channels enable complex signal applications such as differential signaling, summing and tracking modes as well as multi-channel measurements. In addition, relative phase shifts can be defined and multi-channel sweeps can be realized - ideal for testing multi-signal systems, communication hardware or mixed-signal circuits.

Compared to the FG33531A, the FG33532A:

Two simultaneous output channels instead of one
Options for coupled or differential signal generation
Relatively adjustable phasing between channels
Lower channel-to-channel delay (< 0.8 ns skew)
