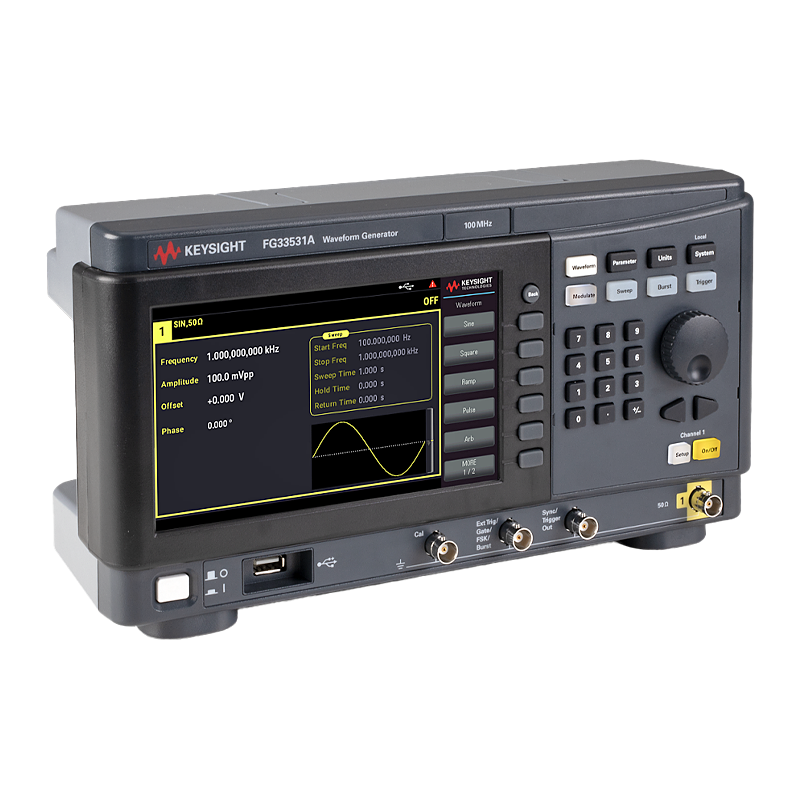

Keysight FG33531A | ARB function generator, 1 channel, 100 MHz

Name: FG33531A | ARB function generator, 1 channel, 100 MHz
Brand: Keysight
SKU: FG33531A
Price: 1593.0 EUR
Availability: InStock

Manufacturer number: FG33531A

4 in stock. Ready to ship in 1 business day

€1,593.00

plus VAT. €1,895.67 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

Keysight FG33531A | ARB function generator, 1 channel, 100 MHz.

Product features:

Channels: 1
Maximum frequency: 100 MHz
Output waveforms: Sine, Square, Ramp, Pulse, Triangle, Gaussian Noise, PRBS, DC
Integrated arbitrary waveforms: Cardiac, Exponential Rise/Fall, Gaussian Pulse, Haversine, Lorentz, Sinc and many more
Memory: 8 MSa per channel, expandable to 16 MSa
Sample rate: 1 µSa/s to 320 MSa/s
Resolution: 16 bit
Modulation types: AM, FM, PM, FSK, BPSK, PWM
Jitter: < 50 ps
Total Harmonic Distortion (THD): < 0.06%
Display: 7-inch color LCD for clear display and operation

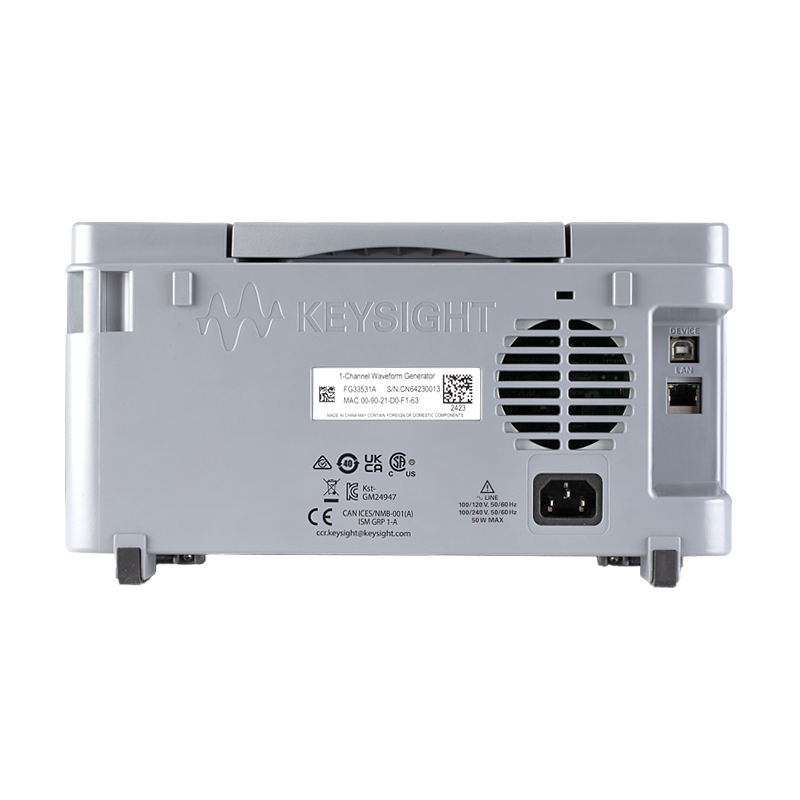

Communication: USB, LAN, support for SCPI and IVI
Dimensions: 314 mm (W) x 130 mm (H) x 165 mm (D)
Weight: approx. 3.1 kg
Operating temperature: 0 °C to 55 °C
Voltage range output: 1 mVpp to 10 Vpp (50 Ω)
DC offset: ±(5 V - Peak AC) at 50 Ω
Trigger sources: Internal, external, manual, bus
Burst types: Counted, triggered
Sweep types: Linear, logarithmic, list sweep (up to 128 frequencies)
Mains connection: 100-240 V, 50/60 Hz, < 45 W power consumption

Technical Data

Arbitrary amplitude resolution:	16-bit
Arbitrary function:	Yes
Arbitrary sampling rate:	8 MSa/s
Article number:	FG33531A
Burst:	Yes
Dimensions (L x W x H) (mm):	165 x 314 x 130
Display:	7" color display
Frequency range pulse:	1 μHz - 30 MHz
Frequency range rectangle:	1 μHz - 30 MHz
Frequency range triangle/ramp:	1 μHz - 200 kHz
Interfaces:	USB, LAN
Model:	FG33531A
Modulation types:	AM, FM, PM, FSK, BPSK, PWM
Number of channels:	1
Special features:	Output overload protection
Sweep:	Linear, logarithmic or list
Waveforms:	Sine, square, ramp, pulse, triangle, Gaussian noise, pseudo-random binary sequence (PZBS), direct current
Weight (kg):	3.1
max. Frequency sine (MikroHz):	100
min. Frequency sine (MikroHz):	1

Description

FG33531A | ARB function generator, 1 channel, 100 MHz

The Smart Bench Essentials Plus FG33530 series from Keysight is a family of high-performance function and arbitrary waveform generators with a bandwidth of up to 100 MHz. It is aimed at developers, test technicians and engineers who require precise and flexible signal sources for research, development, testing and validation of electronic circuits.

The devices in this series offer functions such as modulation (AM, FM, PM, FSK, BPSK, PWM), frequency sweep, burst modes and a comprehensive library of predefined and user-defined waveforms. Thanks to the Trueform technology, the generators produce very accurate and distortion-free signals with a resolution of 16 bits and a sample rate of up to 320 MSa/s.

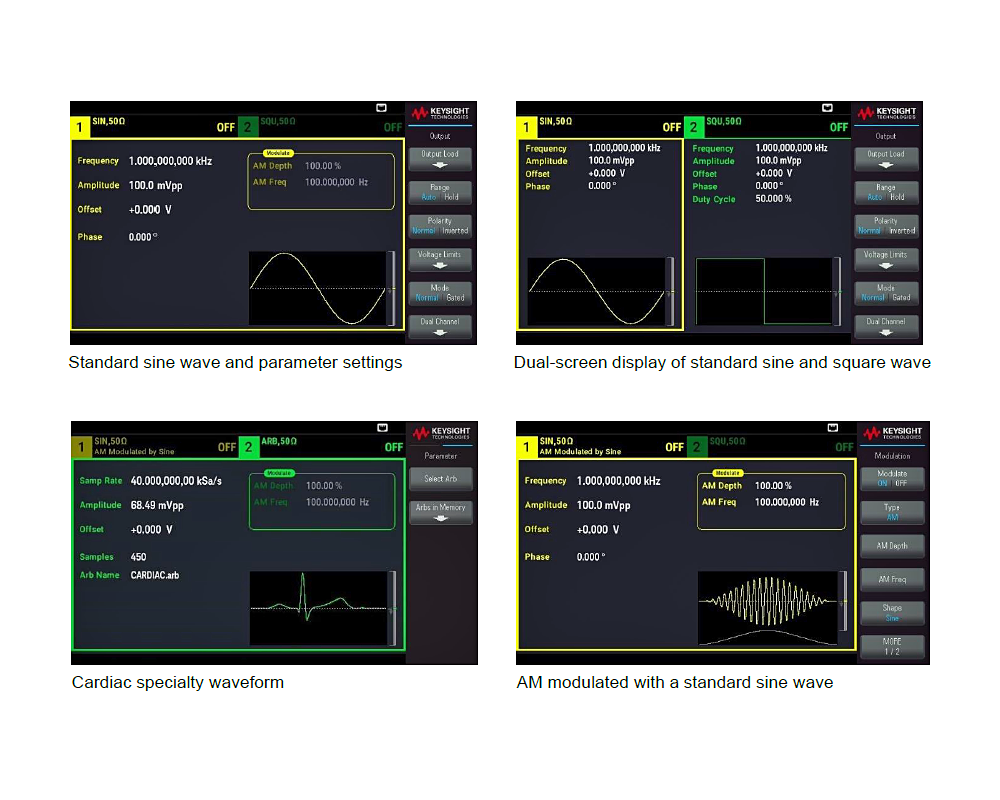

The devices are equipped with an intuitive user interface on a 7-inch color display and support USB and LAN connectivity including SCPI commands and remote control via the PathWave BenchVue software. Ideally suited for laboratory applications, research and teaching, measurement technology as well as development and production.

The FG33531A is the single-channel version of the series. It offers the same functions as its two-channel sister model (FG33532A), but with a single output channel. This makes the FG33531A particularly suitable for applications where only one output signal is required - for example for simple stimulation tasks, testing individual signal paths or for signal generation in cost-sensitive projects.

Compared to the FG33532A (2-channel model), the FG33531A does not have dual signal outputs, which means that functions such as differential signal modulation, cross-channel synchronization or multi-channel summation are no longer required. In return, it offers the same performance with easier handling and reduced space and cost requirements.
