Keysight DAQM910A | 20-channel low-voltage multiplexer for data logger DAQ970A/DAQ973A.

Product features:

Sampling: 2- and 4-wire
Number of measuring channels: 20
Maximum supported voltage: 40 V peak
Automatic voltage safety monitoring: yes
Sampling speed: 80 ch/s
Built-in thermocouple reference junction: yes

Technical Data

Weight (kg):	0.2

Description

DAQM910A | 20-channel low-voltage multiplexer for DAQ970A/DAQ973A data loggers

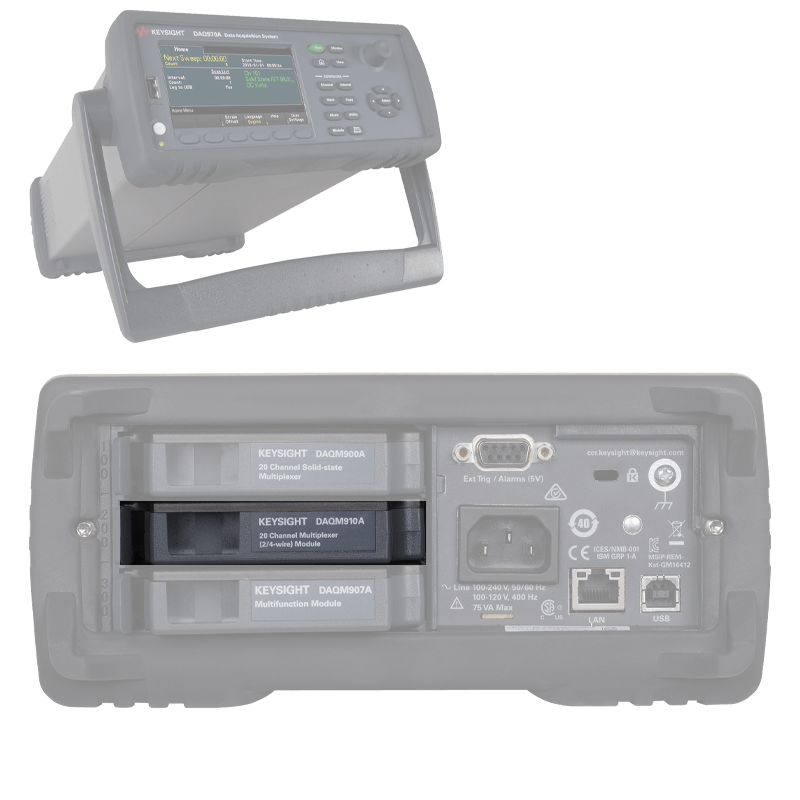

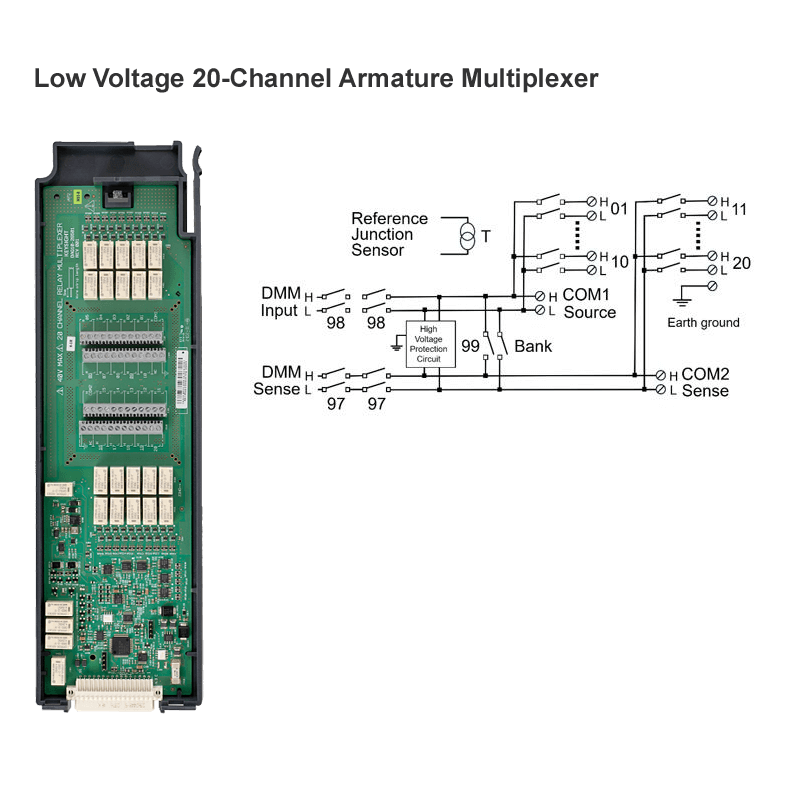

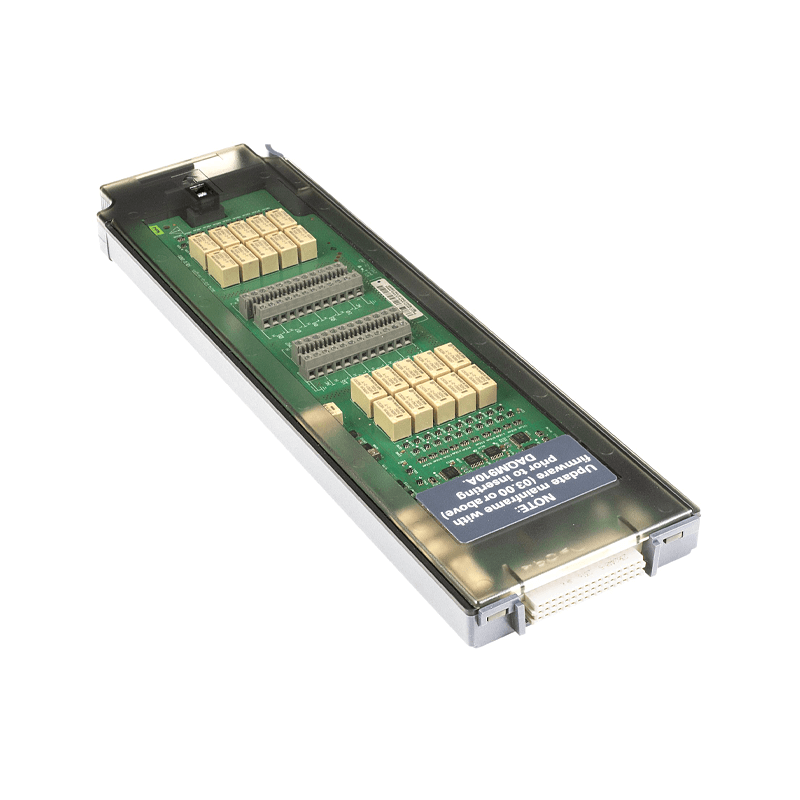

The Keysight DAQM910A is a 20 channel low voltage multiplexer module for the DAQ970A and DAQ973A data loggers. It combines dense, multifunction switching with a sampling rate of 80 channels per second to cover a wide range of low voltage data acquisition applications. Two- and four-wire measurements can be combined on the same module. The module has an integrated temperature reference point to minimize errors when measuring thermocouples due to temperature gradients.
